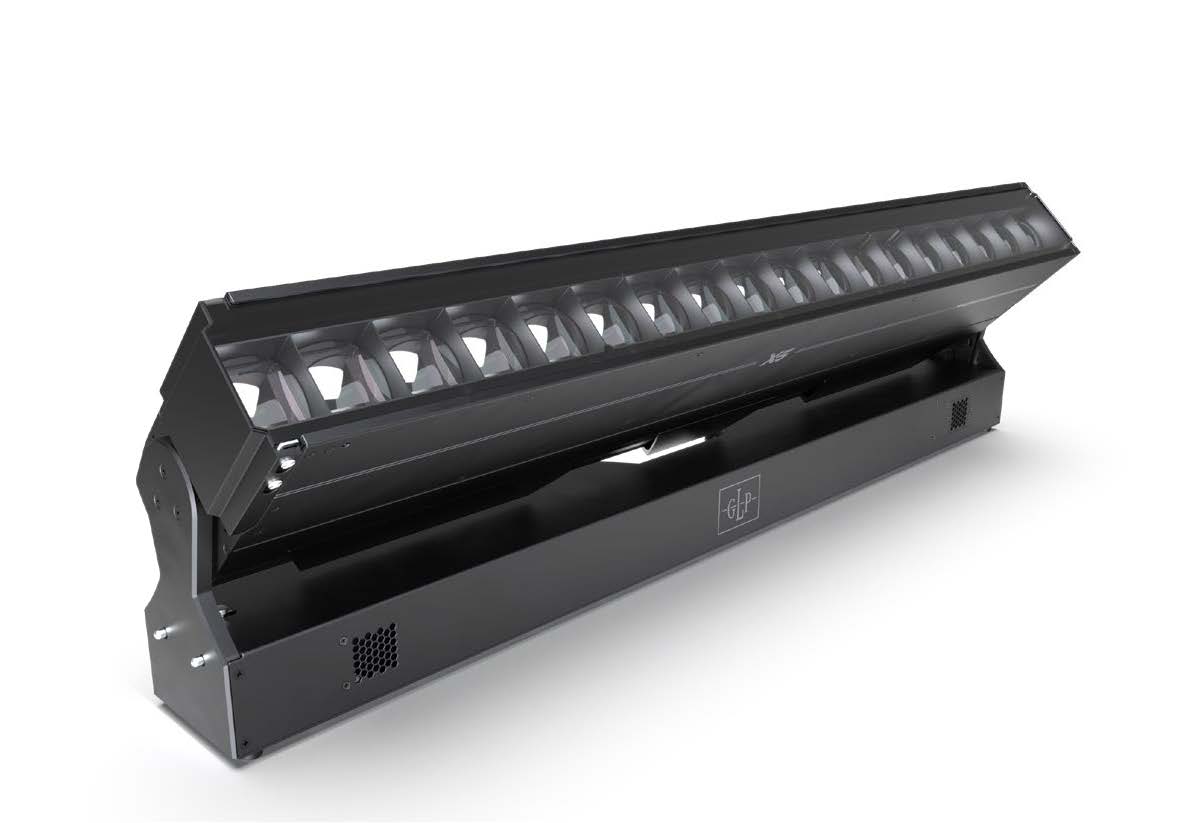

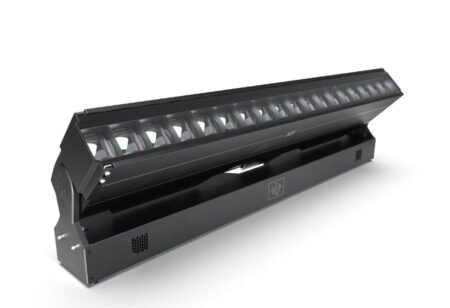

The GLP impression X5 Bar is a linear LED batten with 18 powerful 40 W RGBL LED’s, a wide zoom range, and the new GLP iQ.Gamut color calibration algorithm that creates perfect white spectrums with excellent color rendering.

A new squared lens design ensures maximum lumen efficiency and gives an unprecedented curtain of light at its narrowest angle of just 3.5°, and delivering smooth and homogenous washes all the way out to its widest 60° wash.

As a part of the new GLP X5 family it offers a wide feature package, including selectable calibrated white points, a tungsten simulation channel, magenta/green correction, virtual color wheel and variable CTC, along with twin layer effects with plenty of dynamic pattern macros.

The impression X5 Bar offers our patented fast tilt movement in combination with seamless pixel pitch across fixtures, and features wired and wireless control as standard.

Light Source

  • Type RGBL LED
  • Light Source Count – 18
  • Light Source Power – 18x 40 W
  • Light Source Lifetime – 50,000 hrs
  • LED Refresh Rate – Low, Optimal (Default), High 1, High 2, Max
  • CCT – 6,500K
  • CRI (Ra) – 6,500 K: 90 | 3,200 K: 85
  • TLCI – 6,500 K: 90 | 3,200 K: 75
  • TM-30-15156,500 K: Rf/Rg: 87/105 | 3,200 K: Rf/Rg: 85/110
  • Duv – Perfect white point matches with low Duv values



Optical System

  • Output – 7,500 lumens
  • Min. Zoom – 3.5°
  • Max. Zoom – 60°
  • Zoom Ratio – 1:17
  • Output Lens Diameter – 0.7 x 1.9 in. x 1.9 in. (square)



Effects

  • Dimmer – 0 – 100%; 16 bit
  • ShutterStrobe, Pulse, Sparkle, etc.
  • Color Mixing –
    • RGB
    • RAW
    • x;y
  • Color Mix Priority – Different layer priority settings
  • CTC (Color Temperature Control)2,500 – 10,000 K
  • CQC (Color Quality Control)
    • High Output (HO)
    • High Quality (HQ)
    • Desaturation
  • Magenta/Green-Shift – Yes
  • Tungsten Simulation 8x linked to fix CCT, 8x relative to color mix
  • Color Wheel – Virtual Color Wheel, 64 LEE referenced colors
  • Pattern Effects50 dynamic pattern macros with special effects
  • Tilt Movement Angle205°, 16 bit
  • Zoom – Extremely fast zoom mechanics



Control

  • DMX Channels – M1: 20 / M2: 33 / M3: 48 / M4: 84 / M5: 63 / M6: 81
  • Control Modes
    • M1: Basic / M2: Normal / M3: Segment / M4: Multipix Advanced / M5: Multipix Comressed / M6: Multipix
    • Compressed RGBL
  • Protocol –
    • DMX (USITT DMX512-A)
    • RDM (ANSI/ESTA E1.20)
    • Art-Net
    • sACN(coming soon)
    • iQ.Mesh
    • optional: Lumenradio CRMX @ FPO
  • Setting and Addressing
    • Control panel with backlit graphic display
    • 4 Button Menu Navigation
    • DMX
    • RDM
    • iQ.Mesh
    • NFC via iQ.Service App
  • Software Update
    • DMX link
    • via DProg
    • iQ.Mesh
    • Fixture2Fixture Push(coming soon)
  • High-res Channels
    • Intensity Global
    • Tilt
    • Colormix
  • Performance Modes –
    • Fast
    • Normal (balanced)
    • Smooth
  • Dimming Curves –
    • Linear
    • Soft
    • S-Curve
  • Fan Modes –
    • Regulated
    • High
    • Medium
    • Low
    • Off
  • Subfixture Mode –
    • Normal
    • Independent
  • White Points –
    • Optional: 8,000 K; 5,600 K; 4,200 K; 3,200 K
  • Others –
    • Stand Alone 1 captured Scene
    • Art-Net/sACN Node(coming soon)
    • Data Conversion
    • iQ.Mesh
    • FPO (Flexible Protocol Option)
    • SW Fixture2Fixture Push



Connectors

  • Signal connection –
    • XLR 5-Pin
    • In/Out
    • Neutrik etherCON port A & B (failsafe)
  • Power input –
    • Neutrik powerCON TRUE1
    • In/Out



Electrical Specifications

  • Power input –
    • 100 – 240 VAC / 50 – 60Hz
  • Power supply –
    • auto-ranging electronic switch-mode
  • Power supply cable –
    • US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft
    • EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
  • Max. power (@230V)750 W



Thermal Specifications

  • Cooling –
    • combined convection and forced air
  • Max. ambient temperature (Ta max.)45 °C / 115 °F
  • Min. ambient temperature (Ta min.)5 °C / 40 °F
  • Total heat dissipation (calculated, +/-10%)2.600 BTU/h



Mounting Options

  • Mounting –
    • 2 eyelets for safety cable
    • 4 pairs of 1/4-turn locks for two rigging/installation brackets
  • Orientation –
    • any
  • Location –
    • Indoor permanent
    • Outdoor temporary



Construction

  • Housing Color –
    • Black
  • Housing Material –
    • high-impact flame-retardand thermoplastic
    • Aluminum
    • steel metal plates
  • Protection Rating –
    • IP 20
  • Construction Features –
    • handgaps for carrying
    • Tilt-Lock-System
    • Alignment System
    • threads for external accessory
    • Smart Slide-In Filter System



Dimensions

  • Height – 11.65 in. / 296 mm
  • Width (across yoke) – 39.4 in. / 1,000 mm
  • Length – 4.33 in. / 110 mm



Net Weight

  • Weight46.5 lbs. / 20.1 kg
