JDC@x

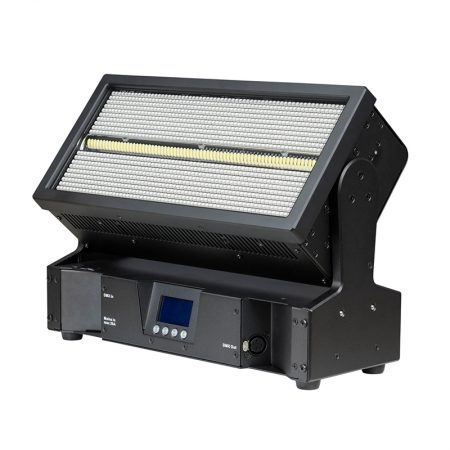

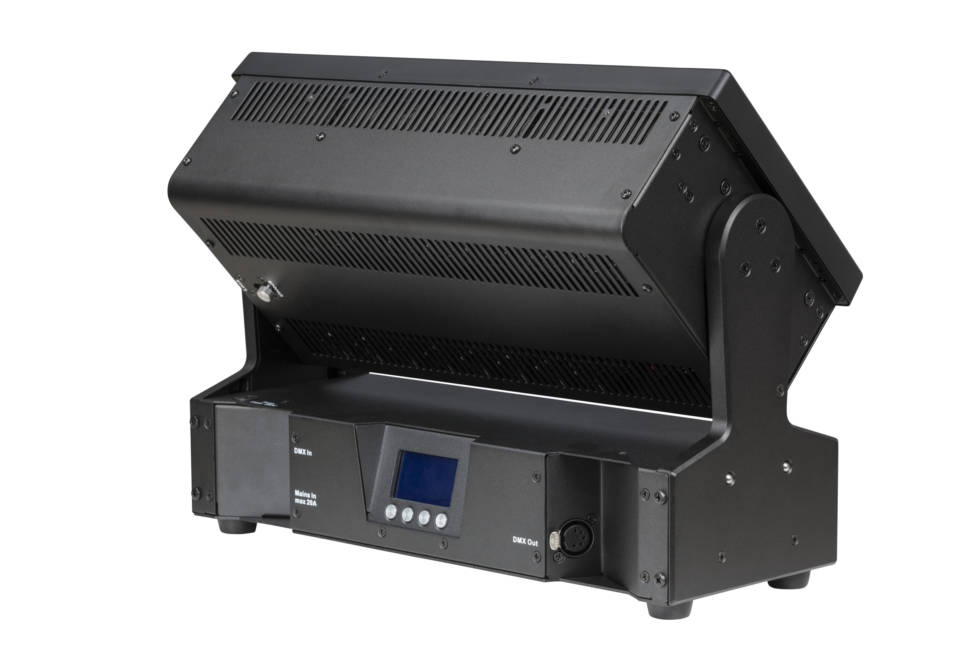

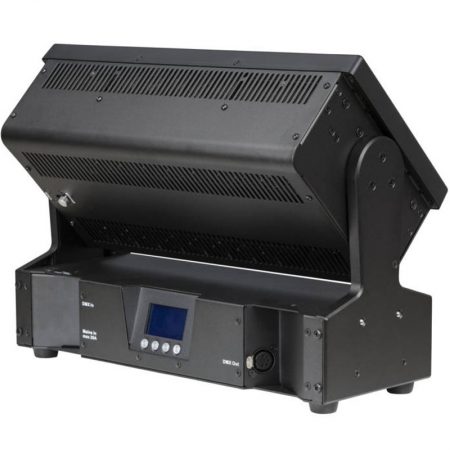

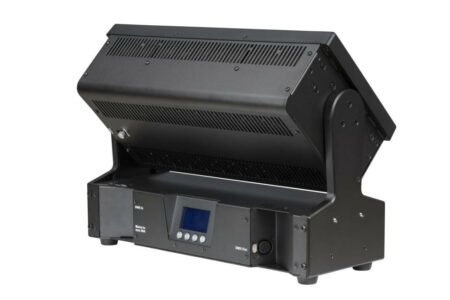

When you look for a strobe, you look for power, and the award winning JDC1 from GLP delivers power in excess. Through a versatile and highly creative design, the likes of which has never been seen before. The JDC1 is a whole new class of strobe that offers an incomparable feature set. Going way beyond the definition of a hybrid. The JDC1 is hybrid redefined.

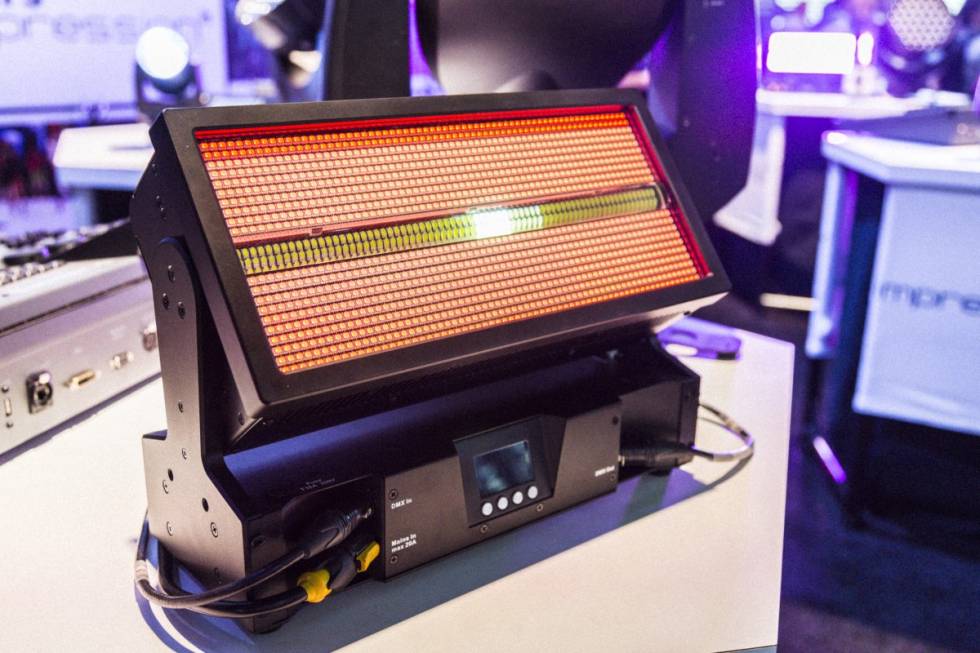

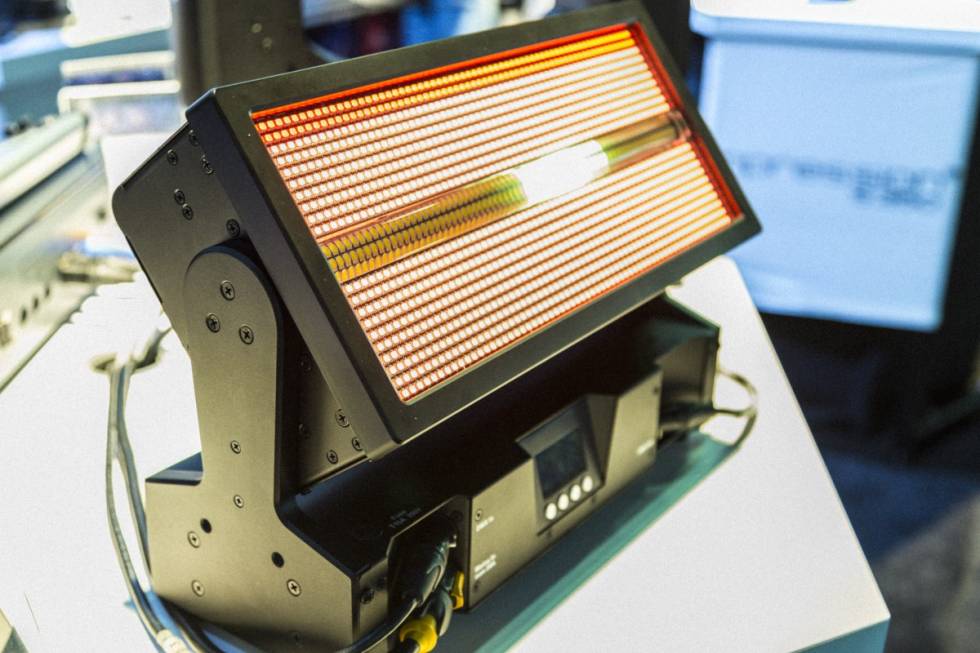

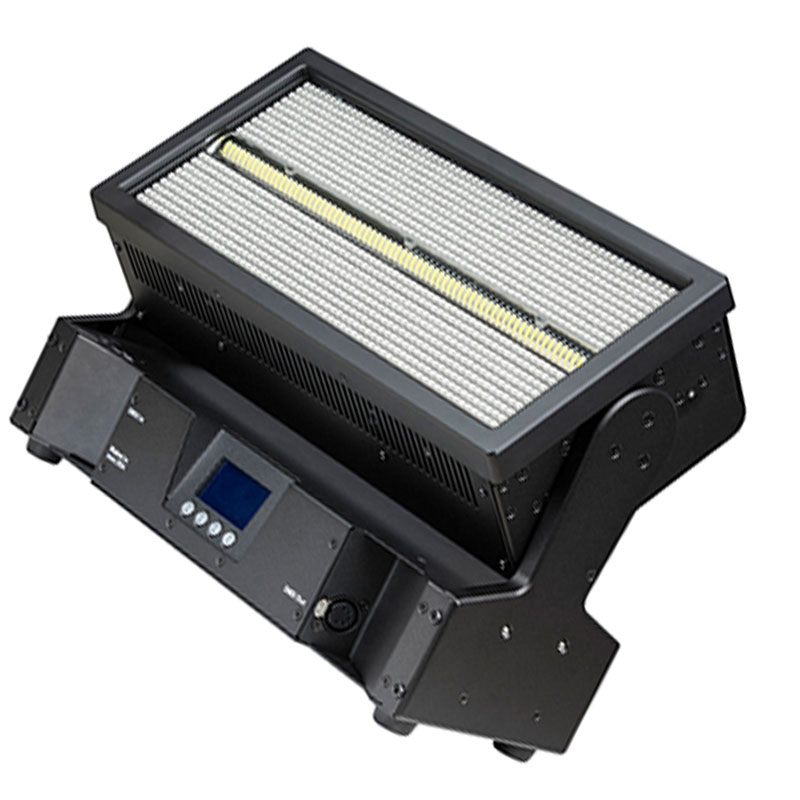

The JDC1 contains a traditional single tube element created with LEDs that produce an incredible clear, bright white output. This is then combined with a surrounding full face of RGB power, utilizing a large array of complimentary LED sources. The possibilities are endless as these two elements have independent control and can be used as separate pieces, or combined for stunning effects. An added ‘Aggressive Mode’ allows even more intense and super bright output across the central white light tube at the touch of a button.

Along with working as a powerful strobe light, both the tube and the full face sections can be run continuously for high output blinder and wash light effects.

To give even more functionality, the RGB face can be divided into 12 separate ‘pixel’ sections. The bright white tube can then also be divided into 12 sections and the whole array can be fully pixel mapped through any standard controller.

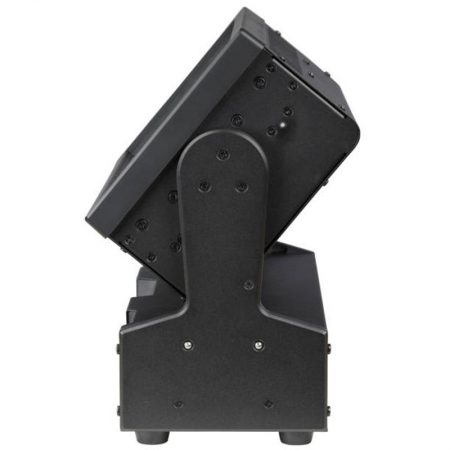

The JDC1 also features dynamic movement with a 16 bit, 185° tilt range, allowing you to place effects exactly where and when you want them to be, while also getting the best possible power and impact.

The JDC1 is a whole new class of strobe that offers an incomparable feature set going way beyond the definition of a hybrid.

The JDC1 is hybrid redefined.





Contact us for more information on the JDC1 Strobe
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Light Source

  • Dual mode – high powered white tube LEDs surrounded by RGB plates



Control

  • Display
    • Illuminated graphic LCD
    • Self charging buffer battery
  • Protocol
    • DMX-512
  • Cooling
    • Temperature controlled
    • Overheating protection

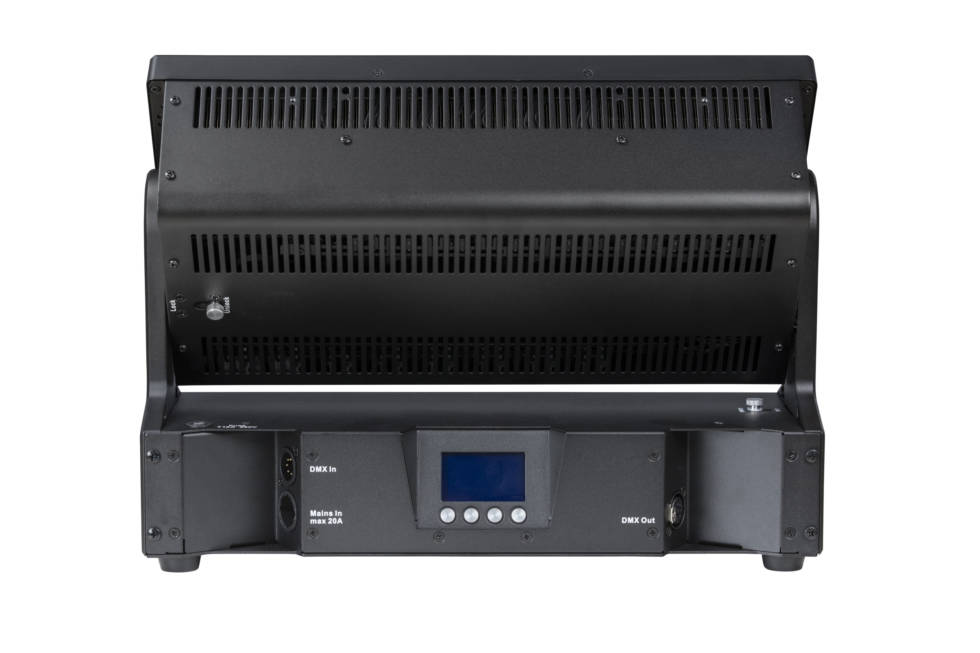

Connectors

  • DMX data
    • XLR 5-pin in/out
  • Mains power
    • Neutrik TRUE1 input



Power Supply

  • Mains voltage: 100-240 VAC / 50-60 Hz
  • Power (Watt @ 230 V): 1,200 W
  • Fuse: 6.3 mm X 32 mm T15A



Operating Conditions

  • Maximum ambient temperature: 104°F (40°C)



Mounting Options

  • Omega bracket attachments mount directly to rear of fixture
  • Attachment points for safety wire
  • Built in rubber feet for floor mounting
  • Any orientation

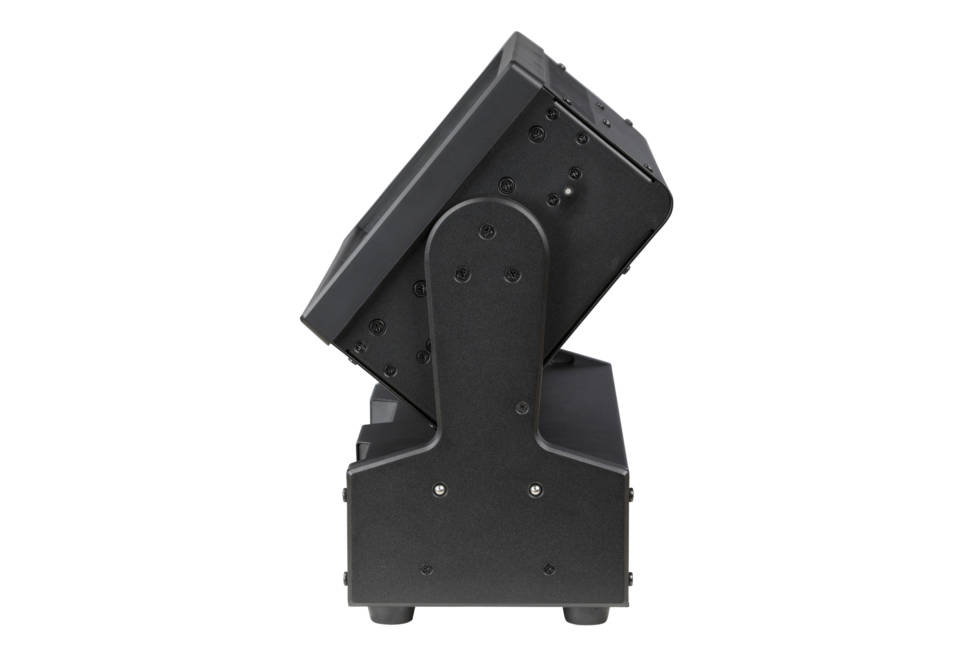

Movement

  • 185° tilt range
  • 16 bit resolution motorized tilt
  • Position feedback
  • High precision 3 phase stepping motor control



Strobe Panels

  • 1,320 RGB LEDs across two panels
  • Programmable into 12 pixel sections (2 x 6)



Strobe Tube

  • 216 x white LED
  • Programmable into 12 pixel sections



Strobe Control

  • Separate control of intensity, rate and duration for tube and plate elements
  • 6 pixels per plate section (12 total) can be individually controlled with color and intensity
  • Center tube can be programmed in 12 pixel sections
  • Macro channel with pulse and random effects
  •

Shipping

  • Cardboard box
  • 8-way or 4-way flight case options available



Housing Colors

  • Standard color is black
  • For other colors please contact sales department



Dimensions

  • (L x W x H): head vertical
    • 15.3 in. x 6.1 in. x 11.2 in. (39 cm x 15.4 cm x 28.4 cm)



Net Weight

  • Weight (incl. bracket): 26.5 lbs. (12 kg)
  • Weight (without bracket) 24 lbs. (10.8 kg)


User Manual

PDFIcon JDC1 User Manual

DMX Layout

PDFIcon JDC1 DMX Channel Index

PDFIcon JDC1 Aggressive Mode Explained

Fixture Profiles

ZIPIcon JDC1 Fixture Profiles for MA2

Firmware

ZIPIconJDC-1 Main DMX V198

TenderText

ZIPIconGLP JDC1 Tender texts

CAD

PDFIcon JDC-1 Dimensions Drawing

ZIPIcon JDC-1 Vectorworks File

ZIPIcon JDC1_3d DWG

Photometrics

PDFIcon  JDC1 Full Photometric Report

ZIPIcon JDC1_photometrics

Specifications

PDFIconJDC1 Product Card

PDFIcon  JDC1 Spec Sheet
