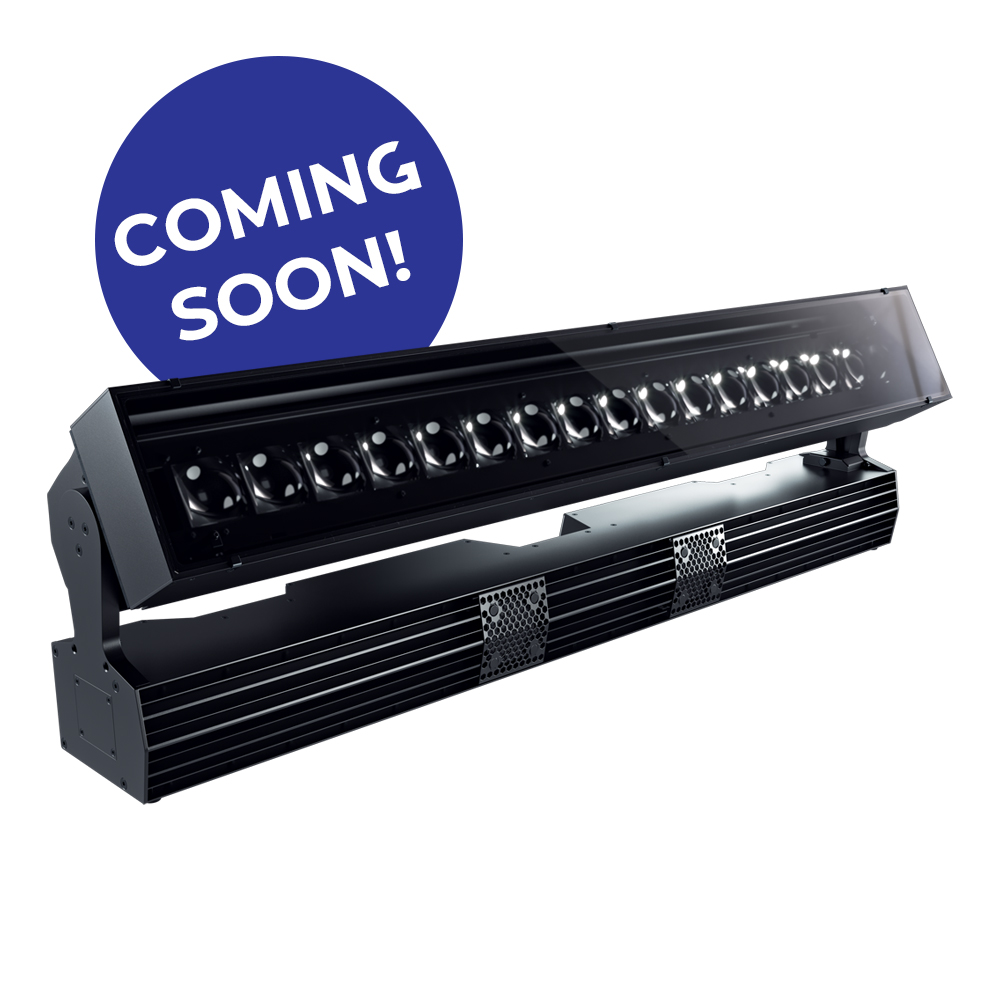

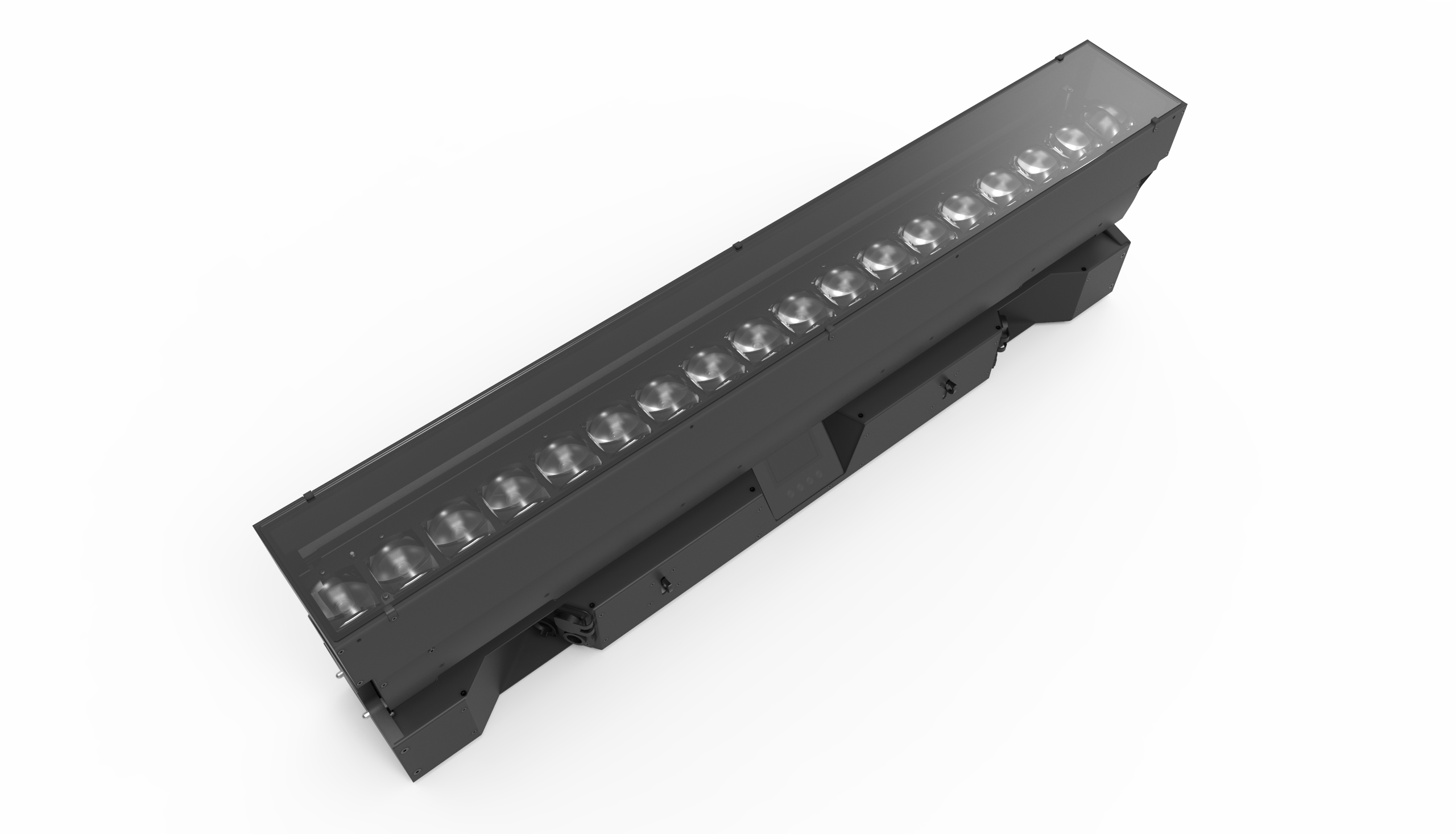

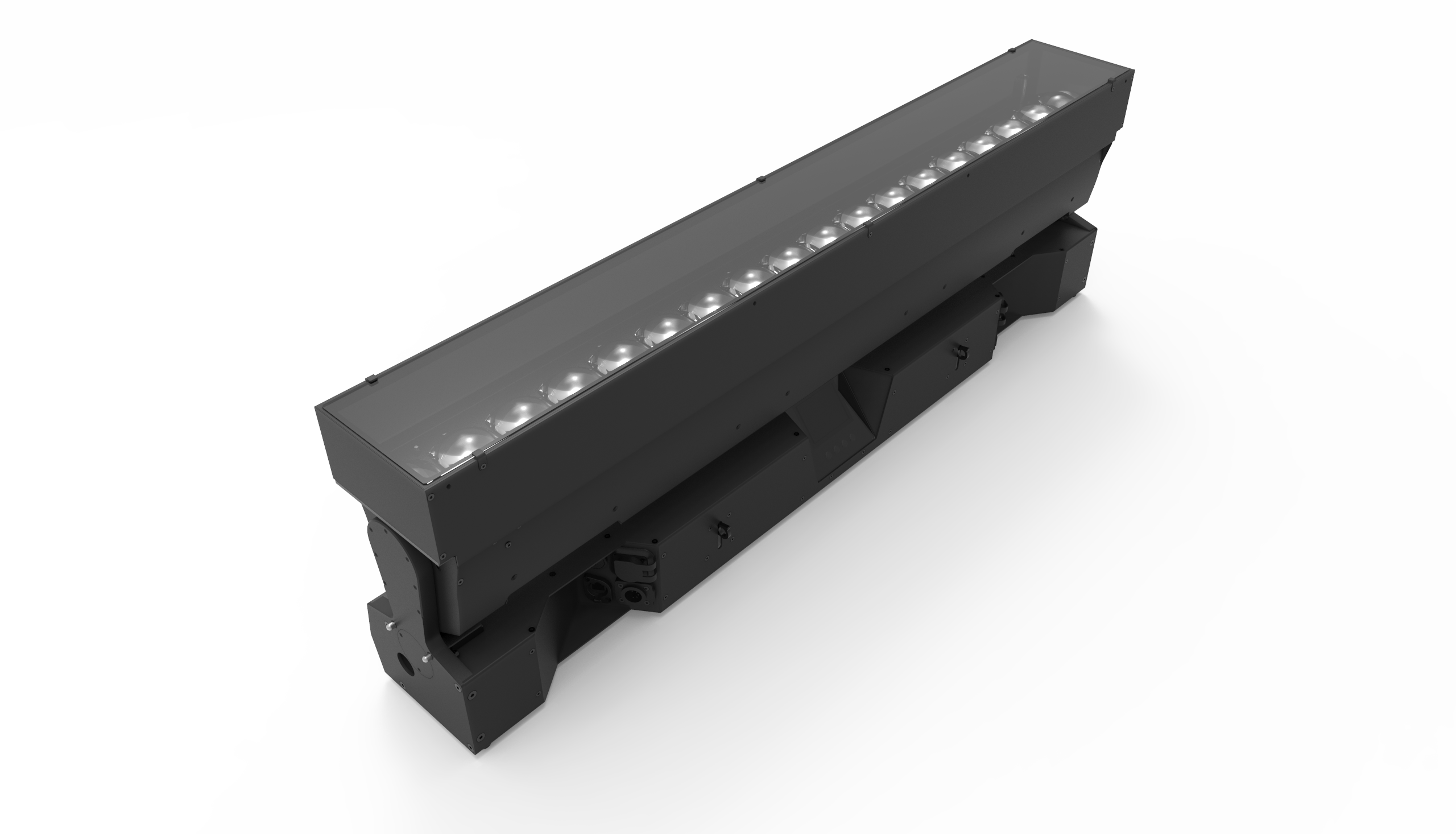

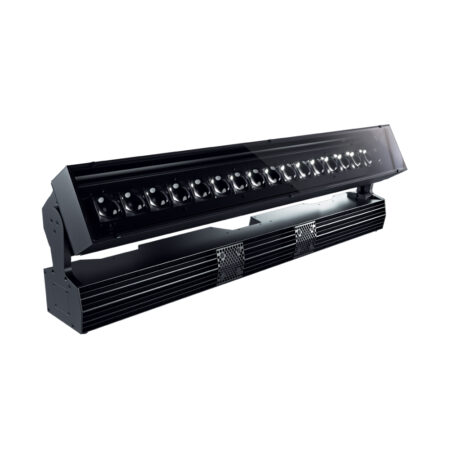

The GLP impression X5 IP Bar is an IP65 rated, linear LED batten with 18 powerful 40 W RGBL LEDs, a wide zoom range, and the new GLP iQ.Gamut color calibration algorithm that creates perfect white spectrums with excellent color rendering.

The new squared lens design ensures maximum lumen efficiency and gives an unprecedented curtain of light at its narrowest angle of just 5°, and delivering smooth and homogenous washes all the way out to its widest 60° wash.

As a part of the new GLP X5 family it offers a wide feature package, including selectable calibrated white points, a tungsten simulation channel, magenta/green correction, virtual color wheel and variable CTC, along with twin layer effects with plenty of dynamic pattern macros.

The impression X5 IP Bar offers our patented fast tilt movement in combination with seamless pixel pitch across fixtures, and features wired and wireless control as standard.

The impression X5 IP Bar’s enclosure is just as suitable for indoor use on the stage to protect against confetti, fog, pyro and dust.

Contact us for more information on the impression X5 IP Bar
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Light Source

18 RGBL LEDs
Light source power – 40 W
Light source lifetime – 50,000 hours
LED refresh rate – low, optimum (default), high 1, high 2, max
CCT – default white point: 6500 Kelvin; optional: 8000 Kelvin; 5600 Kelvin; 4200 Kelvin; 3200 Kelvin
Duv – perfect white point match low Duv values
CRI (Ra) – 8000 Kelvin: 90+ | 6500 Kelvin: 90 | 3200 Kelvin: 85
TLCI – 6500 Kelvin: 90 | 3200 Kelvin: 75
TM-30-15 – 6500 Kelvin: Rf/Rg: 87/105 | 3200 Kelvin: Rf/Rg: 85/110

Control

DMX channels – 18 / 31 / 99 / 64 / 51
5 control modes
Protocol –
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- Art-Net
- sACN(coming soon)
- iQ.Mesh
- iQ.DMX
- Optional: Lumenradio CRMX @ FPO
Setting and addressing –
- Control panel with backlit monochrome graphic display
- 4 button menu navigation
- DMX
- RDM
- iQ.Mesh
- NFC (Collect&Connect)
Software update –
- DMX link
- Via DProg
- Internal Webinterface
- iQ.Mesh
- Fixture2Fixture Push(coming soon)
High-res channels –
- Intensity global
- Tilt
- Colormix
Performance modes –
- Fast
- Normal (balanced)
- Smooth
Dimming curves –
- Linear
- Soft
- S-curve
Subfixture mode –
- Normal
- Independent
White points – default white point: 6500 Kelvin; optional: 8000 Kelvin; 5600 Kelvin; 4200 Kelvin; 3200 Kelvin
Other controls –
- Stand Alone 1 captured scene
- Art-Net/sACN node(coming soon)
- Data Conversion
- iQ.Mesh
- Subfixture split
- FPO (Flexible Protocol Option)
- Internal webinterface
- SW Fixture2Fixture Push

Effects

Dimmer – 0 – 100%; 16 bit
Shutter – strobe, pulse, sparkle, etc.
Color mixing –
- RAW
- RGBL
- x;y
Various settings for color mix priority
CTC (color temperature control) – 2500 – 10,000 Kelvin
CQC (color quality control) –
- High output (HO)
- Low quality (LQ)
- High quality (HQ)
Magenta/green-shift – yes
Tungsten simulation – 8x linked to fix CCT, 8x relative to Colormix
Color wheel – virtual color wheel, 64 LEE referenced colors, rainbow
Pattern effects – 50 dynamic pattern macros with special effects
Tilt movement angle – 195°, 16 bit resolution
Tilt movement speed – super fast

Connectors

Signal connection –
- XLR 5-Pin
- In/out
- Neutrik etherCON port A & B (failsafe)
Power input –
- Neutrik powerCON TRUE1
- In/out

Power

Power input – 100 – 240 VAC / 50 – 60 Hz
Power supply – auto-ranging electronic switch-mode
Power supply cable –
- US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft.
- EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
Max. power (@230V) – 750 W

Optical System

Output – up to 8780 lumens
Min. zoom – 5°
Max. zoom – 60°
Zoom ratio – 1:12

Mounting Options

Mounting –
- 2 eyelets for safety cable
- 4 pairs of 1/4-turn locks for two rigging/installation brackets
Orientation – any
Location –
- Indoor permanent
- Outdoor temporary

Thermal Specifications

Cooling – combined convection and forced air
Max. ambient temperature (Ta max.) – 45 °C / 115 °F
Min. ambient temperature (Ta min.) – 5 °C / 40 °F
Total heat dissipation (calculated, +/-10%) – 2,600 BTU/h

Construction

Housing color – black
Housing material –
- High-impact flame-retardant thermoplastic
- Aluminum
- Steel metal plates
Protection rating –
- IP 65
Construction features –
- Hand gaps for carrying
- Tilt-Lock-System
- Alignment System
- Threads for external accessory

Dimensions

Height – (head vertical) 12.24 in. / 311 mm
Height – (head straight down) 10.4 in. / 263 mm
Width – (across yoke) 39.4 in. / 1,000 mm
Length – 5.55 in. / 141 mm

Net Weight

Weight – 57.3 lbs. / 26 kg
