impression

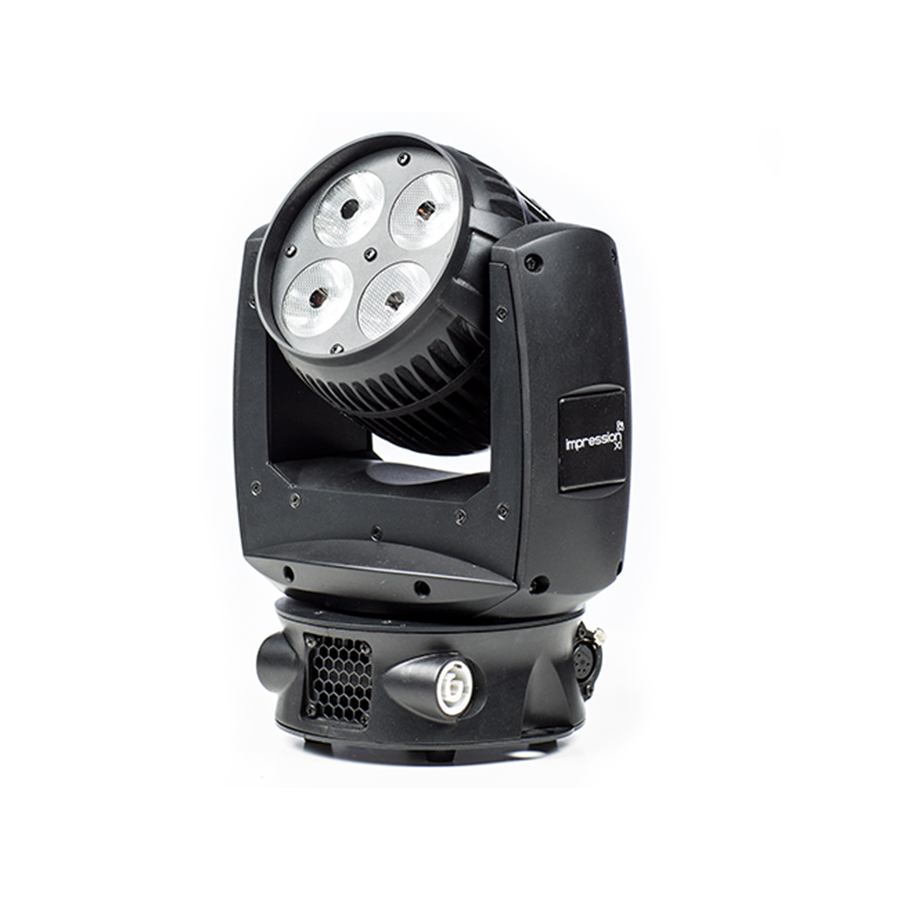

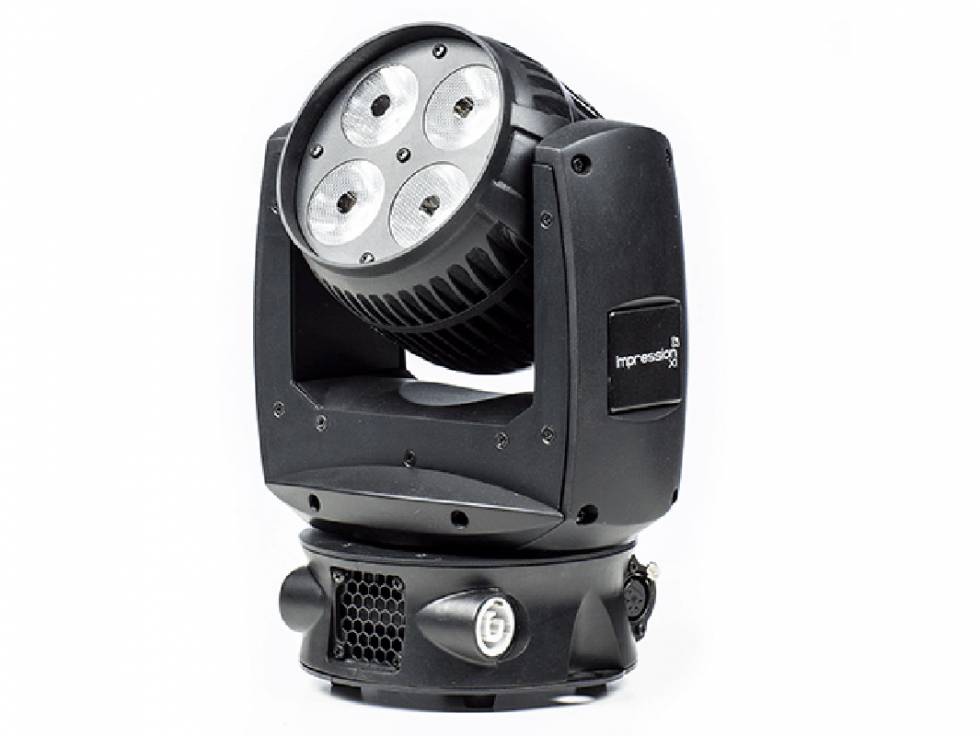

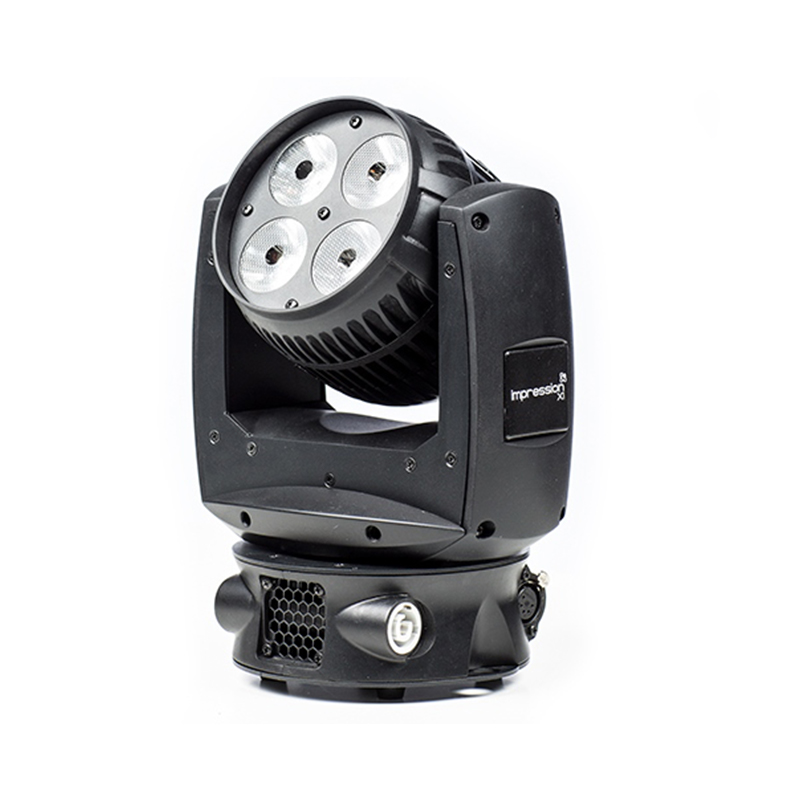

The impression X1 differs from other products in GLP’s impression range by featuring 4 high powered, 15 Watt, RGBW LED’s with a narrow fixed beam output. Additionally  it offers continuous pan and tilt motion, in a very compact housing. It’s just a foot tall!

The fixed beam optics are interchangeable between different beam angles from the standard 7°. The compact base of the impression X1 houses Neutrik Powercon in and thru connectors for easy daisy chaining of multiple fixtures.  The power supply is fully auto sensing from 100-240 V, 50/60 Hz.

The pan and tilt can travel at rates of up to 75 rpm (at their maximum speed) yet can also maintain continuous movement at their lowest speeds (as little as 0.6 rpm), all the while maintaining an even and smooth rotation.

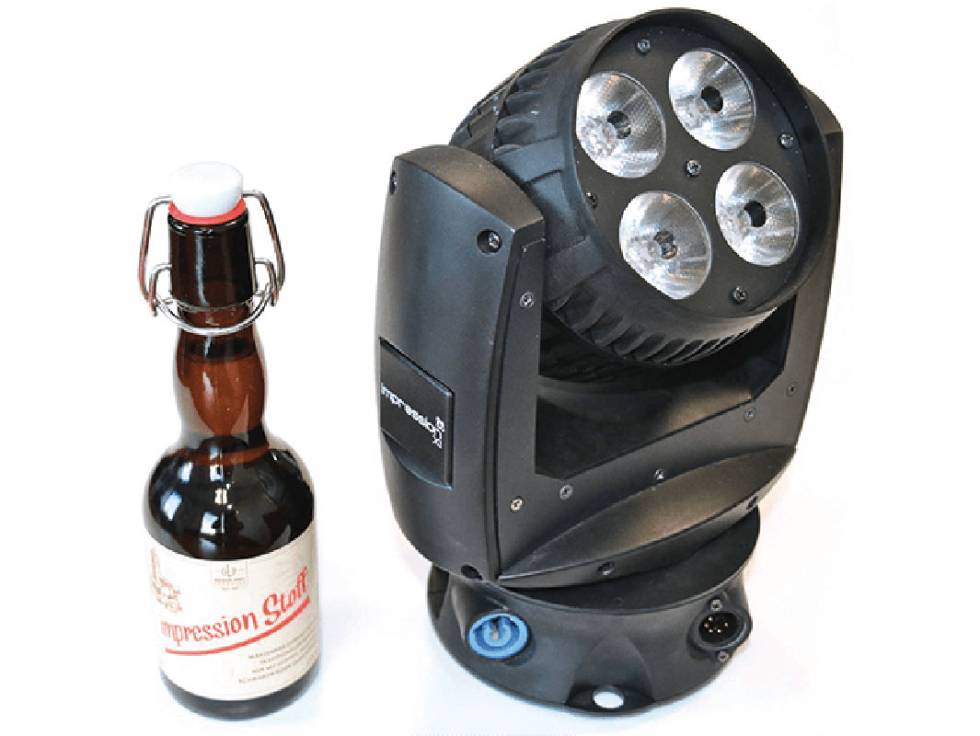

Weighing just 6.8 lbs. (3.1kg) and smaller than the impression X4 S, these unobtrusive fixtures can be deployed discreetly in large quantities to achieve stunning effects.

The X1 is therefore a small yet very versatile tool for stage design. The small compact nature of the fixture makes it easy to add into virtually any design without imposing on previous design choices and will not sacrifice any performance or power to do so.

The impression X1 has been used on stages from theatre productions to nightclubs. The compact X1 rises to the challenge.





Contact us for more information on the impression X1
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

 rgbw-multi

Light Source

  • 4 high powered RGBW LEDs
  • 50,000 hours rated life time



Control

  • DMX 512 protocol
  • Variable color temperature correction from 2700 Kelvin to 10,000 Kelvin
  • Very quiet temperature controlled ventilation system

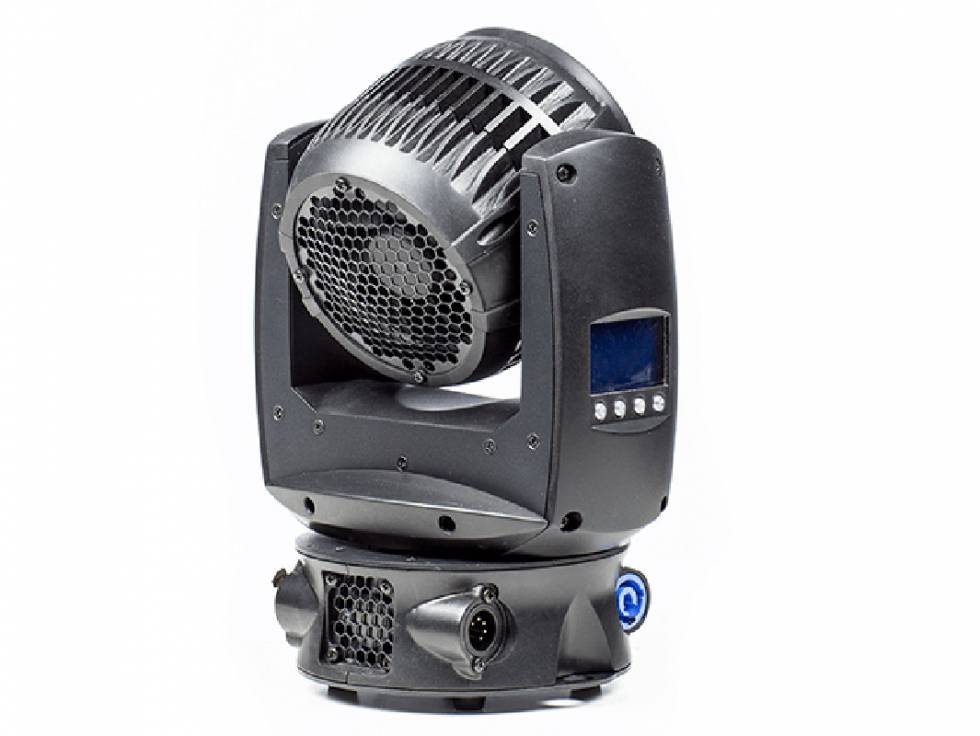

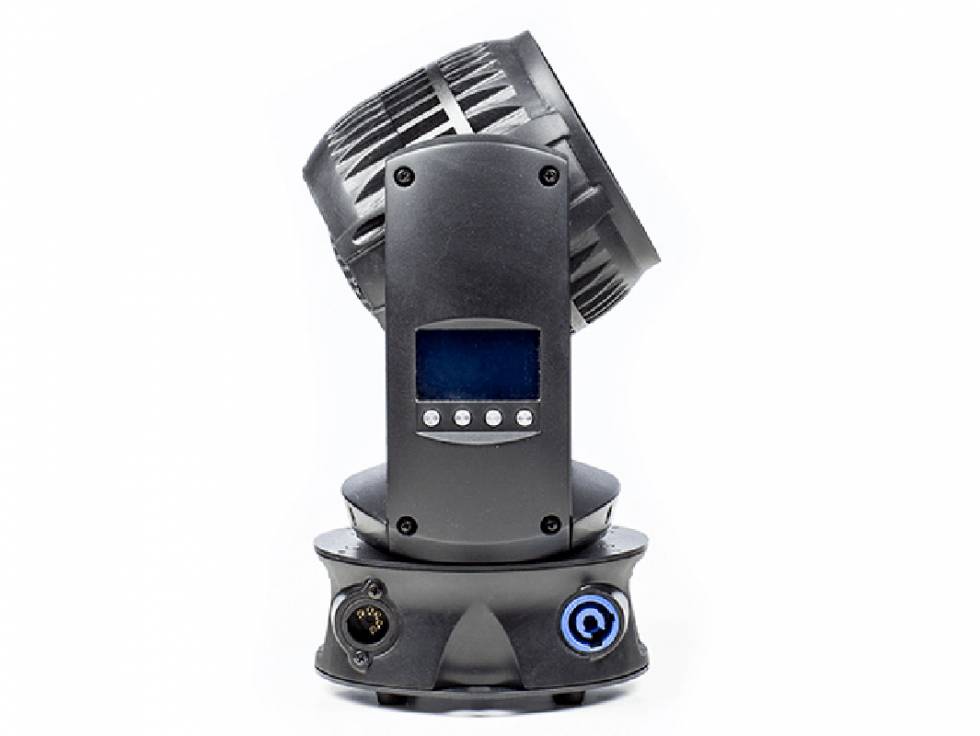

  • Back lit graphic LCD menu
  • Over temperature protection



Connectors

  • DMX: XLR 5 pin
  • Power: Neutrik Powercon in and thru



Power Supply

  • Power consumption: 100 VA (Watt)
  • Power input: auto sensing 100-240 VAC, 50-60 Hz
  • Fuse protection: micro fuse 5 mm x 20 mm, T 2A



Operating Conditions

  • Maximum ambient temperature: 113°F (45°C)



Mounting Options

  • 3 M10 sockets for half coupler or other clamp
  • 2 attachment points for safety wires



Optical System

  • Interchangeable optics with 7° standard beam angle
  • Optional 25° lens available
  • 15 W quad color LEDs



Movement

  • Pan / Tilt: 360° continuous rotation
  • 8 or 16 bit resolution
  • Position feedback
  • Maximum continuous rotation speed:
    • Pan: 75.3768 revolutions per minute / 0.796 seconds per revolution
    • Tilt: 74.6268 revolutions per minute / 0804 seconds per revolution



Shutter / Dimmer

  • Continuous dimmer 0-100%
  • Variable speed strobe of 1-14 Hz.
  • Random strobe effect
  • Pulse effects



Shipping

  • Cardboard box
  • 8-way tour pack (complete with half couplers) in flight case

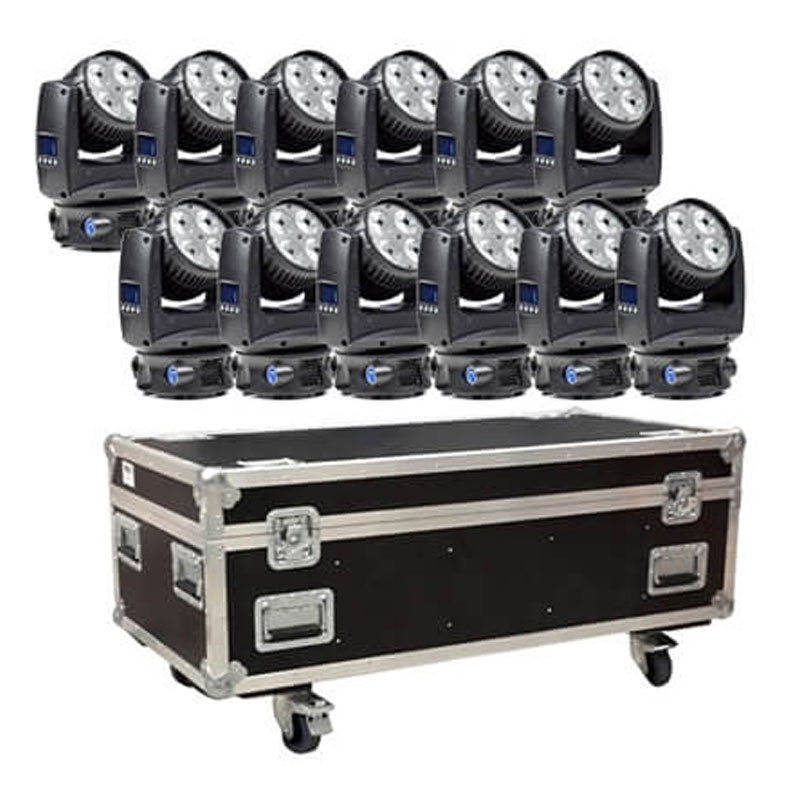

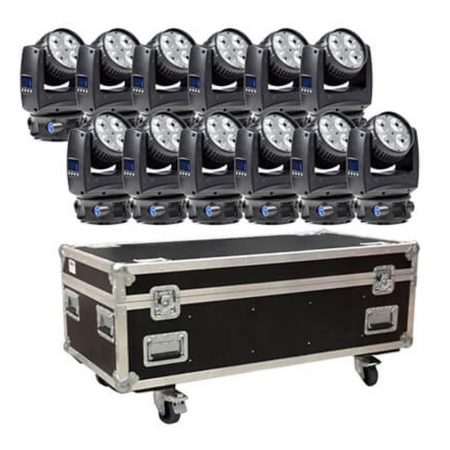

  • 12-way tour pack (complete with half couplers) in flight case



Housing Colors

  • Standard colors are black, silver, and white
  • For other colors please contact sales department



Dimensions

  • (L x W x H): head vertical
    • 7.6 in. x 5.5 in. x 12.2 in. (19.5 cm x 14 cm x 25.5 cm)



Net Weight

  • 6.8 lbs. (3.1 kg)
