Impression Wash One LED - Stage Lighting Products By GLP

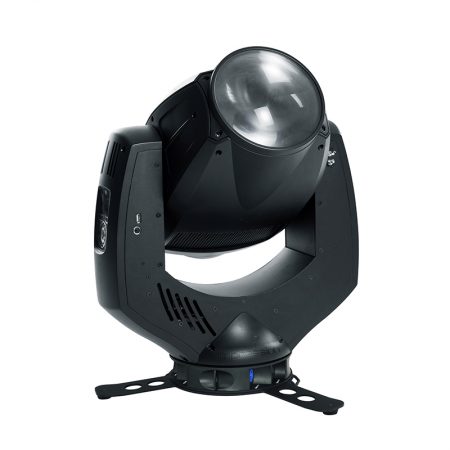

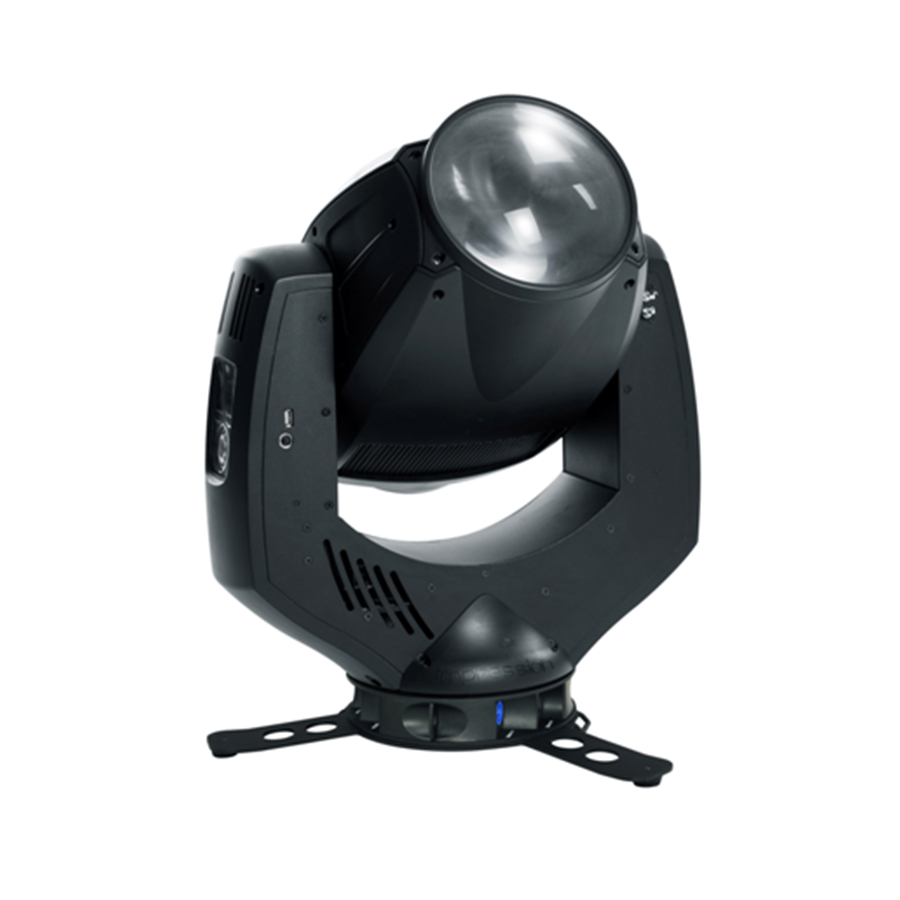

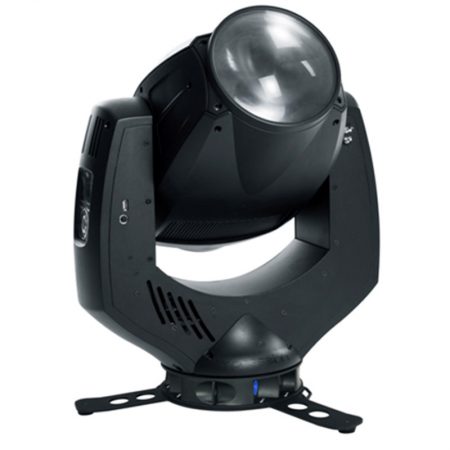

The impression Wash One offers a 6° to 60° zoom range. But the key differentiation is its innovative 3° narrow beam mode and its unique variable soft edge beam control. That allows softness adjustment for a incredible effect. Another attribute is the beam shaping function that enables the user to illuminate only the parts of a stage that need to be lit.

With its baseless yoke the impression Wash One weighs just 22 kg — perfect both for transportation and flexible stage rigging (in any orientation).

Contact us for more information on the impression Wash One
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Light Source

400 Watt RGB LED chipset
average service life: 20,000 hour

Control

USITT DMX 512
3/5 pole XLR
Backlit LCD graphical menu
Ethernet
Neutrik RJ-45 plug

Electronic Effects

Strobe effect: 1- 50 flashes per second, randomized, pulse effects
Continuous dimmer: 0 – 100%

Connectors

DMX data: XLR 3 pin in/out
DMX data: XLR 5 pin in/out
Artnet: Neutrik Ethercon
Mains power: Neutrik Powercon

Power Supply

Power consumption: max. 550VA (Watt)
Power input: auto sensing 100-240V AC, 50-60 Hz
Fuse protection

Operating Conditions

Maximum ambient temperature: 113°F (45°C)

Mounting Options

Omega bracket attachment
2 attachment points for safety wire
Upright: tripod (supplied) with brackets for ratchet belt
Hanging (vertical): M12 nut with lockable installation position for half coupler or other clamp
Hanging (horizontal): adjustable bar for sideways truss installation (optional)
Any orientation

Optical System

Zoom: 3° – 60°
Focus: 2m – infinity

Movement

8 or 16 bit selectable
Pan: 540°
Tilt: 280°
Position feedback
High precision 3 phase stepper motor

Approvals

Designed to US safety standards UL 1573 and UL 8750
Designed to Canadian safety standards CAN/CSA C22.2 No. 166

Housing Colors

Standard color is black
For other colors please contact sales department

Shipping

Cardboard box

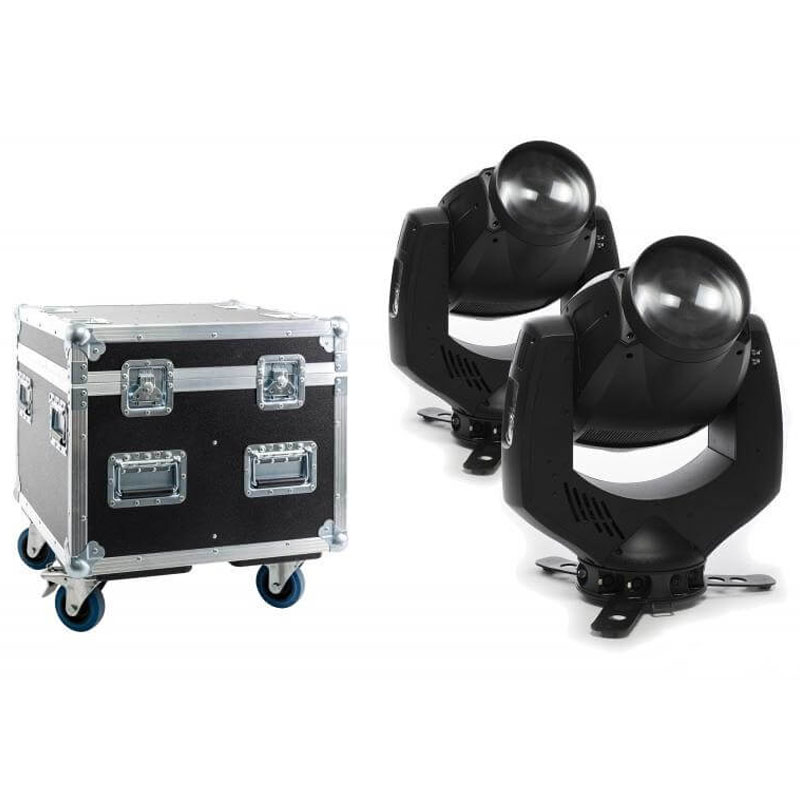

2-way tour pack (with omega bracket and omega brackets with handle) in flight case

Dimensions

(L x W x H): head vertical
- 18.6 in. x 9 in. x 24.3 in. (47.2 cm x 22.9 cm x 61.8 cm)

Net Weight

Weight: 50.7 lbs. (23 kg)

Manuals

Impression WashOne DMX channel index 1.02 EN

Impression WashOne manual V1.02 EN

Illustrations

impression Wash One Dimensions

Vectorworks GLP Library_v2014

impression Wash One 2D DWG

impression Wash One 3D DWG

impression Wash One 3D DXF

Photometrics

impression Wash One Photometric

Specifications

impression Wash One Specifications
