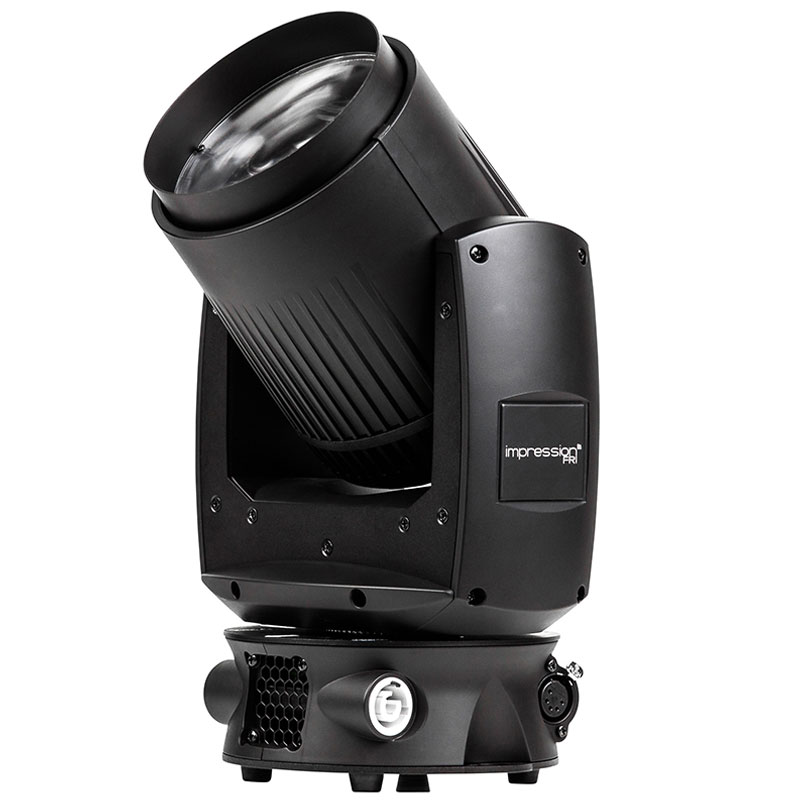

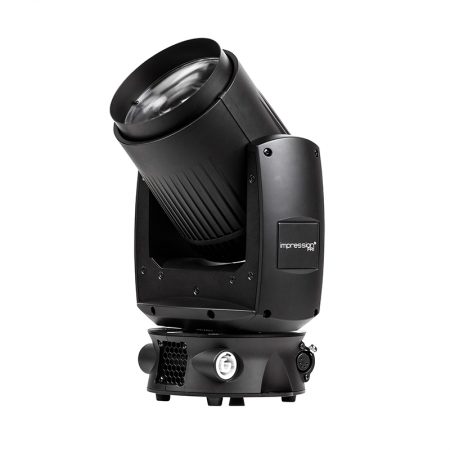

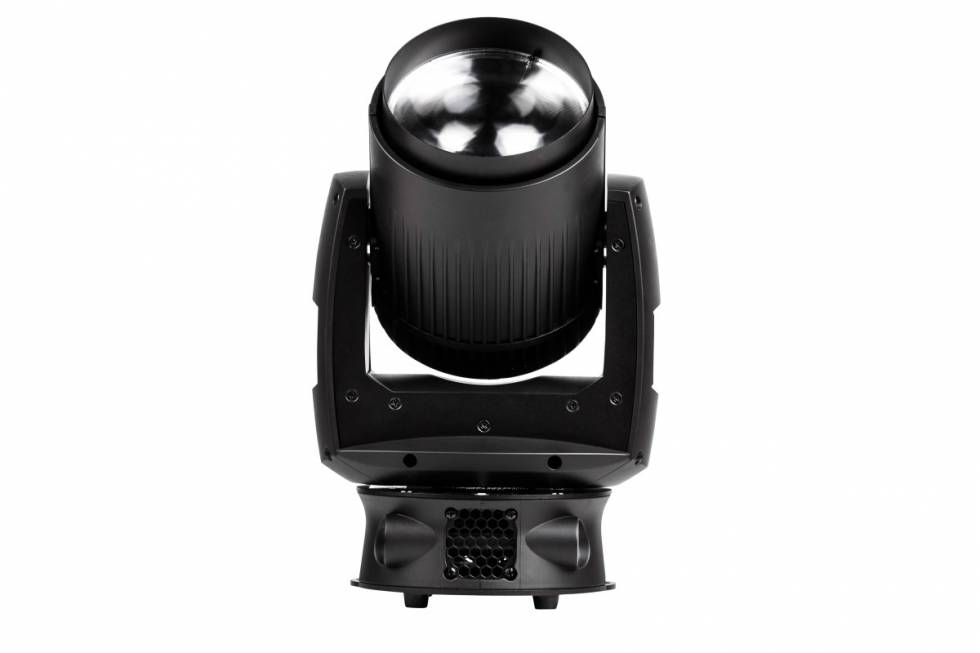

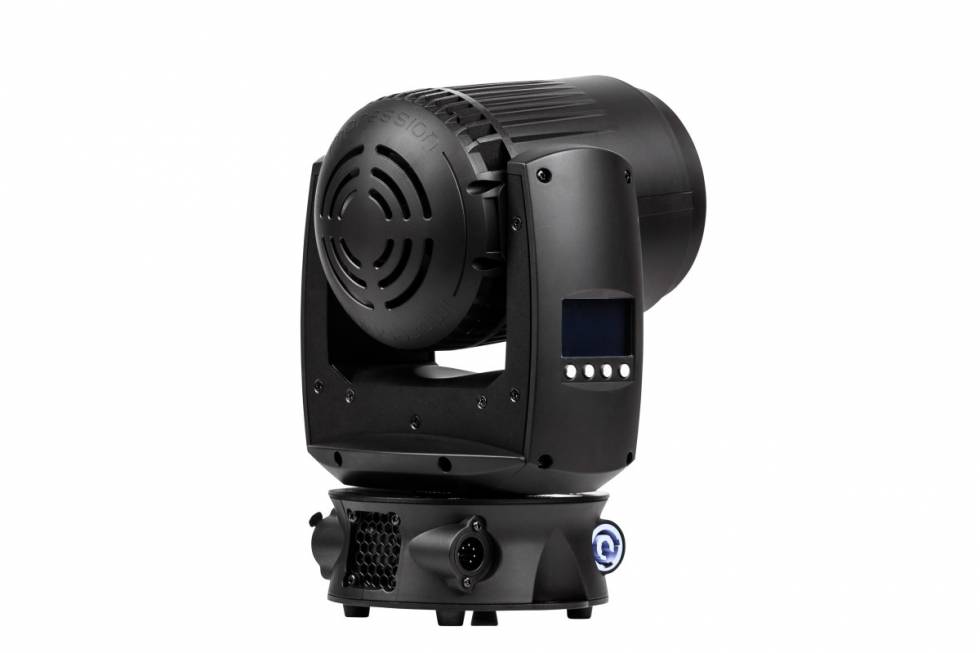

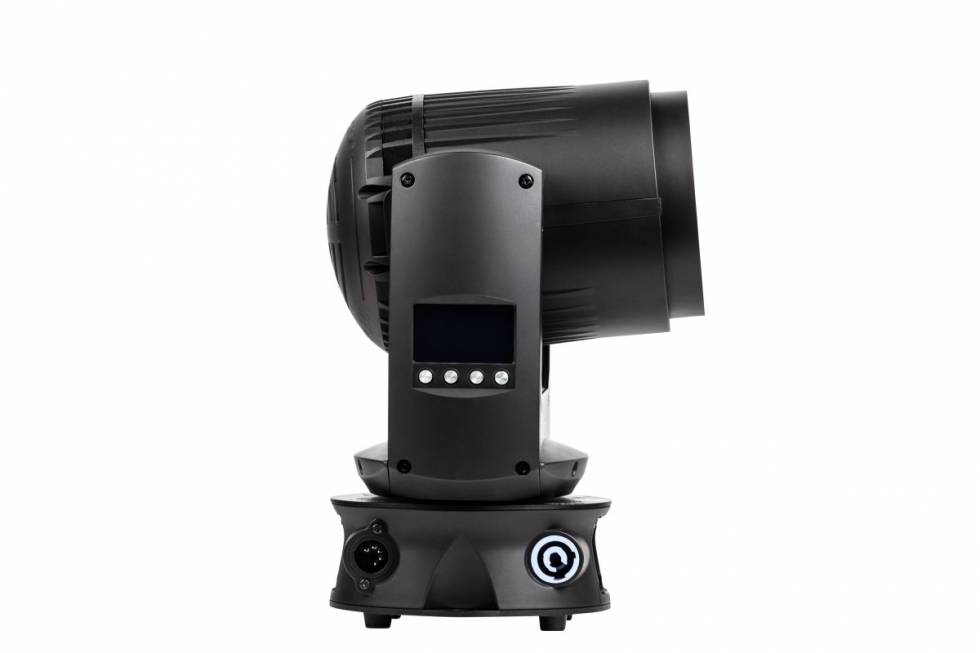

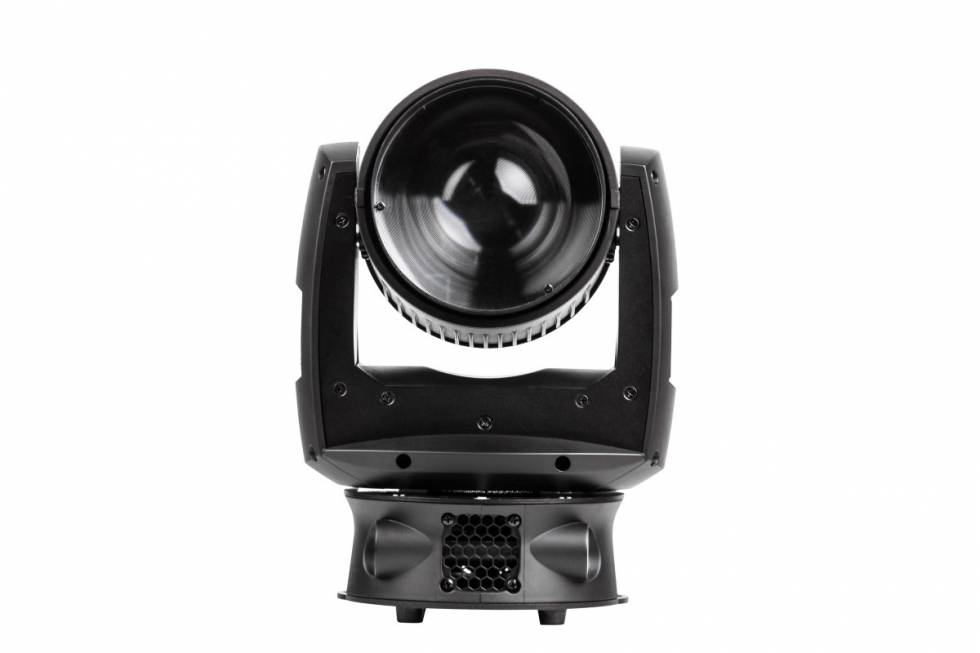

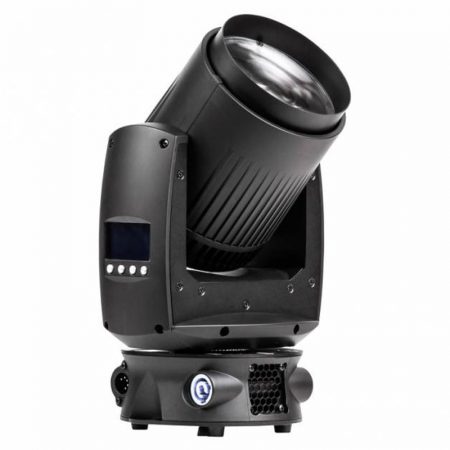

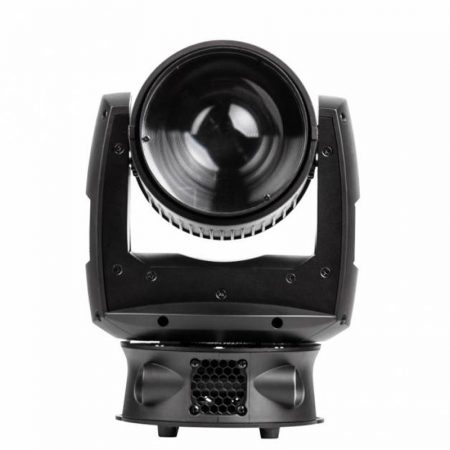

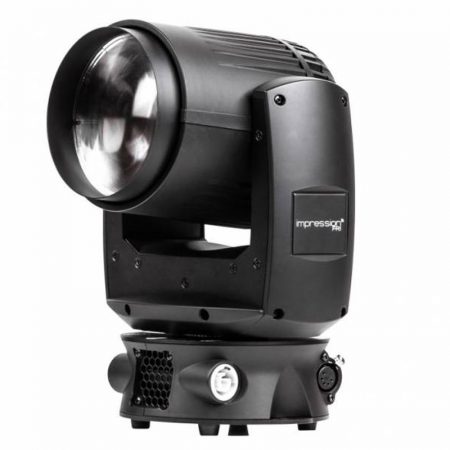

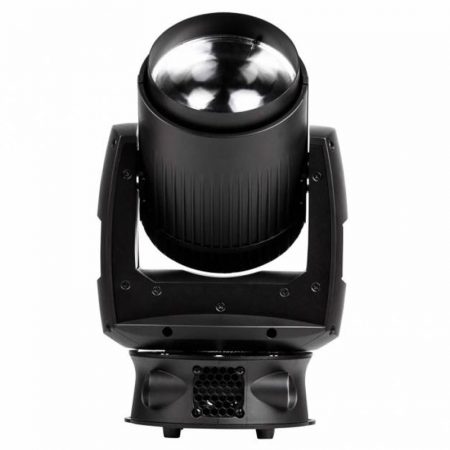

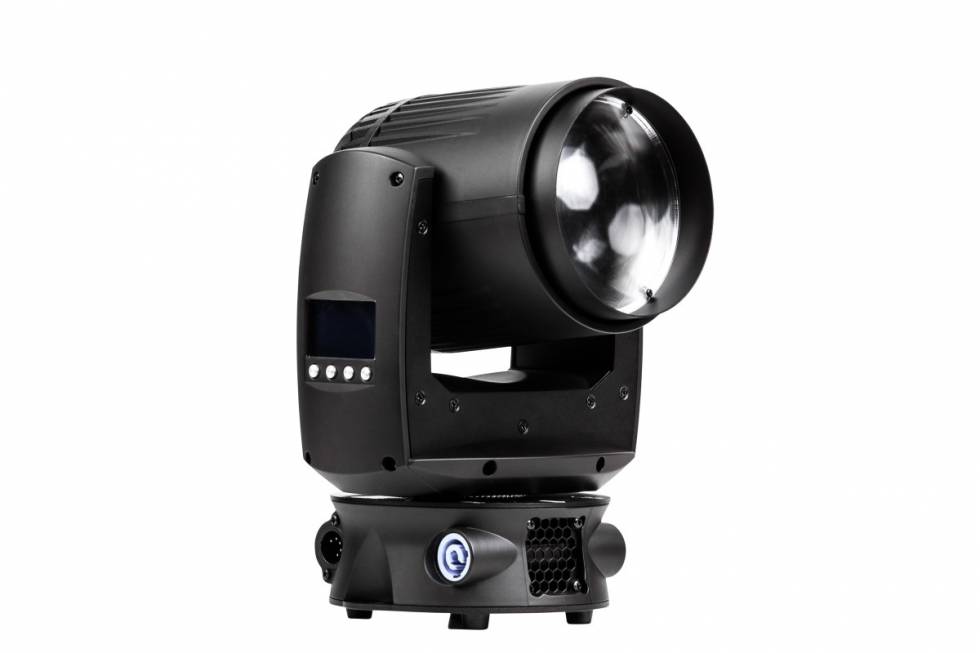

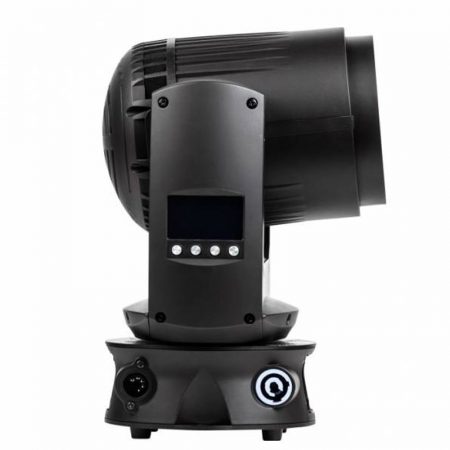

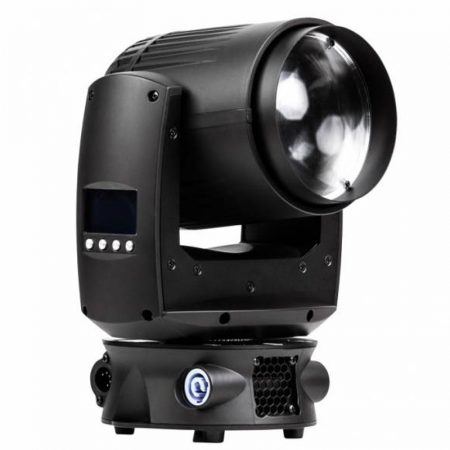

The GLP impression FR1 brings a powerful new level of versatility and quality with one of the most compact automated lighting packages available today. Using a single high powered 60W homogenized RGBW LED at its core, the impression FR1 features color mixing across a vast spectrum, whilst at the same time being able to project a crisp, punchy white light, with a full range of color temperature control.

Optical quality is at the forefront with the FR1, as it provides a clean, homogenized output at all angles, always giving a clean beam from center to its extreme edge. This consistency and attention to detail allows the FR1 to be used in a large range of applications where compromise is not an option.

A super fast 3.5° to 35° zoom range gives full beam control over both short and longer throw distances and because of its power, the FR1 can project over a long throw.

With quality comes accuracy, and in this area the FR1 features 16 bit dimming and 16 bit position control through a range of 540° of pan and 220° of tilt. As an added kick, the FR1 also has the ability of bi-directional continuous pan rotation at varying speeds from slow and gentle, to extremely fast giving that little something extra when needed.

A variety of dimmer curve options, along with a full PWM range and other settings are available from the on board menu with critical functions also available to control via the DMX signal.

The GLP trademark baseless design features on the FR1, and offers power in and thru connectors for ease of setting up multiple units. The base also features rubber feet for floor mounting, threaded sockets for coupler attachments, and built-in safety wire points.

Whether you’re lighting art, centerpieces, exquisite costumes, or close up displays, the impression FR1 offers an outstanding combination of quality, power, size, and ability, with a little kick of fun when that matters too.





Contact us for more information on the impression FR1
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Light Source

  • 60 W RGBW Osram Ostar LED
  • 50,000 hours
  • CRI 80
  • TLCI: 80
  • TM30-15: 77/106



Control

  • DMX-5pin

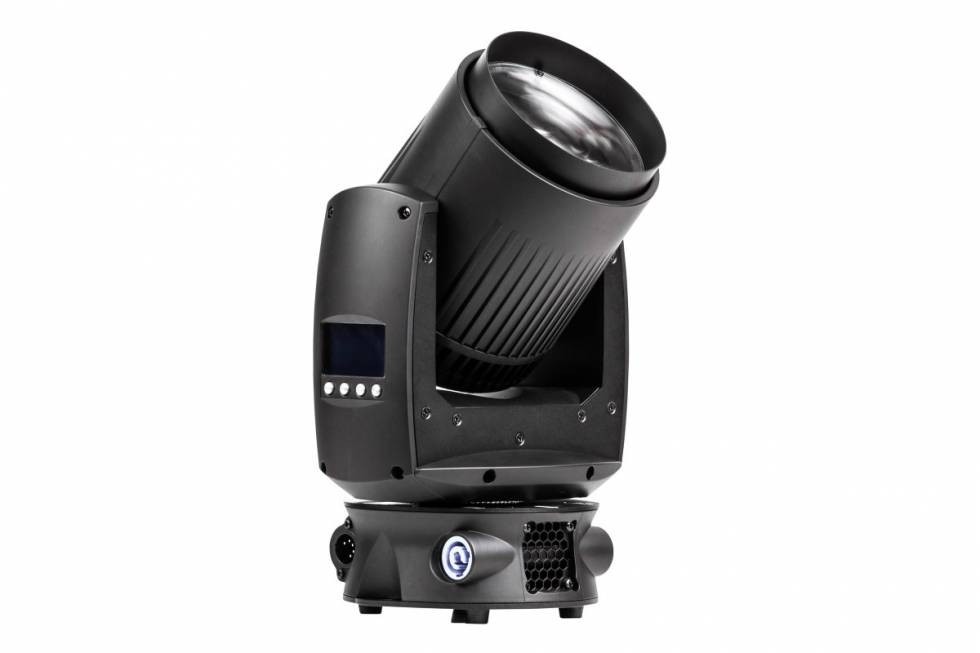

  • Back lit high contrast graphic LCD menu
  • Over temperature protection
  • 16 DMX channels
  • Display
    • Illuminated high contrast graphic LCD
  • Protocol
    • DMX-512



Effects

  • Virtual color wheel match referenced Lee colors
  • Color temperature control, 2700 Kelvin – 10,000 Kelvin



Connectors

  • DMX data
    • XLR 5-pin in/out
  • Mains power
    •   Neutrik PowerCON in/out.



Power Supply

  • Mains voltage 100-240 VAC/50-60 Hz
  • Variable PWM



Operating Conditions

  • IP 20 rated
  • Maximum ambient temperature: 104°F (40°C)



Mounting Options

  • Three M10 threads
  • Two safety wire attachment on both sides



Optical System

  • Tight beam with narrow 3.5°

  • Fast 1:10 zoom with a flat field wash of 35°



Movement

  • 540° continuous pan rotation
  • 220° tilt
  • 16 bit resolution with position feedback



Shutter / Dimmer

  • Flicker free operation with flexible PWM
  • Smooth electronic dimming from 0-100% different dimming curves
  • Variable electronic strobe 1-10 Hz
  • Pulse and random shutter effects
  •

Shipping

  • Cardboard box
  • 8-way flight case available
  • 12-way flight case available



Housing Colors

  • Standard color is black
  • For other colors please contact sales department



Dimensions

  • (L x W x H): head vertical
    • 7.6 in. x 5.5 in. x 14 in. (19.5 cm x 14 cm x 35.5 cm)



Net Weight

  • Weight: 8.8 lbs. (4 kg)
