impression E@x

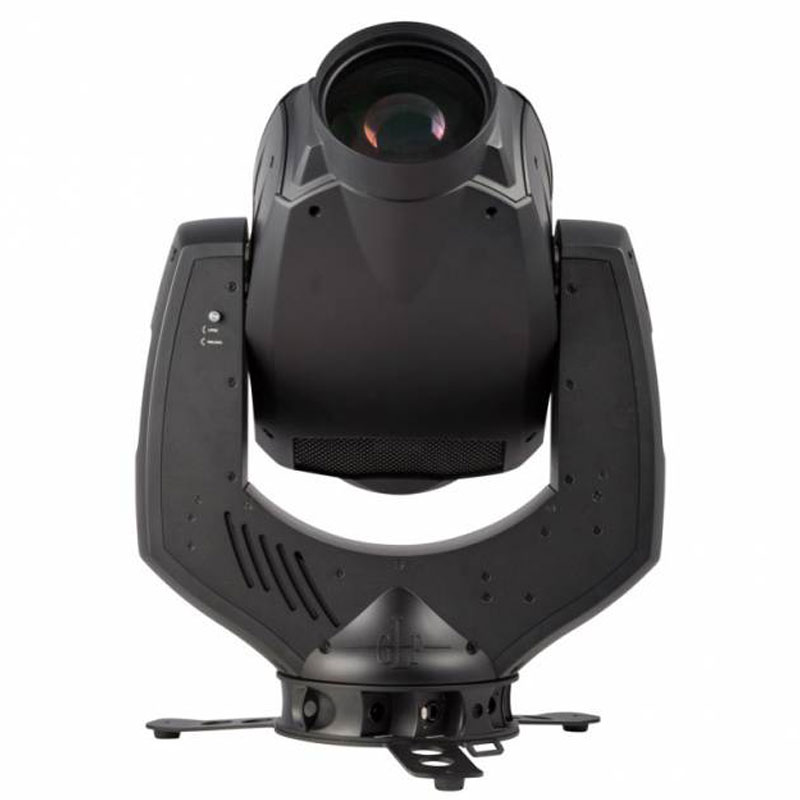

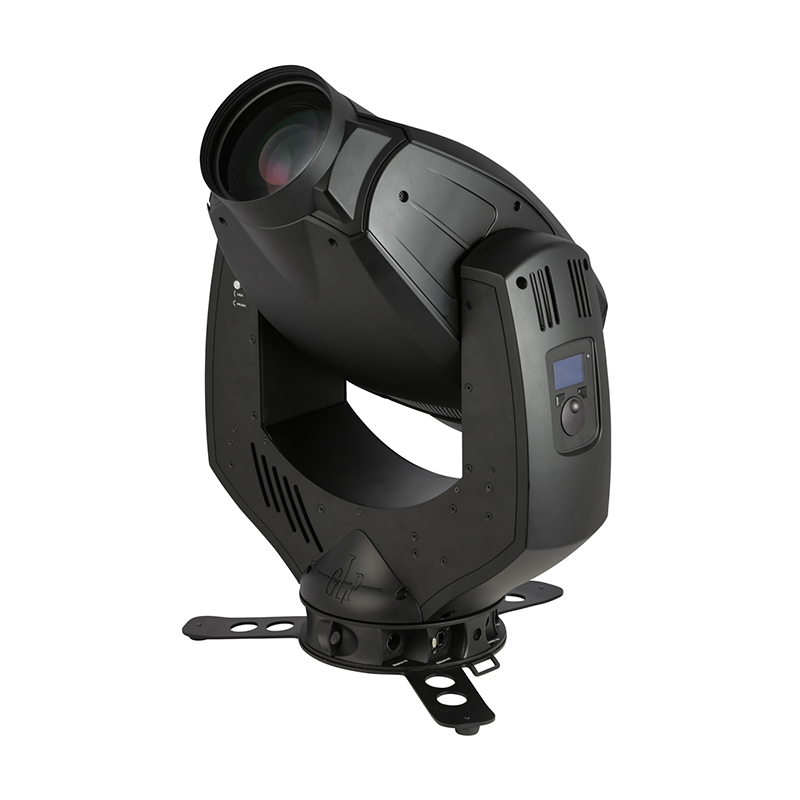

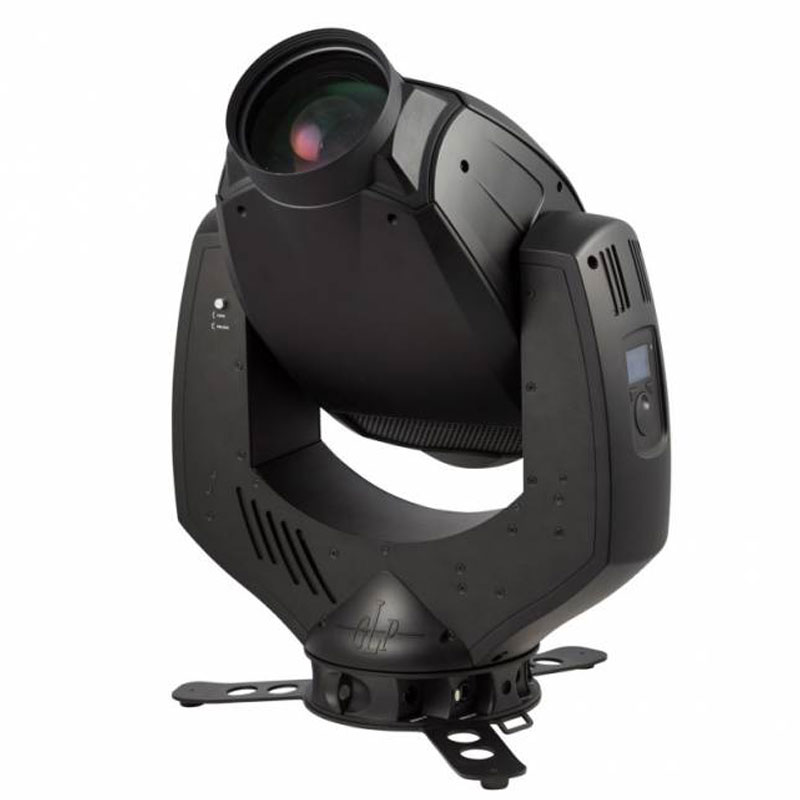

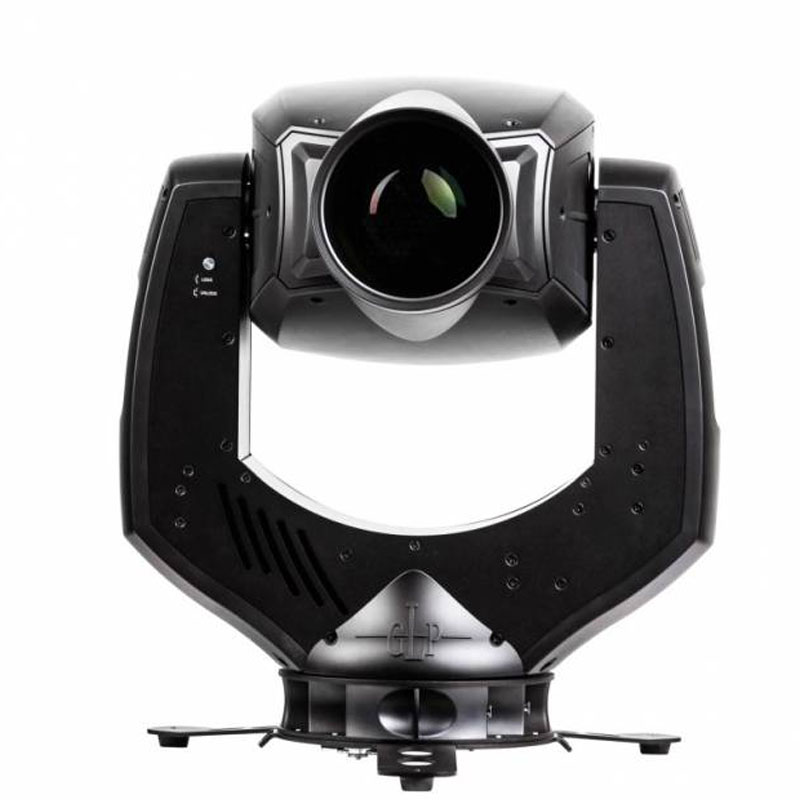

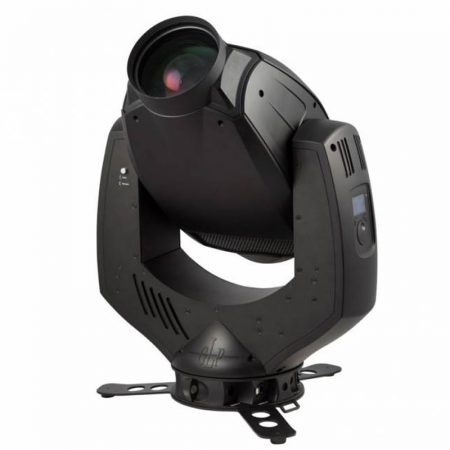

The impression E350 is another addition to the impression 350 range, and features a higher color temperature of 7500 Kelvin than its partner fixtures the S350 and S350 Wash. The impression E350 emits an even and flat field with a considerable light output, up to 12,200 lumens, producing stunningly bright projections. It houses a 7:1 ratio zoom of 8.5°- 42°, with a fast and responsive iris for massive mid air flexibility.

The impression E350 features a full range of color options from a dichroic CMY color mixing system with separate virtual color temperature control, along with an additional 10 slot color wheel that features split colors and continuous rotation effects.

The beam effects of the E350 start with a completely new gobo design set across two independent wheels. Firstly a 7 position rotating and indexing wheel, and supplemented with a fixed 10 position gobo wheel. Both of these are then supported by a fully controllable animation wheel that can cross completely into the beam and be rotated in both directions with orientation shifts from horizontal to vertical.

Then we added an independent 8 facet rotating prism to take any of your projections to a whole new level.

Finally we also included both a soft and heavy frost filter system inside for added flexibility.

This overall combination makes the E350 perfect for any number of applications that require stunning mid-air and projected beams from a compact LED source.

With matrix control on the LED engine for some even cooler effects, the E350 has smooth 16 bit movement, full range dimming with no color shift, adjustable pulse width modulation and much more besides. With a low weight of just 54 lbs. / 24.5 kg. The impression E350 also features an inbuilt battery for fixture setup, an auto sensing power supply and the option to have wireless DMX control.

The impression E350 is equipped and priced perfectly to fit into the mid range market where design flexibility and ownership return on investment go hand in hand.





Contact us for more information on the impression E350
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Light Source

  • Lamp type: White LED 350 W
  • Lifetime: 20,000 hours
  • Color temperature: 7500 Kelvin
  • CRI: 77
  • TLCI(Qa): 57
  • CQS: 90
  • Rg: 96
  • Rf: 87
  • Lightoutput: 9,759 lumens (narrow), 12,084 lm (medium), 12,269 lumens (wide)



Effects

  • Iris
  • Dimmer: 3-D dimming algorithm
  • Shutter: electronic shutter
  • 8 facet rotating prism
  • Gobo wheel 1
    • 7 replaceable, rotating and indexable gobos
  • Gobo wheel 2
    • 10 fixed gobos
  • Frost: 2 variable filters for light and heavy frost
  • Animation wheel with rotation and orientation control
  • Color wheel
    • 10 color filters
    • full CTO 3200 Kelvin
    • 1/4 CTO 4600 Kelvin
    • CTB 9000 Kelvin
  • Color mixing
    • CMY color mixing



Connectors

  • DMX data
    • XLR 5-pin in/out
    • XLR 3-pin in/out
  • Mains power
    • Neutrik TRUE1 Input



Power

  • (Watt @ 230 V): 550 W



Operating Conditions

  • Maximum ambient temperature:  115°F (45°C)



Mounting Options

  • Upright: removable tripod base (supplied) with brackets for ratchet belt
  • Hanging: 2 x M10 socket for half coupler, or other clamp
    • Omega brackets (optional)
  • 2 attachment points for safety wire
  • Any orientation



Optical System

  • Min. zoom: 7°
  • Max. zoom: 42°
  • Focus: motorized 2m – infinite



Movement

  • Pan: 640°
  • Tilt: 262°
  • 16 bit resolution with feedback



Shipping

  • Cardboard box
  • 2 way tour pack complete with omega brackets and stacking flight case



Housing Colors

  • Standard color is black
  • For other colors please contact sales department



Dimensions

  • (L x W x H): head vertical
    • 18.6 in. x 9 in. x 24.3 in. (47.2 cm x 22.9 cm x 61.8 cm)



Net Weight

  • 54 lbs.  (24.5 kg)
