impression rgb

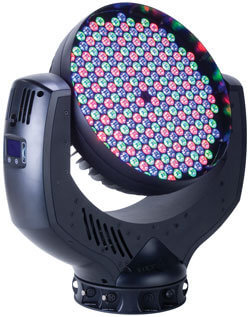

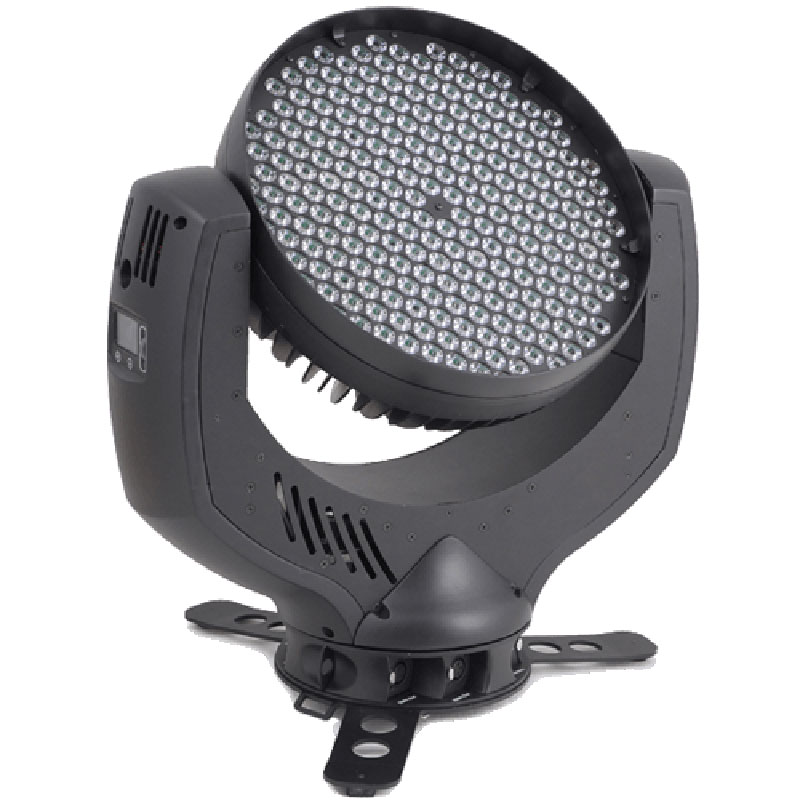

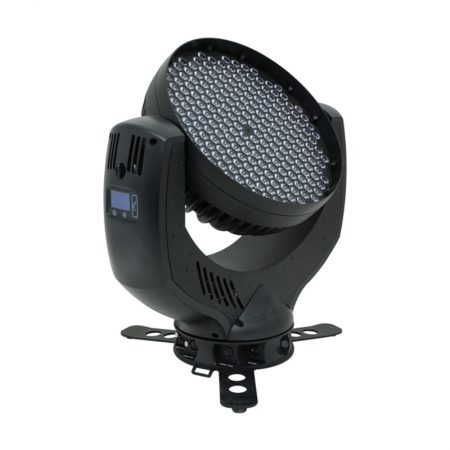

Building on the market success of the original impression fixtures as well as a request for ‘more, more, more’, GLP have developed the impression 240 XL. The 240 XL uses almost three times as many K2 LEDs as the original, with 240 in total, for unprecedented optical performance, both in terms of light output and in terms of color performance.

This amount of light makes the impression 240 XL perfect for longer throw applications, or where a higher level of ambient light is present, such as at daytime outdoor events, outside broadcasts, and festivals.

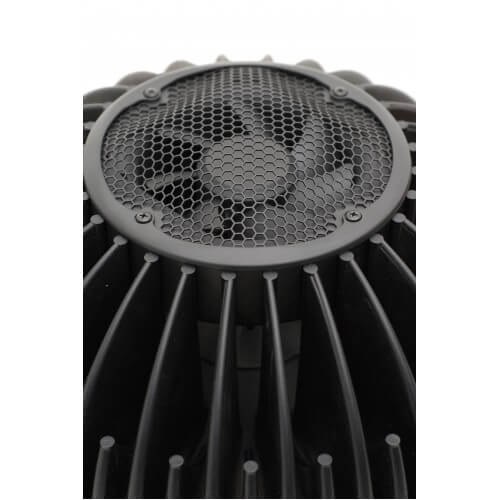

The 240 XL uses the same innovative design as its predecessor, featuring no bulky base unit, and very low noise operation through the integrated heat sink. Its comprehensive menu system is easy to navigate allowing you to personalize the operation of each fixture.

Weighing in at just 52 lbs. (23.5 kg), the 240 XL has connectors on its base for rigging with omega brackets and integrated sockets so that half couplers and similar can be mounted directly to the fixture.

The 240 XL features flicker free dimming throughout its entire dimming range in all colors and works flawlessly in all camera and broadcast environments. The fixture comes fitted with a 10° lens as standard, with 25° and 40° interchangeable lenses available as optional extras.

Further accessories such as honeycomb fronts, flight cases, and a 5 ‘flower’ unit rigging option are also available.

The impression 240 XL features feedback corrected movement with a 660° pan range, a 330° tilt range with 16 bit resolution, and a speedy response due to its low weight.





Contact us for more information on the impression 240 XL
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

rgb2 wwc2 wcc2 luxeon k2 led

Light Source

  • Additive color mixing
  • 240 Luxeon K2 high performance LEDs
  • Average service life: 50,000 hours



Control

  • DMX-512 protocol
  • Back lit graphic LCD
  • 2 illuminated buttons
  • Very quiet, temperature controlled ventilation system
  • Convection cooling possible if needed
  • Over temperature protection
  • Internal color presets



Connectors

  • DMX: XLR 3 pin in/out
  • DMX: XLR 5 pin in/out
  • Mains power: Neutrik Powercon



Power Supply

  • Power consumption:
  • Power input: 100 240V AC, 50-60 Hz, 1200 VA
  • Fuse protection: microfuse 6.3 x 32 mm, T15A



Operating Conditions

  • Maximum ambient temperature: 113°F (45°C)



Mounting Options

  • Omega bracket attachment
  • 2 attachment points for safety wire
  • Upright : tripod (supplied) with brackets for ratchet belt
  • Hanging (vertical): M10 nut with lockable installation position for a half coupler or other clamp
  • Hanging (horizontal): adjustable bar for sideways truss installation (optional)



Optical System

  • Highly efficient collimator cluster
  • Interchangeable lens carrier with 10° beam angle
  • 25° and 40° lenses are available as optional
  • Integrated stray light screen
  • Honeycomb available as optional
  • Wave lengths optimized for a maximum visible color gamut



Movement

  • High precision stepping motor control
  • 8 or 16 bit resolution selectable
  • Position feedback



Available Versions

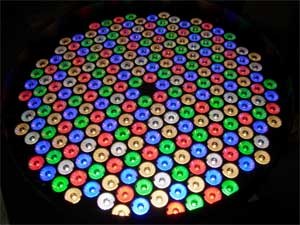

  • RGB – 78 red, 84 green, 78 blue LEDs per color

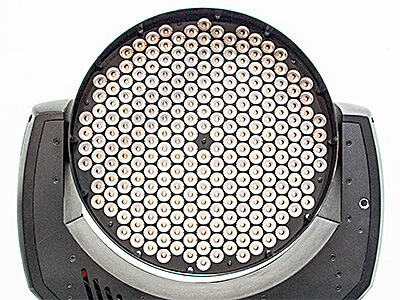

  • WWC – 156 warm white (3200 Kelvin), 84 cold white (7200 Kelvin)
  • WCC – 84 warm white (3200 Kelvin), 156 cold white (7200 Kelvin)
  • RGBWW – 50 red, 50 green, 56 blue, 54 warm white (3200 Kelvin), 30 cold white (7200 Kelvin)



Approvals

  • Designed to US safety standards UL 1573 and UL 8750
  • Designed to Canadian safety standard CAN/CSA C22.2 No. 166



Housing Colors

  • Standard color is black
  • For other colors please contact sales department



Shipping

  • Cardboard box
  • 2-way tour pack (complete with half couplers and additional lenses) in flight case
  • 4-way tour pack (complete with half couplers and additional lenses) in flight case



Dimensions

  • Length x width x height (head vertical) – 7.8 in. x 21.6 in. x 20.2 in. (200 x 550 x 515 mm)



Net Weight

  • 51.8 lbs. (23.5 kg)

Manuals

PDFIconImpression-240-XL-RGB-Manual-V1.03_EN

PDFIconimpression 240 XL WWC-CCW User Manual V1.3 EN

PDFIconimpression 240 XL RGB DMX Layout V1.3

Illustrations

PDFIconimpression 240 XL Dimensions

ZIPIconVectorworks GLP Library_v2014

ZIPIconimpression 240 XL 2D DXF

ZIPIconimpression 240 XL 3D DWG

Photometrics

PDFIconimpression 240 XL RGBWWC 10 ° Photometric

PDFIconimpression 240 XL RGBWWC 25 ° Photometric

Specifications

PDFIconimpression 240 XL Specifications

PDFIconImpression XL 240 RGBWW Specifications
