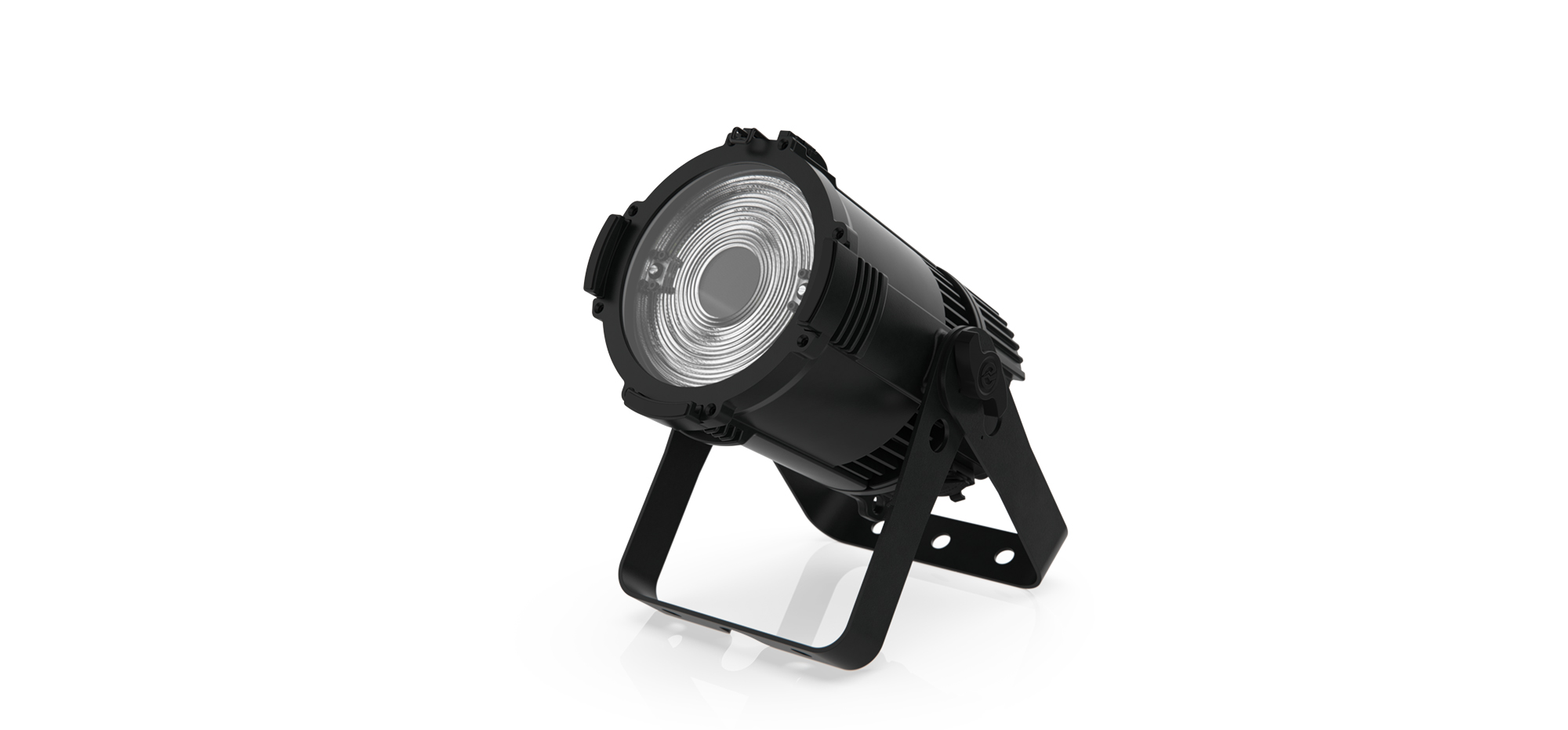

The FUSION X-PAR 8Z is the most compact and lightest representative in the series. It is a real all-rounder and is suitable for a wide range of applications. At just 4.5 kg, it is also really lightweight and so will find its place in applications with limited space.

The FUSION X-PAR 8Z is the most compact and lightest of FUSION by GLP’s X-PAR series of weatherproof (IP65) LED PARs, with motorized zoom function. The FUSION X-PAR 8Z is a real all-rounder and is suitable for a wide range of applications. At just 4.5 kg, it is also a real lightweight that makes it ideal for applications with limited space.

Whether for use individually or in a matrix, as eye candy on stage, as a colored beam light or for homogeneous illumination of surfaces, the FUSION X-PAR 8Z’s motorized zoom makes all this possible. And with its IP65 classification, the spotlight is also ideal for façade lighting.

From a highly efficient 80-watt RGBL LED, the X-PAR 8Z emits up to 1,800 lumens with excellent light quality thanks to GLP’s patented iQ.Gamut color calibration. The extremely compact housing (175 x 175 x 249 mm) allows it to be used in a variety of applications, and the 132 mm Fresnel lens ensures an excellent light image. Thanks to the motorized zoom, powerful 8° beams are just as possible as homogeneous washes up to 55°.

A variable color temperature adjustment from 2,500 to 10,000 Kelvin, four dimmer curves, seven PWM settings, including magenta/green shift correction and a virtual color wheel with 64 referenced LEE colors, round off the features of the FUSION X-PAR 8Z.

Finally, the fixture’s fanless cooling system also allows it to be used in noise-sensitive environments. The device supports DMX, RDM and iQ.Mesh.

Light Source

  • Type – RGBL LED
  • Power – 80 W
  • Count – 1
  • Lifetime – 20,000 h
  • LED Refresh Rate – 600 Hz | 1,200 Hz | 2,200 Hz | 3,000 Hz | 4,800 Hz | 9,600 Hz | 25 kHz
  • CRI – 85+
  • TLCI – 80+



Optical System

  • Output – up to 1,800 lm
  • Min. Zoom – 8.5°
  • Max. Zoom – 55°
  • Zoom Ratio – 1:7
  • Front lens diameter – 132 mm / 5.2 in



Effects

  • Color mixing – RGBL
  • CTC – 2,500 – 10,000 K
  • Color wheel – virtual, 64 LEE referenced
    colors | 4 White Presets
  • Zoom – motorized
  • Dimmer 0 – 100 % electronic, 8 bit / 16
    bit
  • Dimming curves – linear | square | inverse square
    | S-Curve
  • Shutter – 1 to 10 Hz



Control

  • DMX Channels – 4 | 6 | 6 | 8 | 11 | 16
  • Control Modes – 6
  • Protocols – DMX (USITT DMX512-A) | RDM (ANSI/ESTA E1.20)
  • High-Res Channels – Dimmer
  • Dimmer Speed – Fast | Smooth
  • Setting and addressing – OLED display with 4 buttons | DMX | RDM | 1 Scene Stand Alone
  • Firmware Update – DMX Link via Updater cable or Handheld



Connectors

  • Power – True1 compatible In/Out
  • Signal – Neutrik XLR 5-Pin In/Out



Electrical Specifications

  • Power input – 100 – 240 V AC / 50 – 60 Hz
  • Power supply unit – Auto-ranging electronic switch-mode
  • Max. Power – 85 W



Thermal Specifications

  • Cooling type – convection
  • Max. surface temperature – 90 °C / 194 °F
  • Temperature range, operating – -10 °C / 14 °F to 40 °C / 104 °F



Installation

  • Mounting – 1 eyelet for safety cable | M10 thread, centered | Double Bracket with three holes
  • Orientation – Any
  • Location – Outdoor temporary, indoor permanent



Construction

  • Housing color – Black
  • Housing material – Die-cast Aluminum
  • Protection Rating – IP 65
  • Construction Features – Floor Standing with adjustable Foot | Direct M10 Thread for Drop Mounting | Low Ceiling Mounting with bracket | Holder for optional filter frame and barndoor



Shipping

  • Tourpack 10-way



Dimensions

  • Height – 175 mm / 6.9 in
  • Width – 176 mm / 6.9 in
  • Depth – 249 mm / 9.8 in



Weight

  • 4.5 kg / 10 lbs
