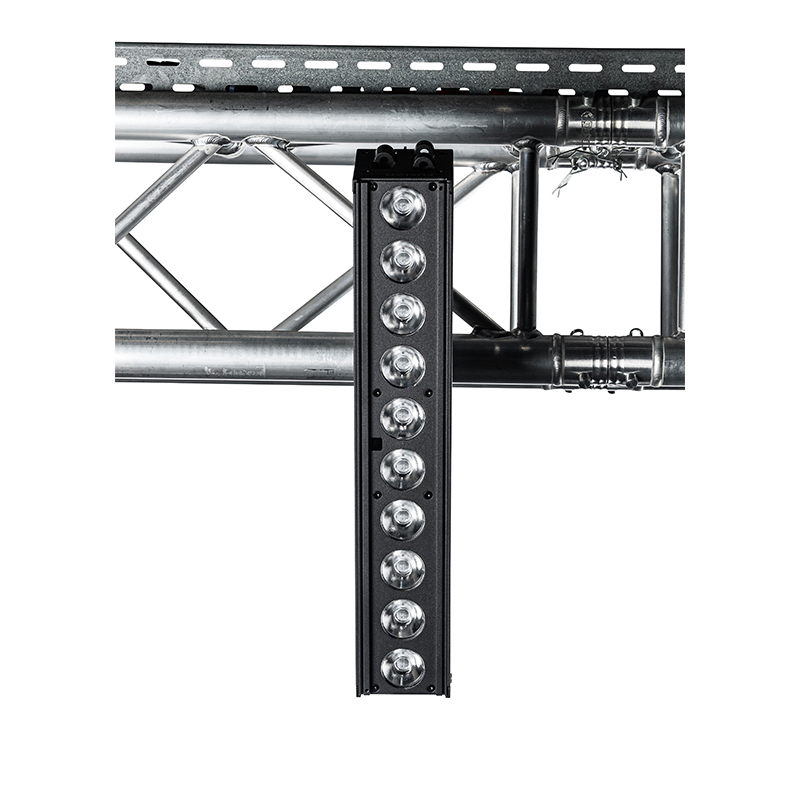

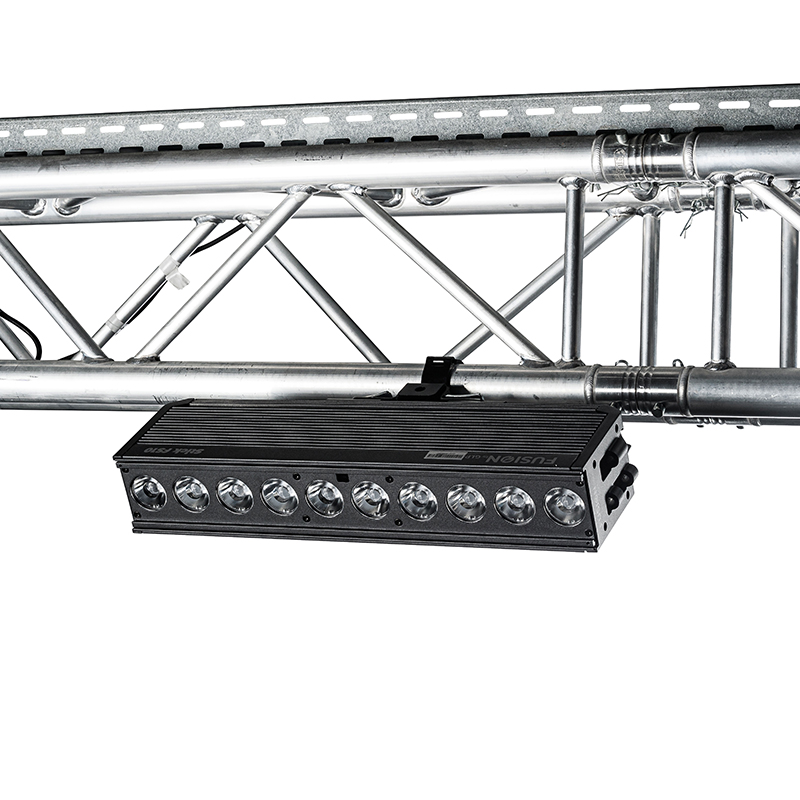

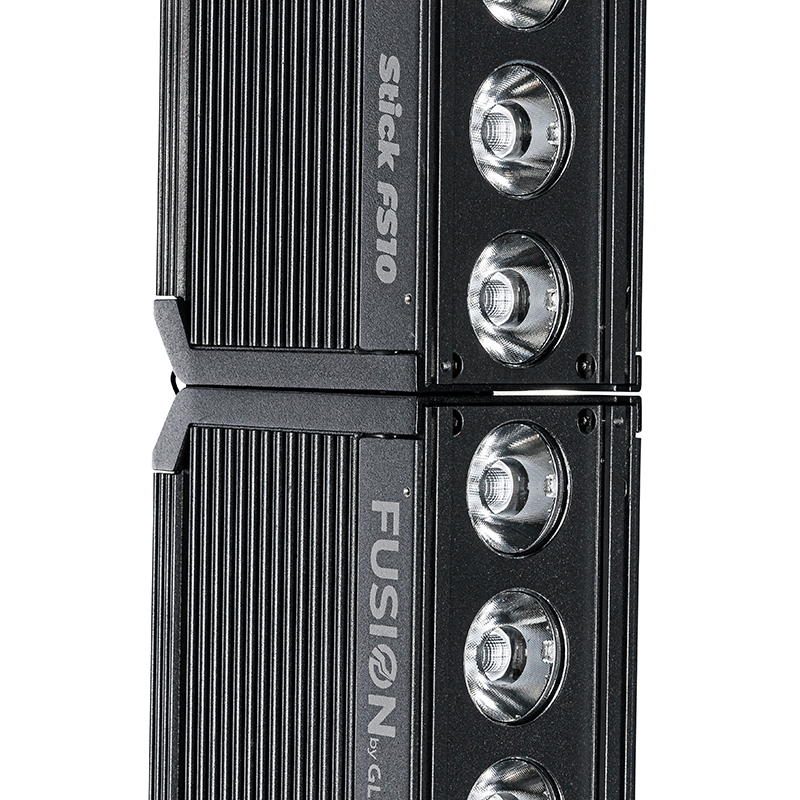

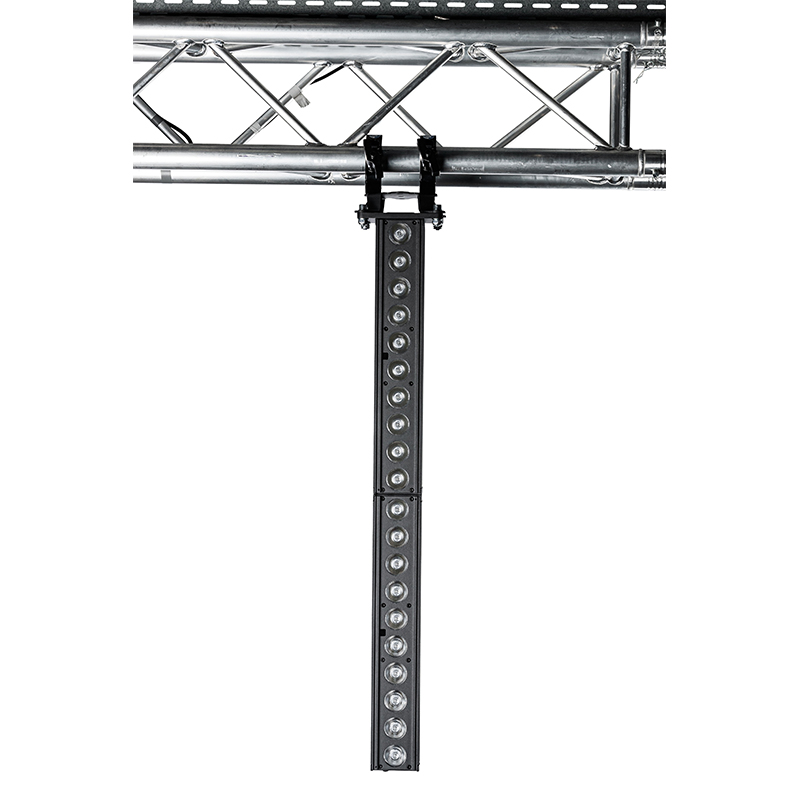

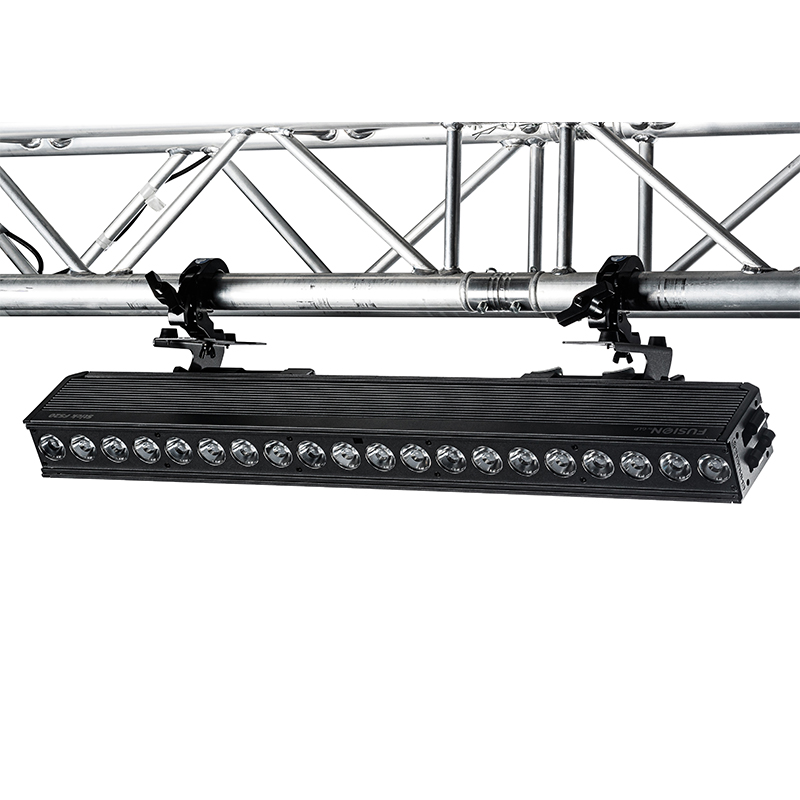

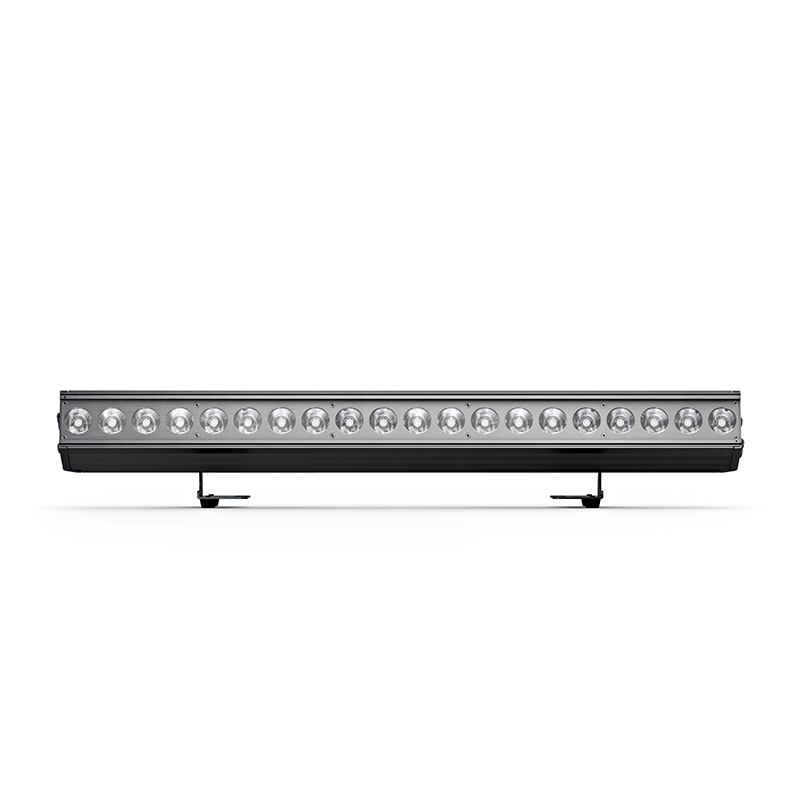

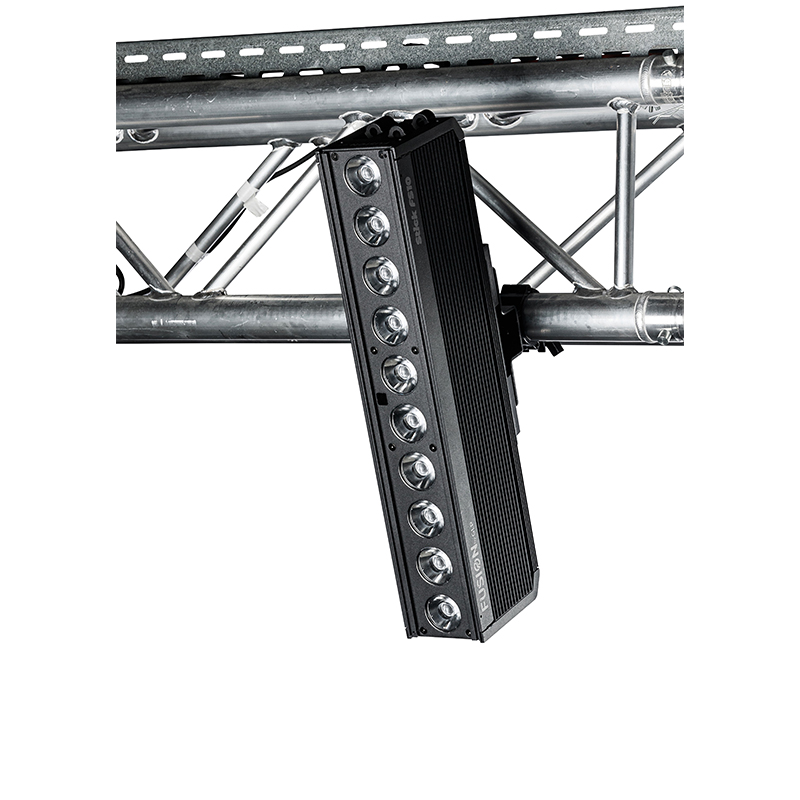

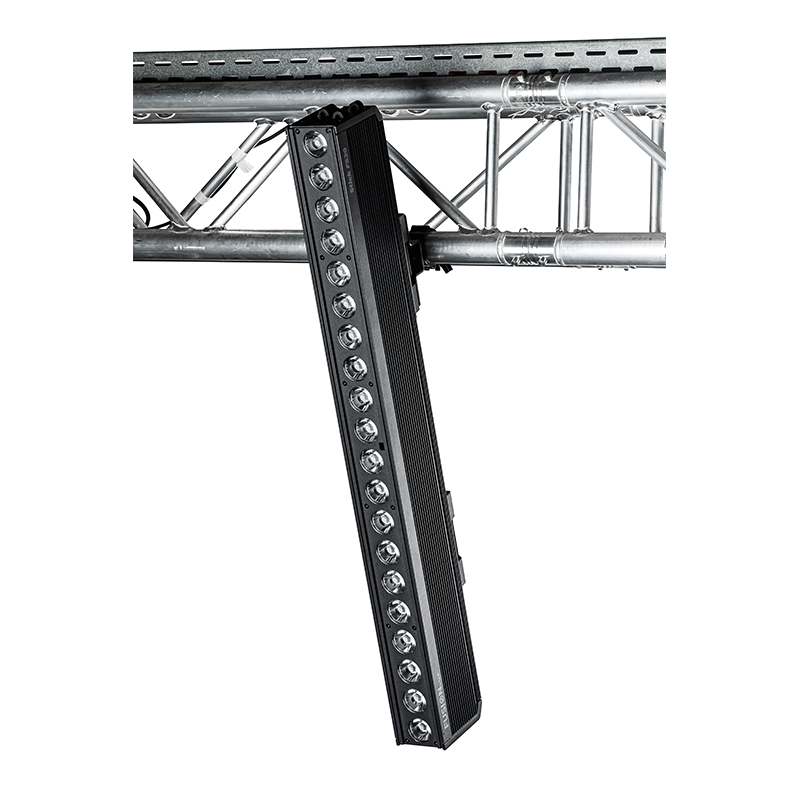

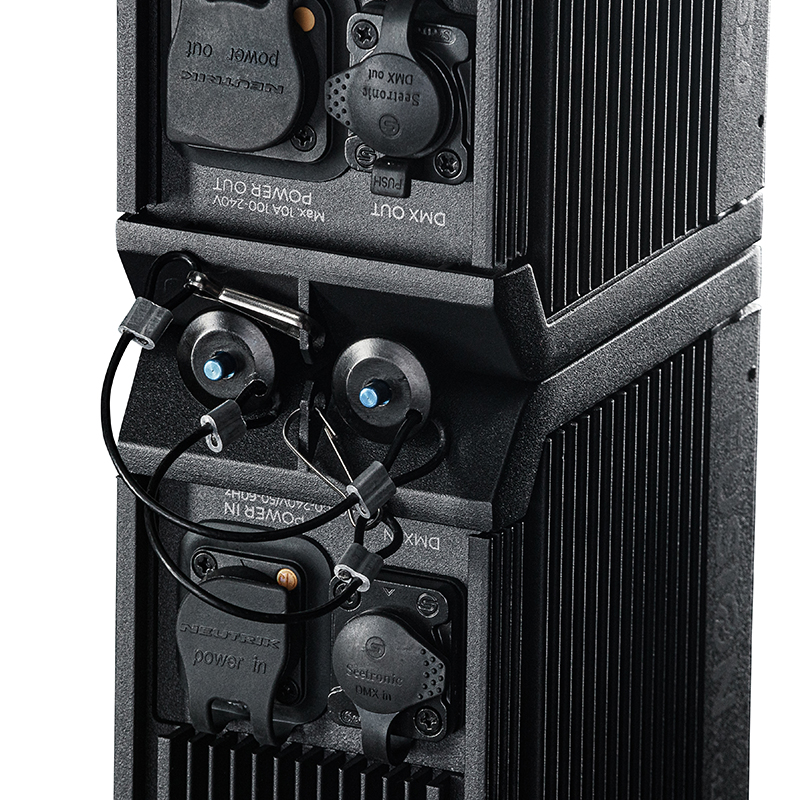

The Fusion Stick 20 features a clever and easy to use connector system, which allows the Fusion Stick to create seamless light lines in a similar fashion to GLP’s impression X4 Bar fixtures. These can be implemented in a horizontal or vertical set up.

The FUSION Stick has the ability to easily add various beam angle filters, including asymmetrical options, producing a perfectly homogeneous light output. The FUSION Stick features 20°, 40°, 60° and 60°x 10° diffuser plates which can be fixed to the front of the fixture. With these diffuser plates attached, the Stick outputs enough power to produce light beams that cut through modern stage designs.

As with all FUSION by GLP fixtures, the FUSION Stick fixtures feature an IP rating of 65, allowing for full outdoor use regardless of poor weather conditions. To that end, the Stick features a fanless design, which not only ensures an IP65 rating, but also enables silent operation for sound sensitive environments such as theatre or television.

The Stick fixtures feature FUSION’s SteadyColor™ technology which allows color mixing through the RGBW LED’s to remain exact through all dimming levels removing the possibility of color shifts and the need for single color correction.

Additionally, the Stick fixtures feature the uniquely designed ConsistentColor™ optic which creates the perfect balance of output and homogeneity, producing high quality light output without coronas or color shifts.

No matter what the application, the FUSION Stick is the right choice.





Contact us for more information on the FUSION Stick 20
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Light Source

  • 20 x 15 W RGBW LEDs
  • 20,000 lifetime hours



Control

  • 4 button OLED display
  • USITT DMX 512-A
  • Optional Wireless Lumen Radio CRMX DMX/RDM
  • 8 control modes



Effects

  • 0-100% electronic dimmer
  • Regular and random strobe
  • Pulse effects
  • Selectable dimmer curves



Connectors

  • XLR 5-pin
  • Neutrik powerCON True



Power

  • 100-240 VAC/50-60 Hz
  • Auto ranging electronic switch-mode
  • Max. 330 W @ 230 V



Operating Conditions

  • Temperature overheating protection
  • 113°F (45°C)
  • IP65

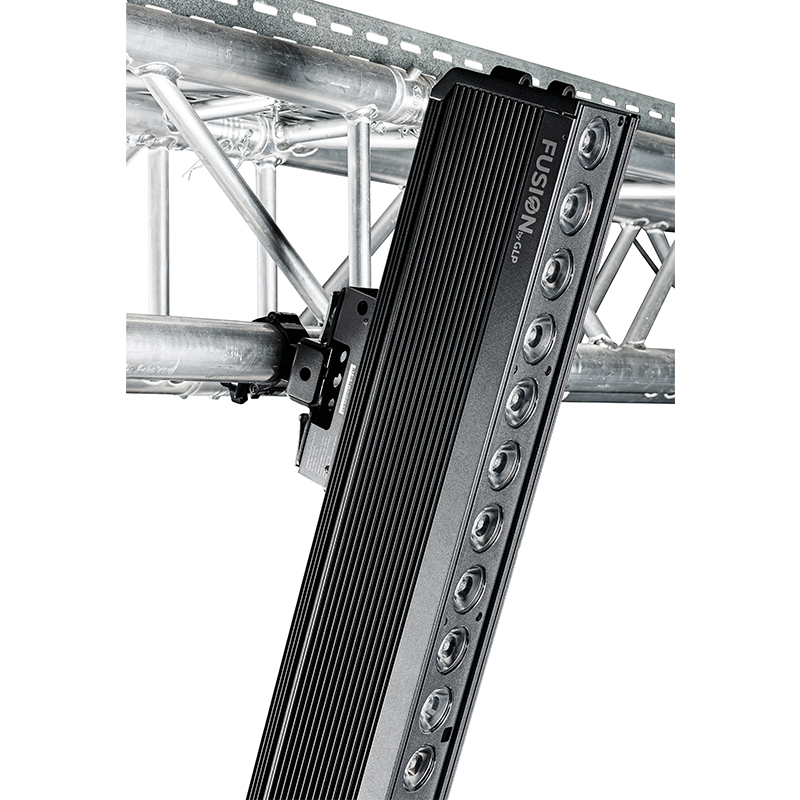

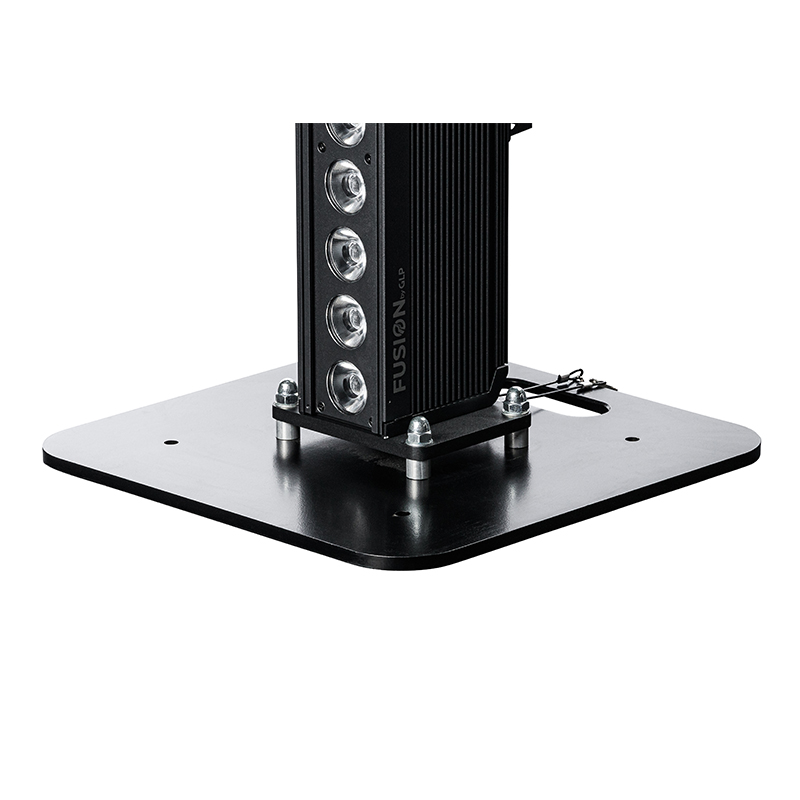

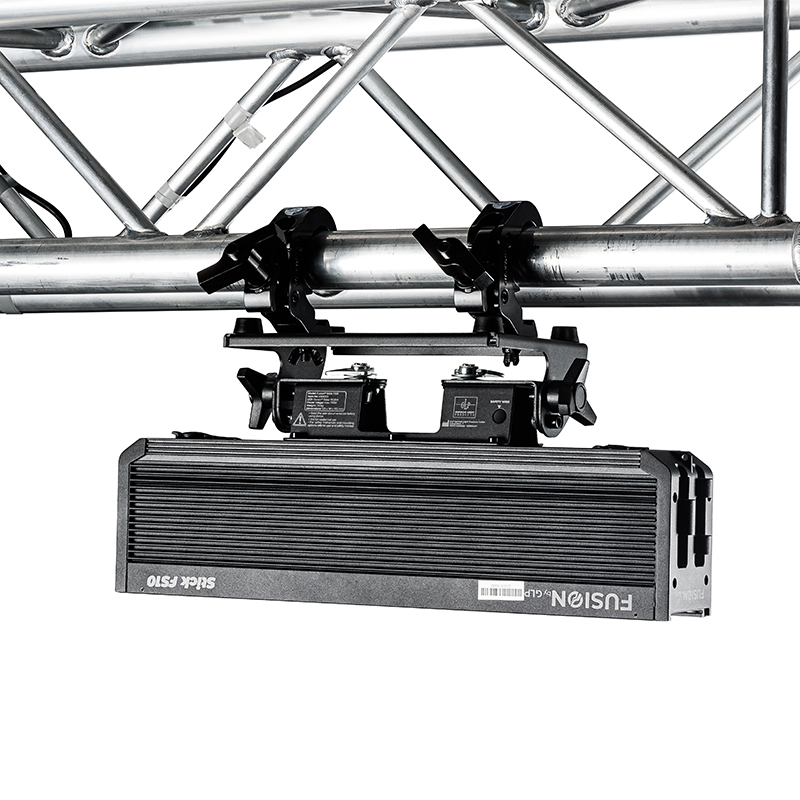

Mounting Options

  • 1 eyelet for safety wire attachment
  • M10 screw thread



Optical System

  • 6° beam angle



Dimensions

  • Height including bracket: 9.09 in. / 231 mm
    Height without bracket: 7.12 in. / 181 mm
    Width: 3.54 in. / 90 mm
    Depth: 39.60 in. / 1006 mm



Net Weight

  • Weight: 12.5 kg (27.6 lbs.)

Manuals

PDFIcon FS 20 User Manual

PDFIcon FS20 Quick Start Safety Manual

PDFIcon FS20 DMX Channel Index

CAD

ZIPIcon FS20 20 DWG_DXF

Fixture Libraries

ZIPIconFS20_Fixture_MA

ZIPIconGLP FUSION Stick FS20 Camsys

Firmware

ZIPIconFS20_V1034_

ZIPIconFusion_Updater_V103

Specifications

PDFIcon FS 10 & 20 Specification Sheet

Miscellaneous

PDFIcon Fusion Stick TUV Approval Certificate
