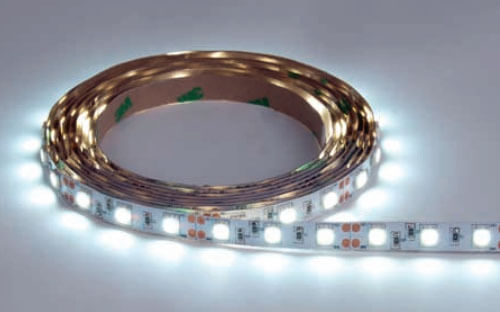

Cold White LED Tape | LED Strips from Scenex Lighting by GLP

Designs using Cold White LED Tape can incorporate different size pixel pitches to give you detail when and where you need it. To ease system integration, all tapes come in lengths already cut for a half or full DMX universe. Every tape can be trimmed to fit after every single pixel.

Additionally for cosmetic integration each tape can be supplied with a white or black PCB back.

Scenex also offer a range of different power supply and DMX drive options, including Artnet integration for larger systems.

We are happy to consult and advise on any system design Free of charge and without obligation, in order to help support and make your vision become a reality.

Contact us for more information on the Cold White LED Tape
Want to stay up to date with the latest from Scenex?
Click the link here to sign up for Scenex’s mailing lists

Part number	50503CW-60	50503CW	50505CW
Color	Cold white	Cold white	Cold white
Wavelength	n/a	n/a	n/a
Color temp	6500K-7000K	6500K-7000K	6500K-7000K
Lumens pr. mtr. / pr strip	840 / 2520	420 / 1260	420 / 2100
LED’s pr mtr / pr strip	60 / 180	30 / 90	30 / 150
LED type	SMD 5050	SMD 5050	SMD 5050
Field angle	120°	120°	120°
Housing material	Flexible strip with silicone covering	Flexible strip with silicone covering	Flexible strip with silicone covering
Color	White	White	White
Protection rating	IP 65	IP 65	IP 65
Mounting	Adhesive backing	Adhesive backing	Adhesive backing
Wiring connection	2 cable tail (V-, V+)	2 cable tail (V-, V+)	2 cable tail (V-, V+)
Power voltage	12V	12V	12V
Current pr mtr. / pr strip	14.4W / 43.2W	7.2W / 21.6W	7.2W / 36W
Energy saving class	Class A	Class A	Class A
Operating temp.	5°F – 104°F (-15°C – 40°C)	23°F – 104°F (-5°C – 40°C)	23°F – 104°F (-5°C – 40°C)
Cutting possibility	Every 1.9″ (5 cm)	Every 3.9″ (10cm)	Every 3.9″ (10cm)
Dimensions – inches	L x W x H 118.1″ x 0.4″ x 0.1″	L x W x H 118.1″ x 0.5″ x 0.1″	L x W x H 196.8″ x 0.47″ x 0.1″
Dimensions – centimetres	L x W x H 300 cm x 1.0 cm x 0.3 cm	L x W x H 300 cm x 1.2 cm x 0.3 cm	L x W x H 500 cm x 1.2 cm x 0.3 cm

Data Sheet

Scenex Lighting LED Tape

Scenex Lighting LED Tape Riser Diagram
