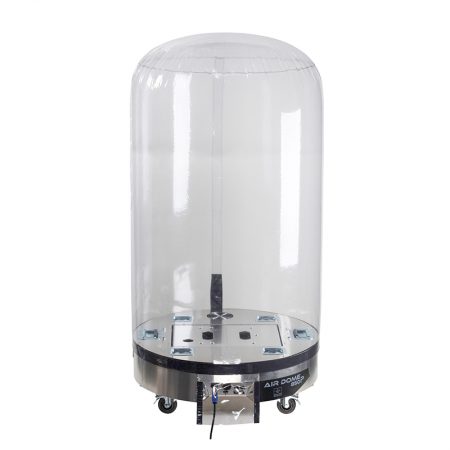

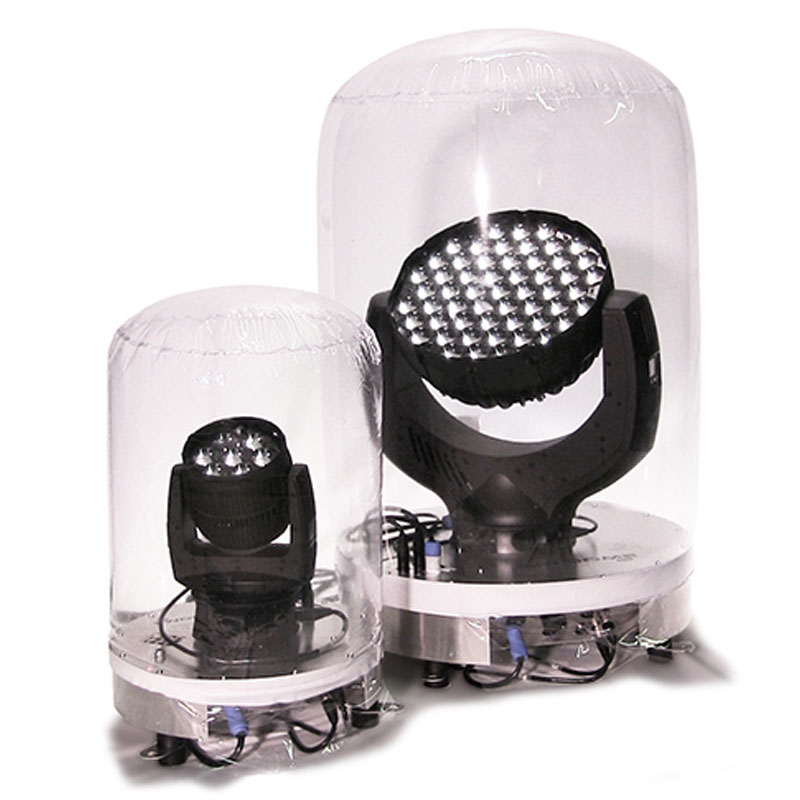

The GLP Air Domes provide a secure rain cover enclosure for fixtures that need to be protected from the environment in an IP54 package that is fast and easy to set up and remove. With three sizes available, even small fixtures can remain unobtrusive, yet safely protected from rain, snow and other outdoor elements.

The Air Domes feature auto sensing power input, along with both 3 pin and 5 pin XLR data connectors, allow the Air Domes to be used with a wide variety of fixtures on the market.

Standard features on all Air Dome models include sensor controls to monitor air pressure inside the dome. As well as easily visible warning LED’s, holders for ground anchors, separate power controls for the fixture and the fan. Additionally 4 selectable fan speeds can be selected depending on the situation.

Each Air Dome rain cover can be floor mounted or hung with an accessory kit.

When floor mounted , the Air Dome uses its solid rubber feet that keep connectors away from the ground and offer a firm and stable footing.

GLP Air Domes come complete with clear protective covers. These attach quickly via a solid, reusable hook and loop system that requires no tools to setup, allowing the unit to take up very little space when being transported or stored.

Unobtrusive, practical and versatile are the key elements that make the GLP Air Dome, a must have item for when you don’t know what the weather will throw at you.





Contact us for more information on the Air Domes
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Product Features

  • Robust construction
  • 4 level high speed fan for fast deployment
  • Sturdy rubber feet keep Air Dome elevated from dirt and standing water
  • Strong, sure hook and loop material for cone attachment
  • Auto ranging power supply 100-240 V, 50/60 Hz
  • Can be run with or without lighting fixture inside
  • Fitted with pass thru power / data connectors for fixture use
  • No tools required for assembly



Data Connections

  • DMX: 5 pin and 3 pin XLR in and out



Power Supply

  • Fan power consumption: 410 Watts
  • Power input: auto sensing 100-240V AC / 50-60 Hz.
  • Neutrik Powercon



Protection Rating

  • IP 54 rated



Dimensions

  • Air Dome 400
    (L x W x H): with cover

    • 15.9 in. x 15.9 in. x 26 in. (40 cm x 40 cm x 66 cm)
    • Envelope size inside height: 20 in. (51 cm)
  • Air Dome 600
    (L x W x H): with cover

      • 23.8 in. x 23.8 in. x 41 in. (60.5 cm x 60.5 cm x 104 cm)
      • Envelope size inside height: 32 in. (81 cm)

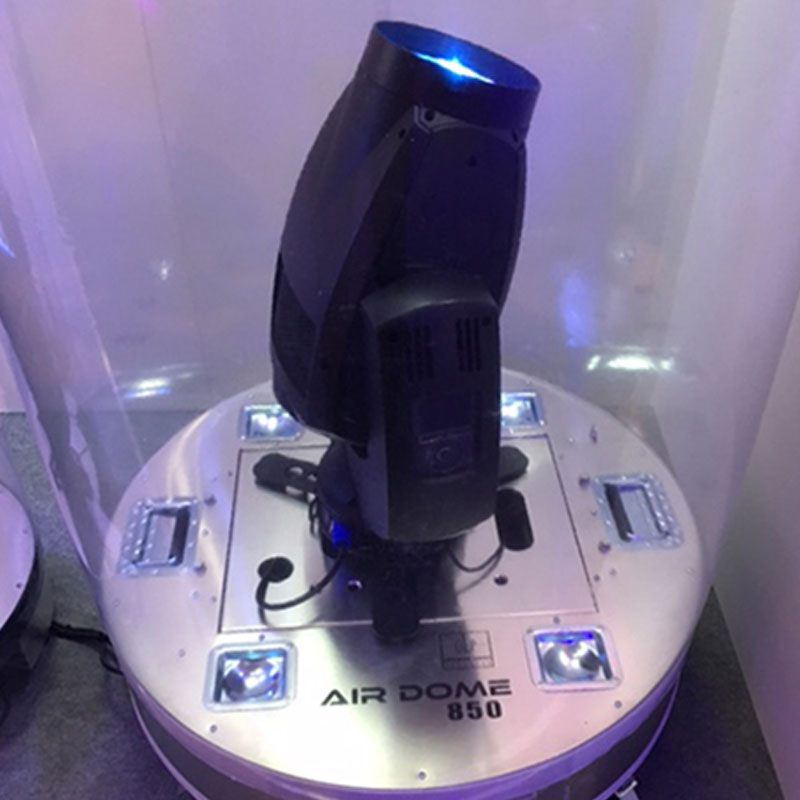

  • Air Dome 850
    (L x W x H): with cover

      • 33.5 in. x 33.5 in. x 63 in. (85 cm x 85 cm x 160 cm)
      • Envelope size inside height: 49 in. (124.4 cm)



Weight

  • Air Dome 400 – 14.3 lbs. (6.5 kg)
  • Air Dome 600 – 23.1 lbs. (10.5 kg)
  • Air Dome 850 – 32 lbs. (14.5 kg)

Specifications

PDFIcon PDF Hanging Kit 600 Product Description

PDFIcon PDF Hanging Kit 850 Product Description

PDFIcon PDF Air Dome 400 Specification Sheet

PDFIcon PDF Air Dome 600 Specification Sheet

PDFIcon PDF Air Dome 850 Specification Sheet

Manuals

PDFIcon PDF Air Dome 400 Manual

PDFIcon PDF Air Dome 600 Manual

PDFIcon PDF Air Dome 850 Manual
