X4 atom Free Connect


X4 atom Free Connect

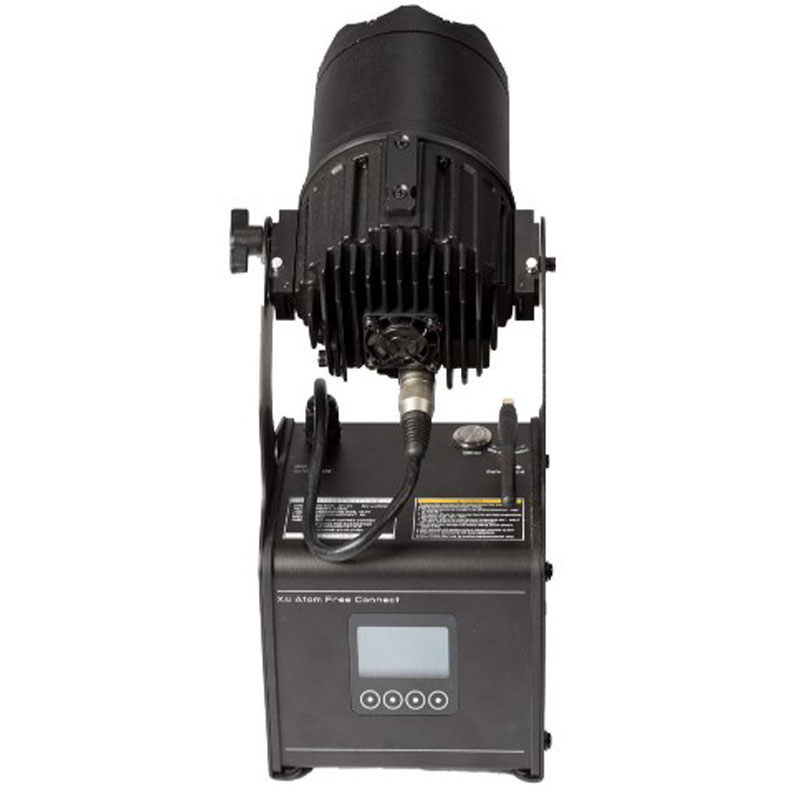

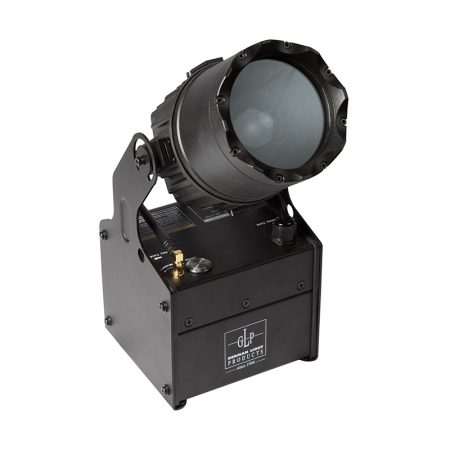

The Free Connect unit for the X4 atom from GLP, Giving you the freedom to use individual atom heads in any location.

Completely free of wires the Free Connect contains a rechargeable battery and inbuilt Lumen Radio CRMX wireless DMX control. Allowing you to place and control the impression X4 atom fixture anywhere, with as few restrictions as possible. These features are packed into a smart and compact housing that features an IP65 rating, matching the X4 atom head.

An 8-hour running time at full power offers long lasting usage, as well as a charging socket on the base allows for fast and easy recharging should it be required.

An on-board menu allows you to customize the operation of each atom. And includes direct manual control of the connected head, long with the ability to store a DMX snapshot at any time for simple playback when a controller is not needed.

The Free Connect is a handy and affordable accessory for the impression X4 atom. Allowing users to connect their existing fixture heads anywhere regardless of what the situation demands. Giving users greater flexibility by adding yet another level of versatility to the Atoms’already impressive ability.


Contact us for more on the Free Connect

Summary of Main Features


  • 2.5”  (5.7 cm) Backlit graphic LCD menu

Wireless DMX connectivity:

  • Lumen Radio CRMX, and all compatible systems


  • UN 38.3 – Approval for international air and sea transportation


  • UN 3481
  • UN 3481

X4 Atom free Connect Specifications


  • 8 Hours battery life with continuous usage
  • 2,000 recharges minimum
  • Li-ion 2600mAh rated

Power supply

  • Mains voltage: 100-240 VAC / 50-60Hz

Cable connectivity:

  • Built-in 4 pin XLR cable

Operating Conditions:

  • IP65
  • Charging temp. 0°C – 45°C   (32°F – 113°F)
  • Operating temperature -20°C – 60°C  (-4°F – 140°F)

Mounting options:

  • 3 x M10 socket for half coupler, or other clamp
  • 2 attachment points for safety wire
  • Any orientation


  • Cardboard box

Housing Colors:

  • Standard color is black
  • For other colors please contact sales department.


  • (L x W x H)
    • 5” x 6” x 10.25”   (13.97 cm x 15.24 cm x 26.035 cm)

Net Weight:

  • 8 lbs.  (3.63 kg)

Data Card

PDFIcon PDF product card X4 atom Accessory

User Manual

PDFIcon PDF X4 Atom Free Connect_1.1
