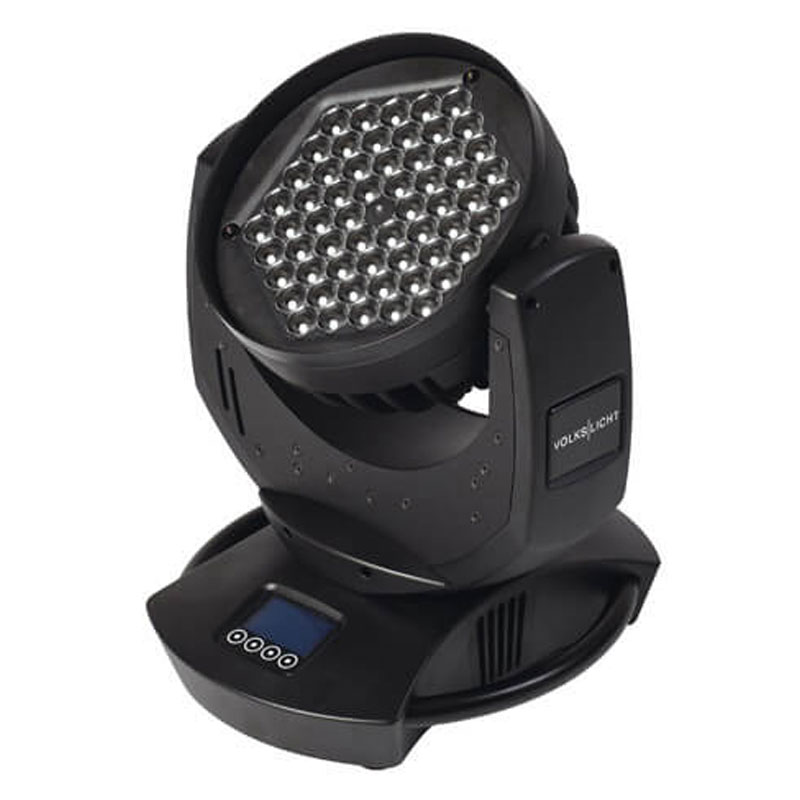

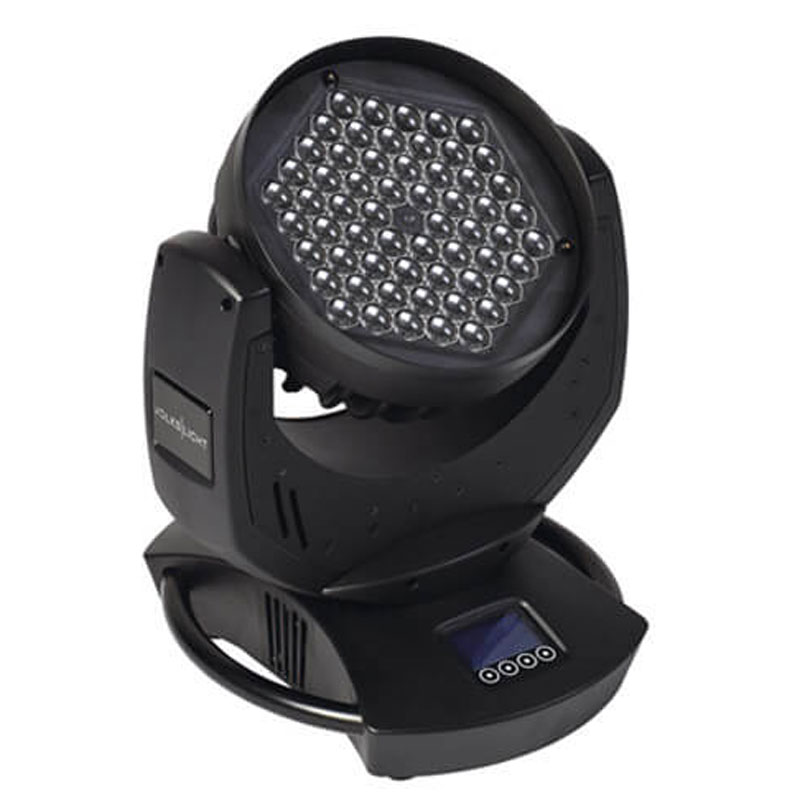

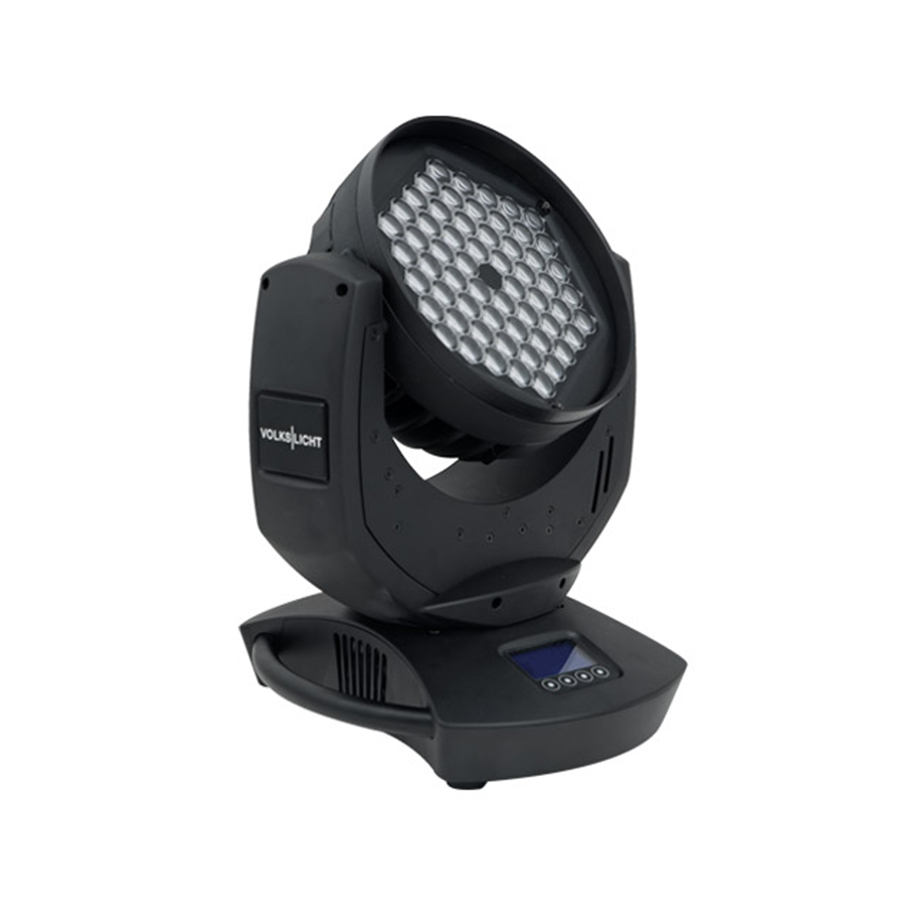

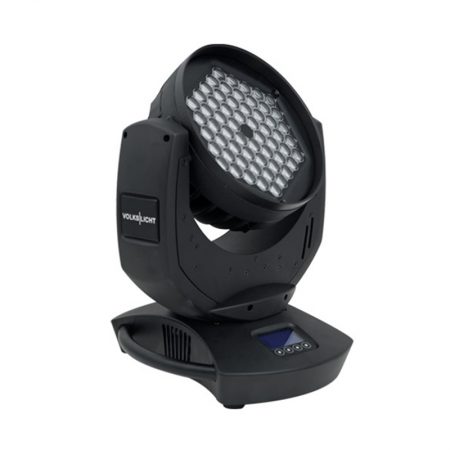

volkslicht zoom

The Volkslicht Zoom combines the best technology features with the footprint and weight of a small and unobtrusive fixture. The fixture has a motorized zoom, changing its beam size from 10 to 26 degrees, whilst maintaining a strong output.

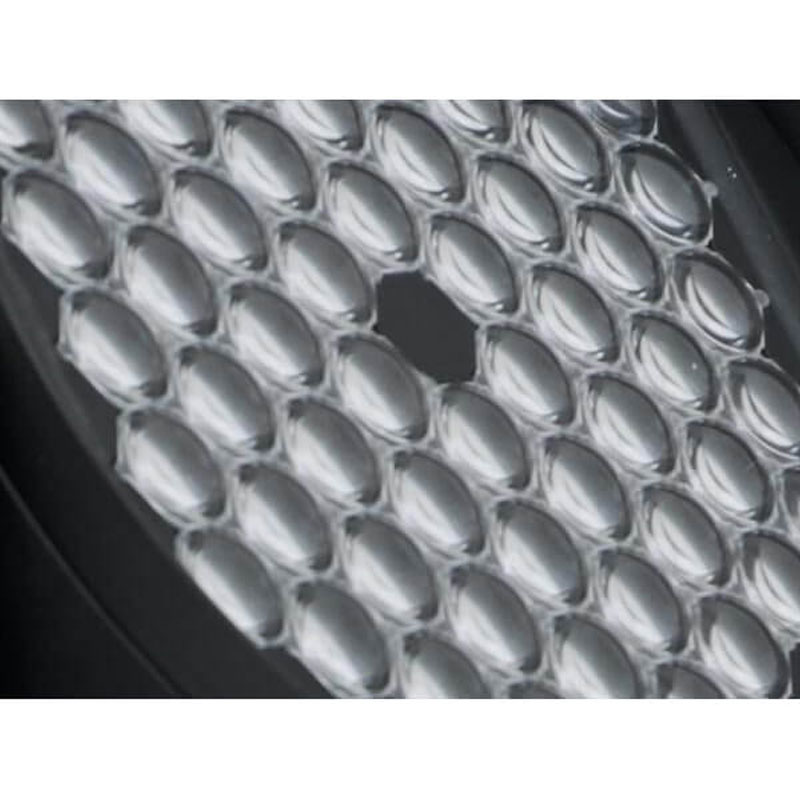

The Volkslicht Zoom uses 60 Luxeon Rebel LEDs in an RGB configuration, giving a broad mixing palette of colors from its primary saturates, through to the more subtle pastel shades.

Being small and light means it also has speed, the pan and tilt move at incredibly fast speeds, almost enough to match the solid state LEDs themselves!





Contact us for more information on the Volkslicht Zoom
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

rgb2 rebel2

Lighting System

  • Additive color mixing
  • LED type 60x Luxeon Rebel high powered LEDs
  • Lifetime 50,000 hours

RGB Model

  • 21 green LEDs, 21 blue LEDs, 18 red LEDs, wavelength optimized for a maximum presentable color space

Optical System

  • Motorized zoom 10° – 26°

Shutter / Dimmer

  • Strobe – effect with variable speed between 1 – 10 flashes per second, random – strobe, pulse effects
  • Continuous dimmer 0 – 100%

DMX Control

  • Standard USITT DMX-512, 5 pole XLR
  • DMX- addressing starts at the DMX channel [001].

Power Supply

  • Power consumption: 180 VA (Watt)
  • Power input: ~100 – 240V AC, 50-60 Hz (wide range input)
  • Fuse protection: micro fuse 5x20mm, T 4A

Operating Conditions

  • Maximum ambient temperature: 113°F (45°C) (integrated overheating switch)
  • Mounting position fully operational whether it hangs or is mounted to the wall.

Approvals

  • ETL safety approved
  • US safety approved: UL 1573 and UL 8750
  • Canadian safety approved: CAN/CSA C22.2 No. 166

Dimensions

  • L x W x H (head vertical):  9.5 in. x 11.2 in. x 14 in. (24.2 cm x 28.5 cm x 35.6 cm)

Net Weight

  • 17.2 lbs. (7.8 kg)

Manuals

PDFIconVolkslicht Zoom RGB User Manual V1.6

PDFIconVolkslicht Zoom RGB DMX Layout V1.2

Illustrations

ZIPIconVectorworks GLP Library_v2014

ZIPIconVolkslicht_2D DWG 1

ZIPIconVolkslicht 2D DWG 2

ZIPIconVolkslicht 3D DXF

Photometrics

PDFIcon Volkslicht Zoom RGB Photometric

Specifications

 PDFIconVolkslicht Zoom Specifications
