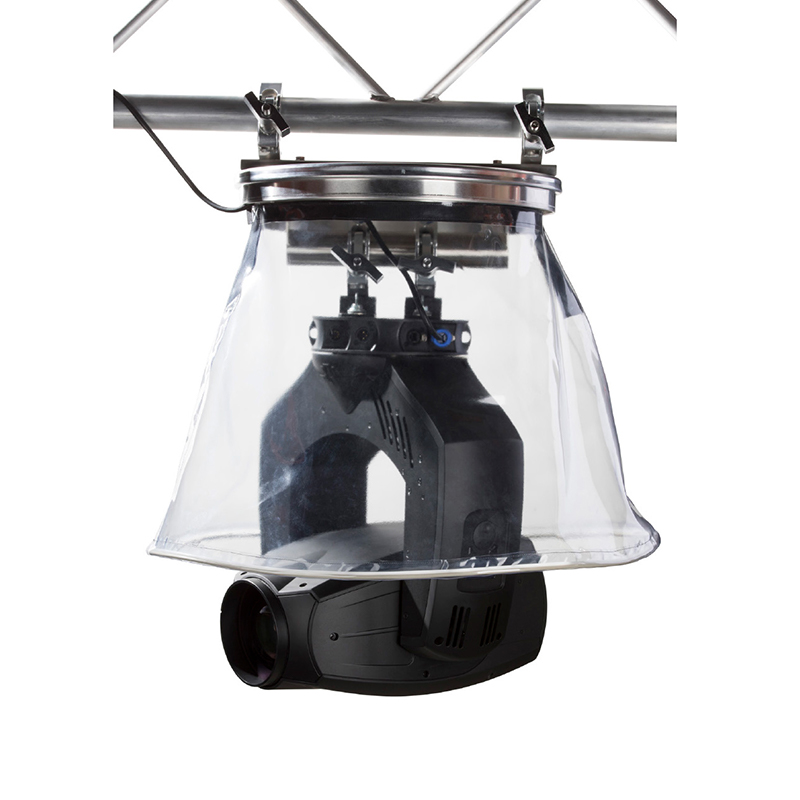

The GLP Rain Covers offer almost complete protection from the elements, without interfering with the light beam or a fixtures movement. Designed to fit perfectly over our impression series fixtures, the Rain Cover will work with the largest of fixtures or pieces of equipment, ensuring those without outdoor certification will be safe come rain, hail, or snow.

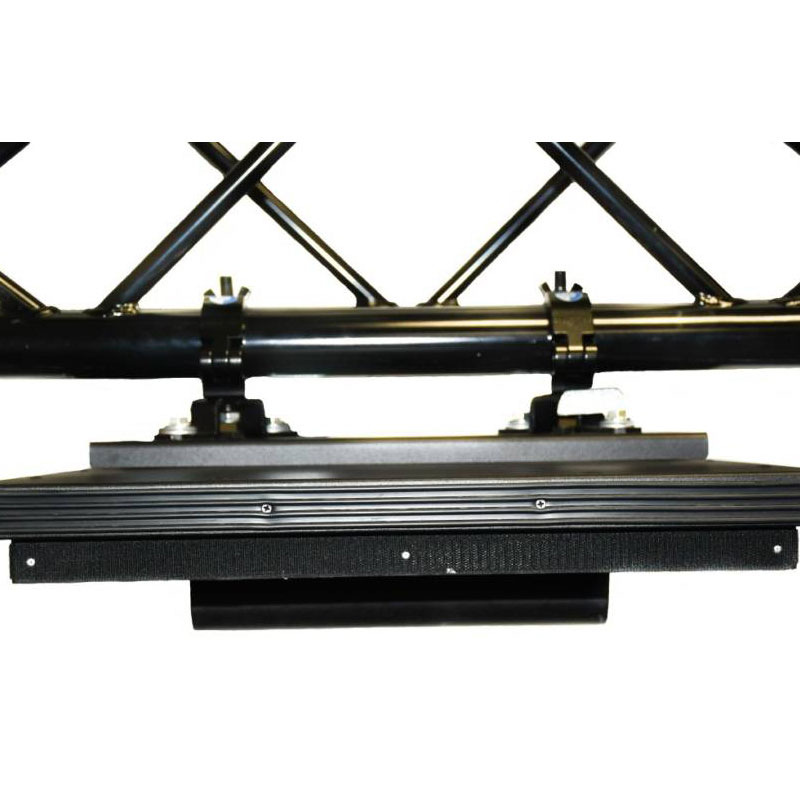

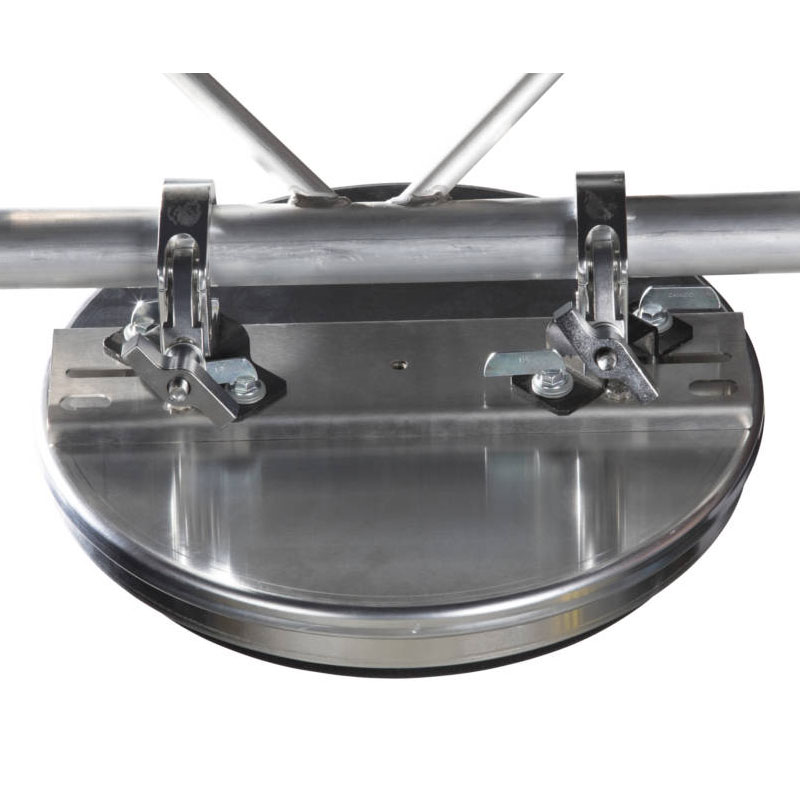

The Rain Cover bases come in three sizes; two in a round form with outside diameters of 17.7 in. (45cm) & 26.4 in. (67cm), and one in a square form measuring 19.7 in. (50cm) designed specifically to fit into pre-rig truss.

The Rain Covers can be used on both large and small lighting fixtures, along with other pieces of equipment such as projectors. The Rain Covers are lightweight, and easily mountable to truss, pipes, and other structures.

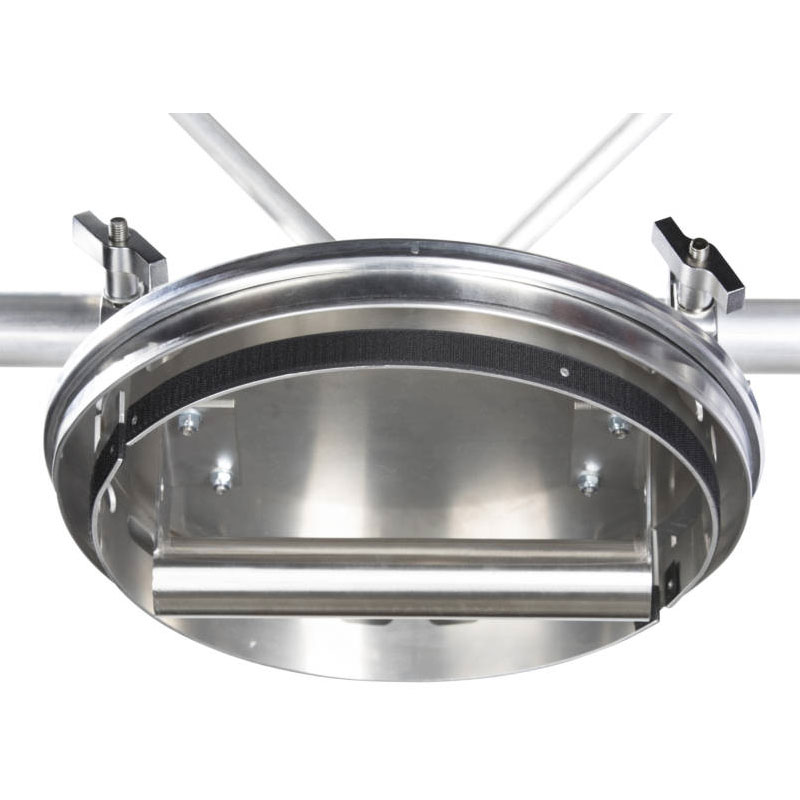

The Rain Cover bases offer a much lighter and simpler alternative to more traditional dome style covers. With a simple hook and loop attachment, a Rain Cover can be quickly put up and taken down. This significantly reduces set up time, especially in unpredictable conditions.

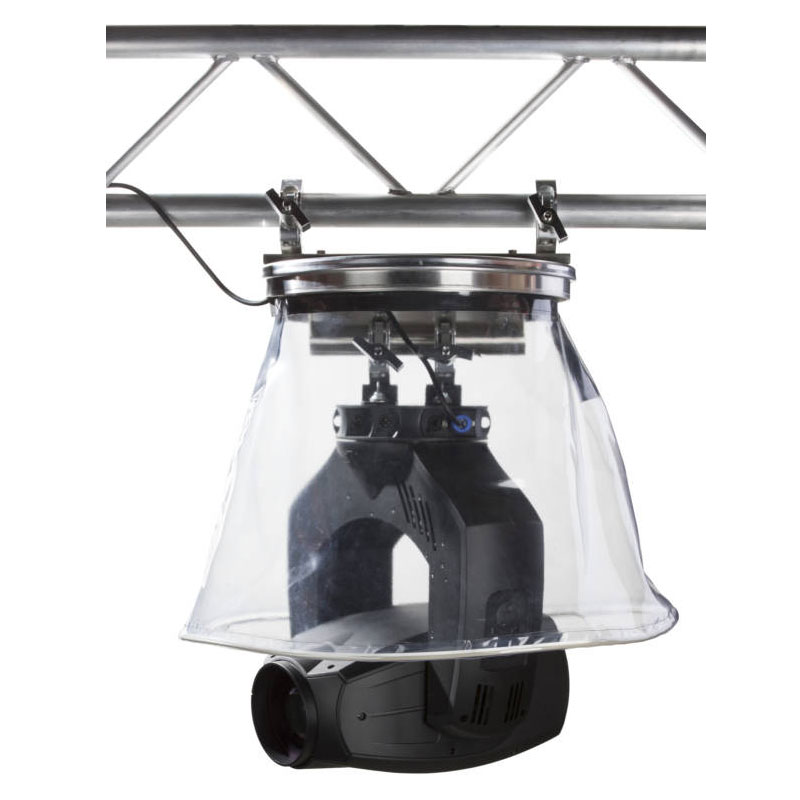

Each of the three bases can be fitted with one of six different plastic ‘skirts’ that protect your equipment. Four of the covers are made in a straight circular format, whilst two are conically shaped to accommodate moving lights with long bodies. This means that the same base can be used with a variety of different sized fixtures, by using larger or smaller covers.

All of the covers are certified to B1 fire retardancy of the EN 13501 standard for full safety.



Contact us for more information on the Rain Covers 400, 500, & 600
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists

Product Features

  • Robust construction

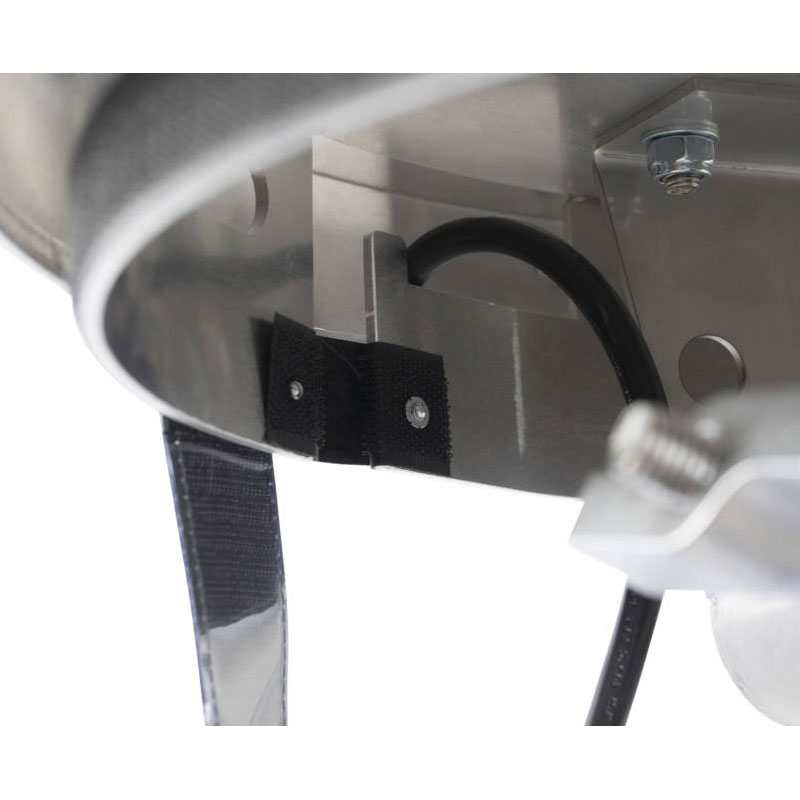

  • Easy and durable cable entry
  • Hanging options

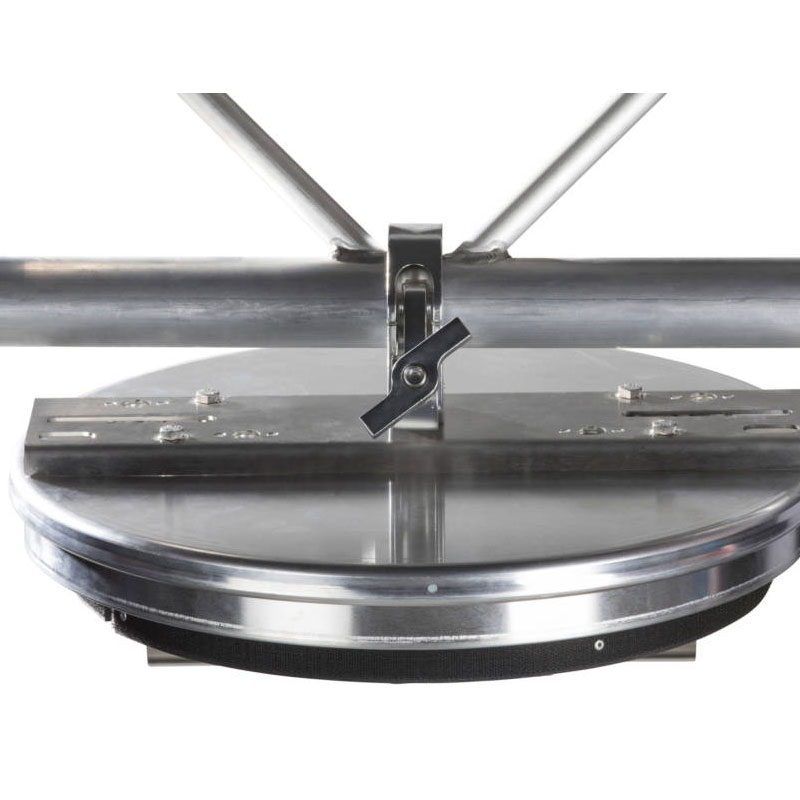

    • One hook

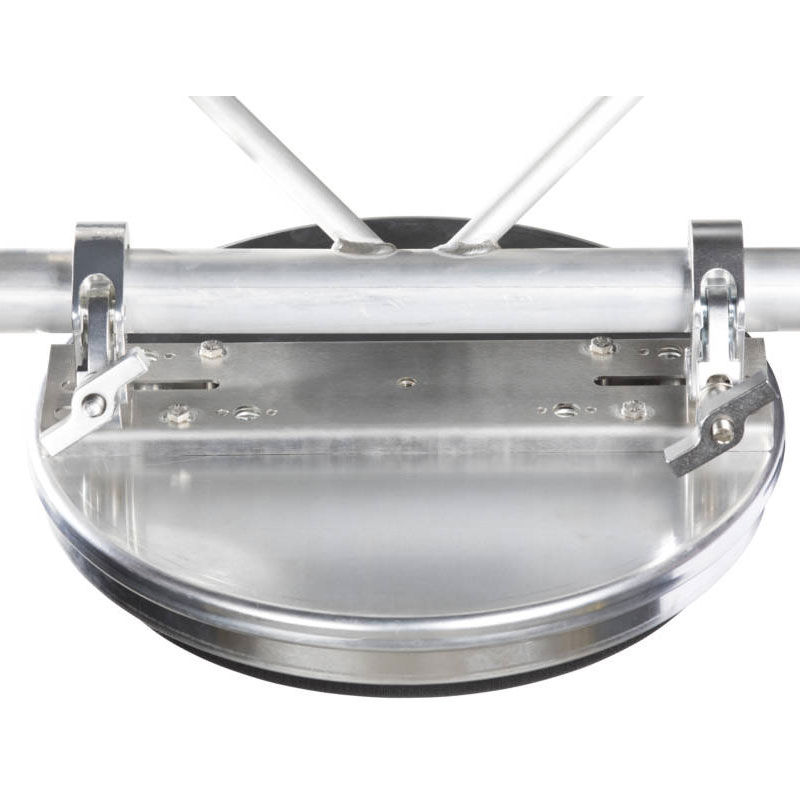

    • Two hooks
    • Omega brackets
  • Variety of plastic skirts available
  • Simple and fast deployment

Rain Cover Base

Dimensions

  • Rain Cover 400 (Outside diameter x height)
    • 17.7 in. x  5.6 in. (450 mm x 142 mm)
    • Part number 7172041 – aluminum finish
    • Part number 7172041B – black finish
  • Rain Cover 500 (length x width x height)
    • 19.7 in. x 19.7 in. x 6 in. (500 mm x 500 mm x 152 mm)
    • Part number 71725001-BASE
  • Rain Cover 600 (outside diameter x height)
    • 26.4 in. x 5.6 in. (670 mm x 142 mm)
    • Part number 7172061 – aluminum finish
    • Part number 7172061B – black finish

Weight

Rain Cover 400

  • 8.8 lbs. (4kg)

Rain Cover 600

  • 20.5 lbs. (9.3kg)

Construction

  • Aluminum

Plastic skirts for Rain Cover sizes:

  • For Rain Cover 400
    • S: 11.8 in. / 30 cm height, straight cover – part number 7172042
    • M: 17.7 in. / 45 cm height, straight cover – part number 7172043
    • L: 23.6 in. / 60 cm height, straight cover – part number 7172044
    • XL: 29.5 in. / 75 cm height, straight cover – part number 7172045
    • M: 16.5 in. / 45 cm height, conical cover – part number 7172051
    • L: 23.6 in. / 60 cm height, conical cover – part number 7172052

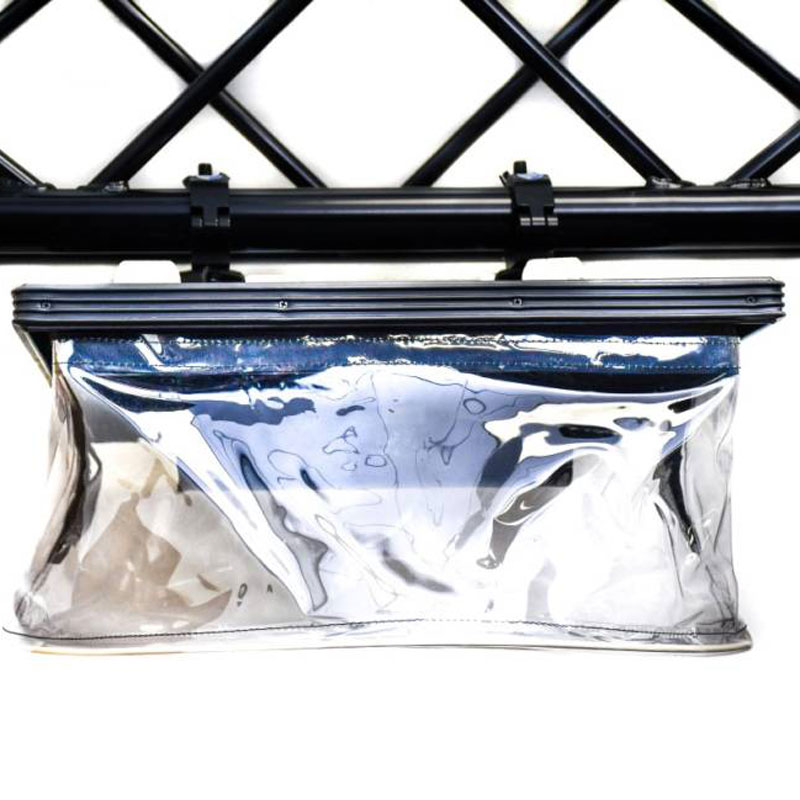

  • For Pre-Rig Rain Cover 500
    •  S: 11.8 in. / 30 cm height, Straight cover- part number 71725101
    •  M: 17.7 in. / 45 cm height, Straight cover – part number 71725102
    •  L: 23.6 in. / 60 cm height, Straight cover- part number 71725103
    •  XL: 29.5 in. / 75 cm height, Straight cover – part number 71725104
    •  L: 24.4 in. / 62 cm height, conical cover- part number 71725105
    • XL: 24.4 in. / 62 cm height, conical cover – part number 71725106
  • For Rain Cover 600
    • S: 11.8 in. / 30 cm height, straight cover – part number 7172062
    • M: 17.7 in. / 45 cm height, straight cover – part number 7172063
    • L: 23.6 in. / 60 cm height, straight cover – part number 7172064
    • XL: 29.5 in. / 75 cm height, straight cover – part number 7172065
    • M: 16.5 in. / 45 cm height, conical cover – part number 7172071
    • L: 23.6 in. / 60 cm height, conical cover – part number 7172072
