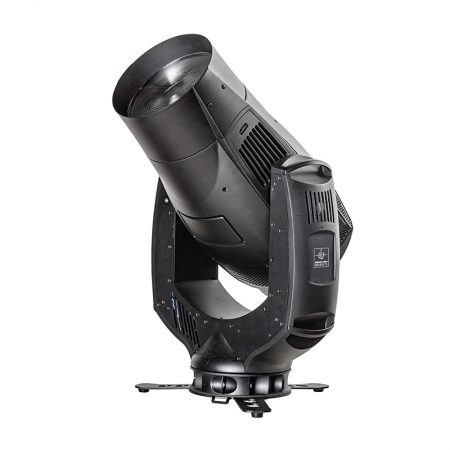

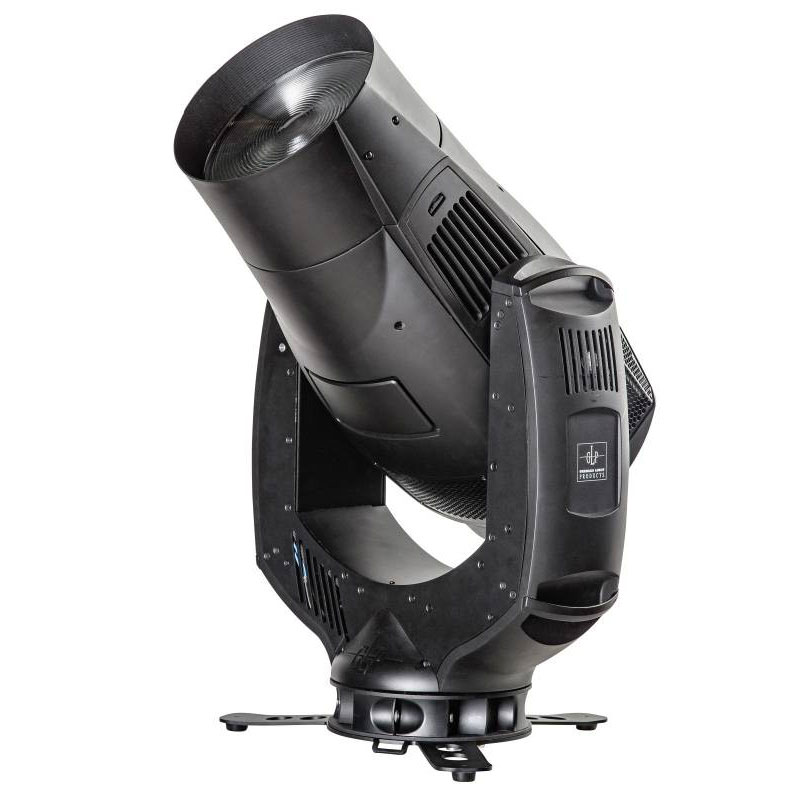

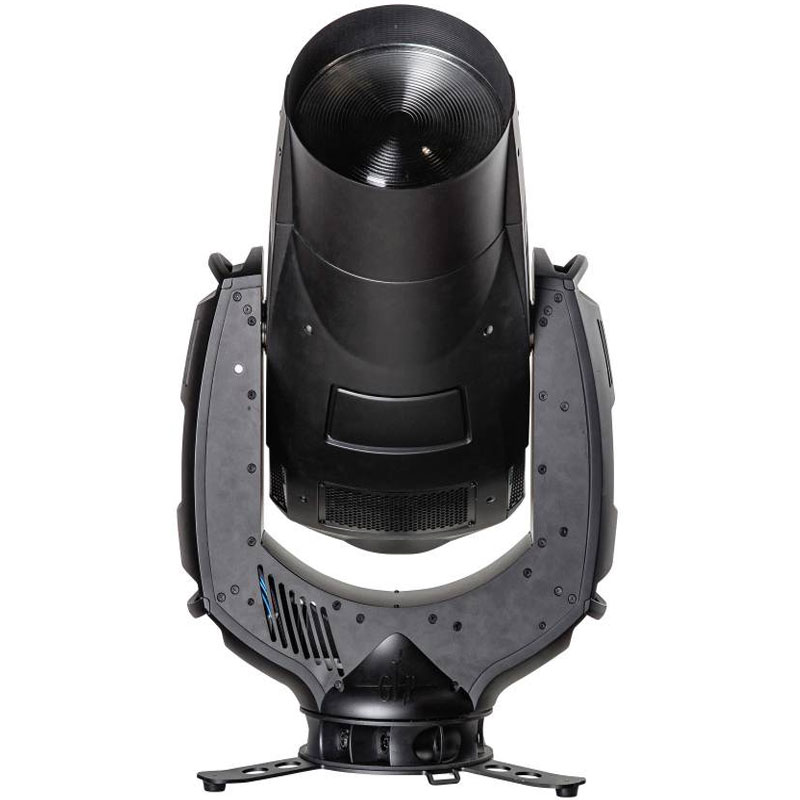

Highlander Wash

Description

The Highlander Wash is the next generation of discharge lamp wash light, bringing new levels of high performance, high output and high quality from a compact discharge source and a superior optical system. The Highlander features a powerful 1,400W discharge lamp producing high quality light output, combined with a tight beam angle and modern efficiency.

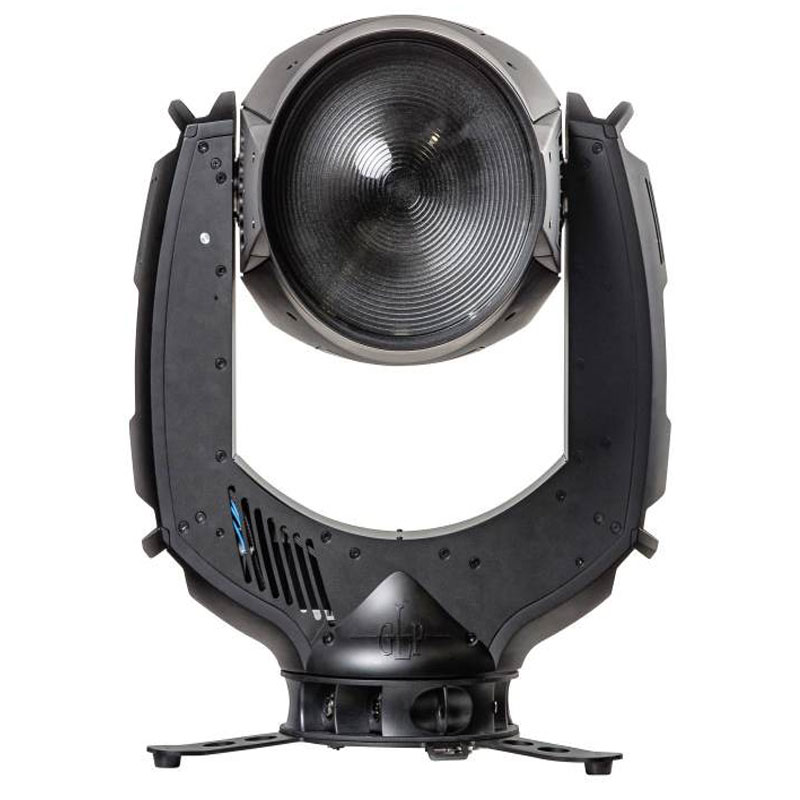

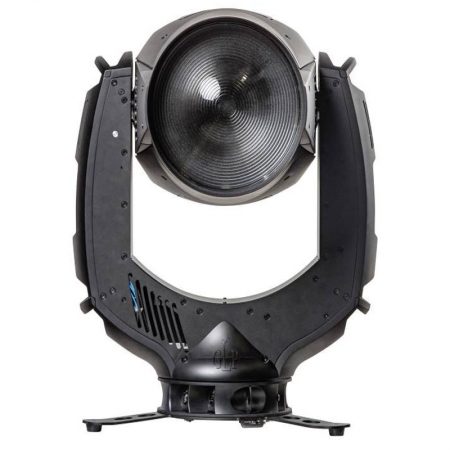

Using a 1,400 Watt lamp and outputting through a large 230mm / 9 inch front lens, the GLP Highlander delivers a truly massive light output, without ever sacrificing quality. With a native color temperature of 6,000K, the Highlander optics have CRI, CQS and TM-30 quality indices all measuring 90 and above.

The Highlander’s high output optical system produces a tight 5 degree beam up to a wide 63 degree field. Beam control is available through an independent and snappy motorized iris, but also through a full feature framing system. This framing system gives 4 blade control with each blade being able to tilt on its axis and cross the entire beam like a curtain. With separate control over each blade, the beam can be controlled down to the finest detail, and recalled in an instant. The entire beam framing system can also be rotated through a 90 degree range for optimum control.

A glass, dichroic based cyan, magenta and yellow color system gives a full color pallet from the softest pastel shades to full saturation, and anything in between. This is supported by two separately controlled color wheels, each with 7 color positions plus open. The whole color output can also be temperature control anywhere from 2700K to 6000K using a further separate optical wheel. All combined, this gives the GLP Highlander a comprehensive color range adaptable to any color temperature environment that it gets placed in.

Additional control features of the Highlander include smooth dimming with multiple user-selectable curves, separate shutter control with built in macros, fast 16 bit pan and tilt movement and low noise operating modes.

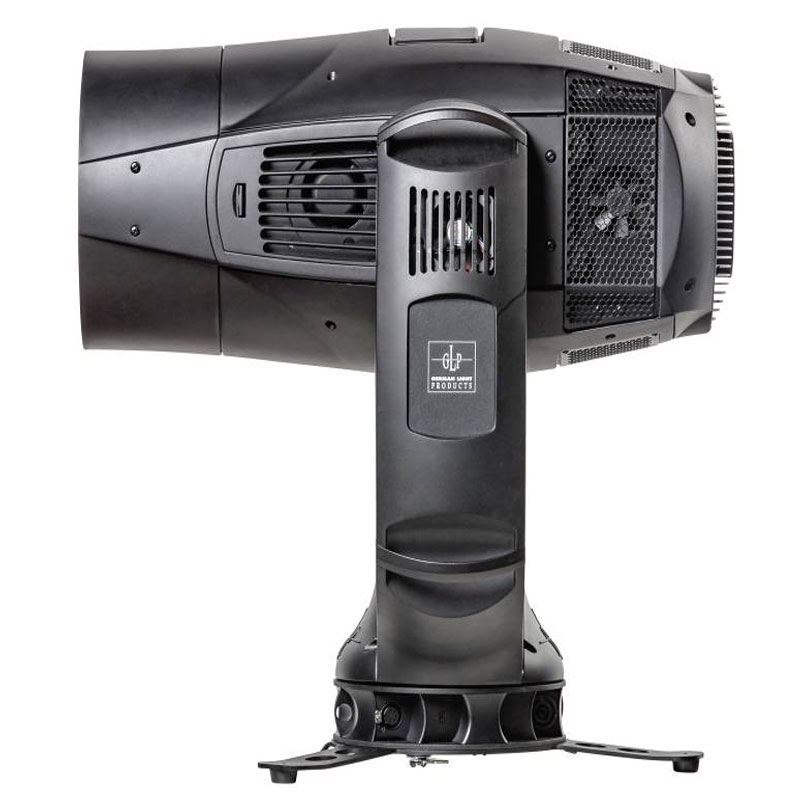

The GLP Highlander is designed with a compact, baseless design that allows the unit can to be hung in any orientation. Power is connected via Neutrik True1, whilst data is connected via 5 pin XLR or Ethernet, with DMX, ArtNET or sACN as available control options.

The Highlander runs flicker free and has numerous additional convenience features including a battery powered control system for addressing and configuration without mains power; an auto sensing power supply; 4 carrying handles and a comprehensive set of rigging options. This, combined with its low weight of just 29.5 kg / 65 lbs., make the GLP Highlander a truly versatile workhorse.

Power, control and capability all come together in the GLP Highlander, raising the level of performance for designers needing a high output washlight.

The GLP Highlander – there can be only one!

Contact us for more on the Highlander Wash



Summary of main features

Light Source

  • lamp Type: discharge lamp 1,400 W
  • Lifetime: 20,000 h
  • Color Temperature: 6,200 Kelvin
  • CRI: 90
  • TLCI(Qa): 90
  • CQS: 90
  • Rg: >90
  • Rf: >85
  • Lightoutput: 20,000 lm

optical system

  • Min. Zoom: 6°
  • Max. Zoom: 63°
  • Focus: motorized 2m – infinite

Movement

  • pan: 640
  • tilt: 262

effects

  • 2 wheels
    • Saturated colors, 7 positions + open
    • Pastel colors, 7 positions + open
  • Color mixing
    • 2 Flag CMY
  • 4 blade framing system
    • +/- 30º blade tilt
    • +/- 45º framing rotation
  • Iris: variable 0-100%
  • CTO: 6,000k – 2,700k



Power

  • auto ranging PSU
    • 100-200V AC 50/60Hz @ 1,000W
    • 200-240 V AC 50/60Hz @ 1,400W

Connectors

  • DMX Data
    • XLR 5-pin in/out
  • Mains Power
    • Neutrik TRUE1 Input

Operating conditions

  • Maximum ambient temperature:  115°F  (45°C)
  • IP 20

Mounting options

  • Upright: Removable tripod base (supplied) with brackets for ratchet belt
  • Hanging: 2 x M10 socket for half coupler, or other clamp
    • Omega brackets (optional)
  • 2 attachment points for safety wire
  • Any orientation

Shipping

  • Cardboard box
  • 2 way tourpack complete with omega brackets and stacking flight case

Housing colors

  • Standard color: black
  • optional: Special colors on request

Dimensions

  • (L x W x H): head Vertical
    • 19.4″ x 11.4″ x 30.5″  (49.4 cm x 29 cm x 77.4 cm)

Weight

  • 65lbs  (29.5kg)
