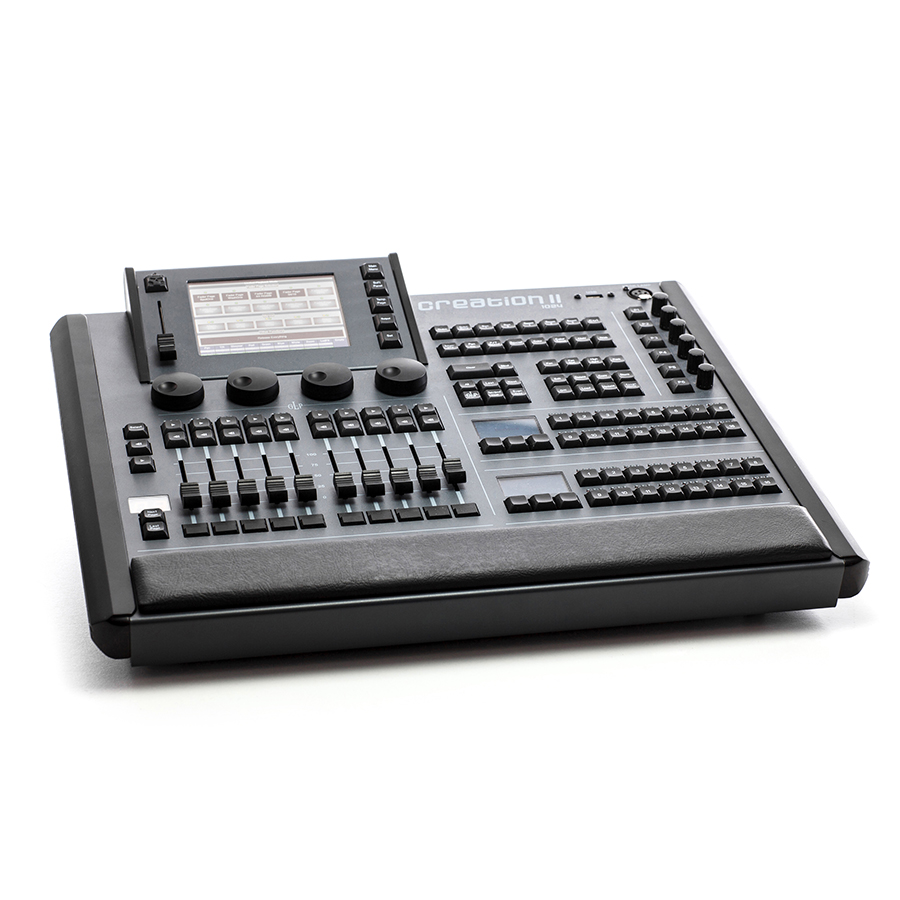

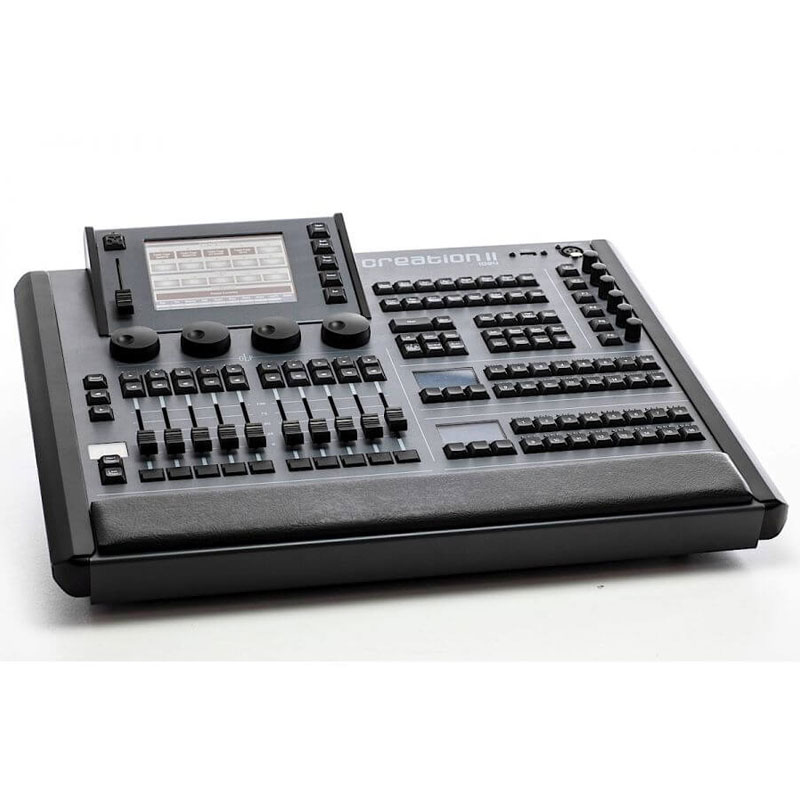

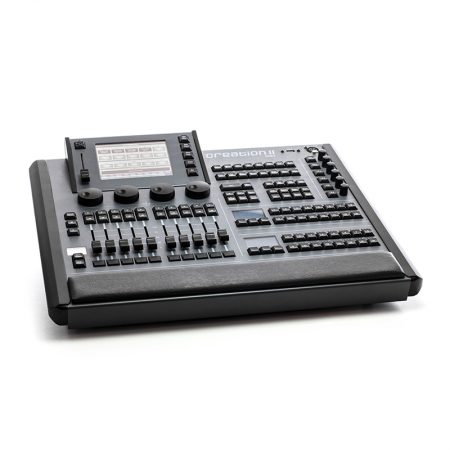

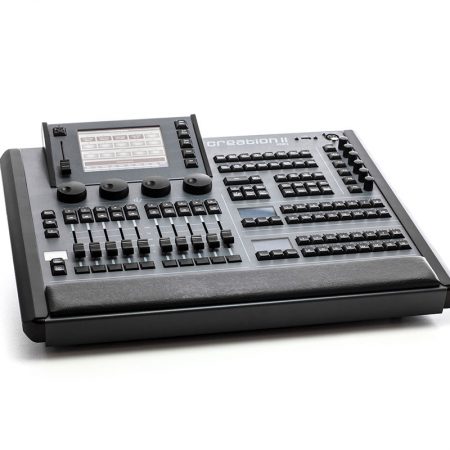

The Creation II – 1024 is the second lighting controller in GLP’s Creation II Series. The Creation II 1024 is at home controlling productions of up to 800 fixtures with ease, and offers exceptional usability for both fixed and temporary installations.

Features, such as integrated media server functionality, multi console networking, a comprehensive effects generator, a powerful fanning engine, full HTP/LTP configuration, individual parameter timings, fixture cloning, a touch screen color picker, time-code input and output, and a multi-functional, user definable button and fader configuration, make it a flexible and powerful state of the art lighting control solution.

The Creation II 1024 controls up to 1024 channels over DMX and ArtNet. The console comes equipped with a comprehensive fixture library and a powerful fixture setup wizard, which makes fixture configuration simple and efficient. The integrated library editor allows you to add new fixtures or update existing ones at any time – even during the show. The Creation II 1024 also supports on the fly replacement of complete fixture types, which is particularly handy when an already programmed fixture of one brand needs to be replaced by another. All updates and backups are done simply via the built-in USB ports.

Presets now have the functionality of much more than just fixture parameters, such as colors and positions. The Creation II 1024 allows you to create effect presets or timing presets – timing can be stored with other parameters, or as a separate entity to be applied to any transition. As you would expect all cues referencing these presets are updated when you make any changes, no matter what information they are storing.

More flexibility is offered as standard with the control faders also being configurable by the user to match their preferred setup. Whether it be as intensity submasters for fixture groups, effect or cue list controls, or even master speed timing control, the choice is yours.

As for the hardware, the Creation II 1024 is based on a fanless industrial single board computer, which runs from a solid state disk. Together with the auto sensing fanless power supply, we eliminated any mechanical parts inside the console, greatly increasing the robustness and reliability of the hardware. In combination with our embedded Linux operating system, which has a boot time of less than 60 seconds, the console delivers maximum stability and reliability. The combination of the comprehensive feature set, the compact hardware design and a sensible market based price, make the Creation II 1024 an excellent choice for all shows and venues with up to 320 lighting fixtures, with a maximum of 1024 channels over DMX and ArtNet. Despite its smaller size, the Creation II 1024 makes it up in powerful functionality, introducing areas such as the multi-function button panel which gives full flexibility without needing to invest in additional hardware.

2 operation panels are included in the standard desk configuration with each of these panels having 16 memory buttons, along with a graphical status display. Using the control section, you can reconfigure the behavior of each of the 2 operation panels at any time. You can individually choose options such as fixture and group selection, playback of cue lists, effects activation, preset recall or even macro playback, and many more. This easy and fast re-configuration makes it possible to quickly adapt the consoles‘ user interface to any demands during the show. It doesn’t matter whether you enjoy having dozens of extra buttons for programming or if you prefer having up to 32 additional cue lists at your fingertips when it comes to showtime – any configuration can be achieved within seconds.

Extended functionality comes to the Creation II series through its growing range of outboard extension wings. These wings can either be connected to a Creation II console for added functionality, or connected to a computer running the OnPC version of Creation II, turning your PC into a fully functioning lighting console.

Extension wings include the Button Panel wing which features 2 complete button panels, as featured on the Creation 1024 with LED displays, and the Fader Panel which features 10 high precision faders, with fader and page control buttons giving an extended number of playback faders if needed.

  • Embedded Linux operating system
  • Fast boot time of less than 60 seconds
  • Dedicated media server section
  • Comprehensive effects generator
  • Full ArtNet compatibility
  • Built-in library editor
  • Extensive fixture library
  • Multi console networking
  • Total flexibility of HTP as well as LTP controls
  • User definable fader and button setup
  • 16 bit operation
  • Comprehensive list of connectivity options
  • Highly intuitive operation
  • Highly reliable industrial hardware
  • Affordably priced





Contact us for more information on the Creation II – 1024
Want to stay up to date with the latest from GLP?
Click the link here to sign up for GLP’s mailing lists



Connectivity

  • 4 x DMX output (fully isolated, 5 pin XLR, RDM ready)
  • 1 x DMX input (fully isolated, 5 pin XLR)
  • 1 x gigabit ethernet through ethercon connector
  • 1 x external DVI monitor port (up to 1920 X 1200)
  • 2 x USB 2.0 port
  • Support for USB mouse/keyboard/touchscreen
  • Midi in/out/thru
  • Audio input (fully isolated, 6.3 mm Jack)
  • SMPTE input (3 pin XLR)
  • 6 x switch input (9 pin sub-d)
  • Powercon input for auto-ranging power input (100-240V, 50/60 Hz)



Hardware Specifications

  • Internal 5.7″ full color touchscreen
  • 4 x bourns high endurance encoders
  • 11 x ALPS faders
  • 10 x genuine digitast flash buttons
  • 5 x internal graphic LCD screen
  • 189 x cherry buttons with tactile feedback
  • 295 x colored status LEDs
  • Industrial single board computer
  • Single level cell industrial grade solid state disk
  • Completely fanless design
  • Weight: 35.3 lbs. / 16 kg
  •



Software Specification:

  • Based on custom built embedded Linux
  • 4096 DMX channels sent ArtNet and 2048 channels sent by DMX
  • Internal 32-bit high precision computation
  • Easy show setup
  • Powerful fixture library
  • Editor including virtual dimmer/shutter functions
  • Easy fixture setup and patching
  • Function based storage enabling subsequent repatch or even replacement of fixtures
  • Fully selective programming concept including selective presets, cuelists and effects
  • Powerful fanning engine (grouping/buddying)
  • Dedicated media server section
  • Powerful networking options including full tracking backup and multi user modes
  • Linking of cues on effects, cuelists and scenes powerful cuelist options including tracking, HTP/LTP, looping and a lot more
  • No limitation on the number or type (HTP/LTP) of simultaneously running memories
  • Powerful and comprehensive effects generator, which operates on any parameter virtually unlimited number of fader pages
  • Template page functionality
  • Fader can be connected dynamically to almost any function including cuelist, effects, submaster and more group sub-selection (even, odd, first/next, previous, x‘th out of y)
  • Standard keypad for fast programming
  • Live programming
  • Backup to USB memory sticks
  • Software update via USB memory sticks, network or internet



Dimensions

  • (L x W x H)
    • 27 in. x 17.7 in. x 5.3 in. (68.5 cm x 45 cm x 13.5 cm)
  • Tourpack (L x W x H)
    • 35.5 in. x 23 in. x 8.5 in. (90.1 cm x 58.4 cm x 21.6 cm)
